Technical Data
| Items | MC-2535 | MC-4070 | MC-5080 |
| Cutting Capacity (mm) | H:250 D:350 | H:400 D:700 | H:500 D:800 |
| L:1000~6000 | L:1000~6000 | L:1000-6000 | |
| Blade Size (mm) | 34×1.1 | 41×1.3 | 41×1.3 |
| Blade Speed (m/min) | 30/45/75 | 30/45/75 | 30/4575 |
| Motor Main (KW) | 3. 0(kw) | 5. 5(kw) | 7.5(kw) |
| Coolant Pump (KW) | 0.06(kw) | 0.06(kw) | 6(kw) |
Product introduction

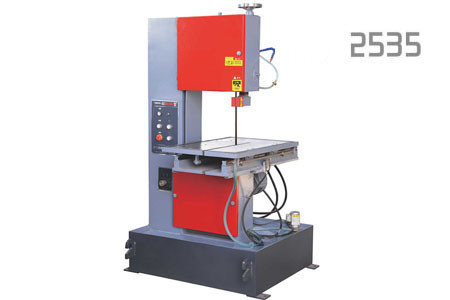

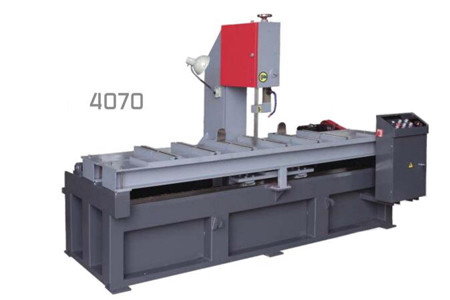

Vertical Metal Band Sawing Machine MC Series Product Introduction :
Product detail:
This vertical metal sawing machine tool is mainly suitable for sawing small-sized steel plates, bars, etc. It has the advantages of narrow sawing, material saving, energy saving, high sawing precision, convenient operation and high production efficiency. The worktable is driven by a hydraulic cylinder to realize the feeding and retracting actions.
Accessories
Standard Equipment:
- Working light
- One piece of bi-metal saw blade
- One set of tools with tool box
Optional Equipment:
- Hydraulic top pack
- Automatic chip conveyor
- Inverter
- PLC control
- MC-Series can be designed according to customer’s required
cutting size
- Hydraulic blade tension
- Saw guide elevation is hydraulically operated
- Laser projector
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
