Technical Data
| Technical Specification | Machine Model: CL-712R |
| Circular @ 90° | 178mm(7”) |
| Rectangular @90° | 178x210mm(7”x8.25”) |
| Circular @45° | 127mm(5”) |
| Rectangular @45° | 85x140mm (3.33”x5.5”) |
| Blade speed @60Hz | 27,41,59,78 MPM |
| Blade speed @50Hz | 22,34,49,64 MPM |
| Blade size | 20×0.9x2362mm |
| Motor power | 750W 1HP(3PH), 1.1KW 1.5HP(1PH) |
| Drive | V-belt |
| Packing size | 129x73x115cm |
| N.W./G.W. | 185/238 kg |
Product Introduction
1.7” Round and 7”x8.25” Rectangular cutting capacity @90°
2.Miter bow head up to 45°
3.Belt drive to achieve 4 cutting speed
4.Coolant system for maximum cutting efficiency
5.Vertical cutting available (need extra table for vertical cutting)
6.Single phase for home use, and 3 phase for industrial workshop usage
7.Moves on wheels for portability.

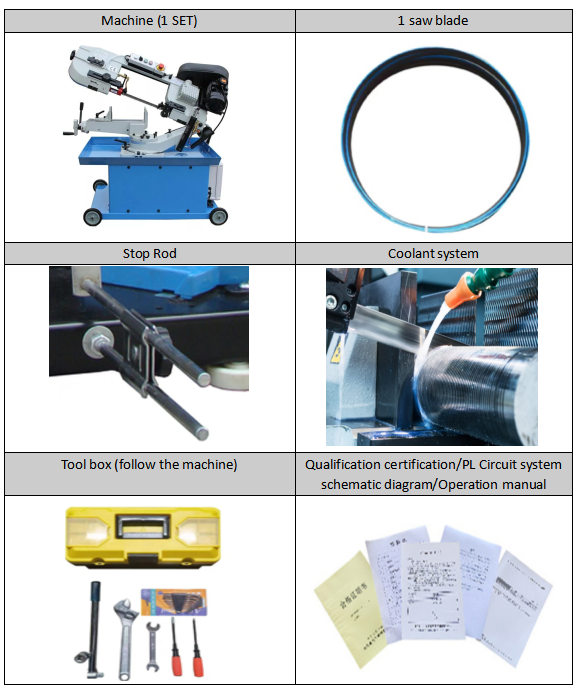

Accessories
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
Our Parnter
