Technical Data
| Technical Specification | Machine Model: CL-460G |
| Circular @ 90° | 330mm (13″) |
| Rectangular @ 90° | 460x250mm (18″x9.8″) |
| Circular @ 60° (right) | 205mm (8″) |
| Rectangular @ 60° (right) | 205x250mm (8″x9.8″) |
| Circular @ 45° (Left & right) | 305mm (12″) |
| Rectangular @ 45° (Left & right) | 305x250mm (12″x9.8″) |
| Blade Speed @50HZ | 40/80 MPM |
| Blade Speed @60HZ | 48/96 MPM |
| Blade Size | 27×0.9x3960mm |
| Motor | 1.5/2.2 kW |
| Drive | Gear |
| Packing Size | 2310x1070x1630 MM |
| N.W./G.W. | 750/830 kg |
Product Introduction
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
1. Two speed motor, two speed selection;
2. Hydraulic clamping vice
3.CE safety standards (interlock switch on blade cover)
The main performance characteristics：
1. Saw bow or so gyration;
2. Electric cooling system;
3. Saw bow rotary shaft use a conical bearing, to maintain the accuracy of sawing;
4. Saw blade off discon machine automatically cut off power, protect the safety of the operator
5.Safety switch on blade tensioning device
6.Carbide blade guides and double blade guide bearings

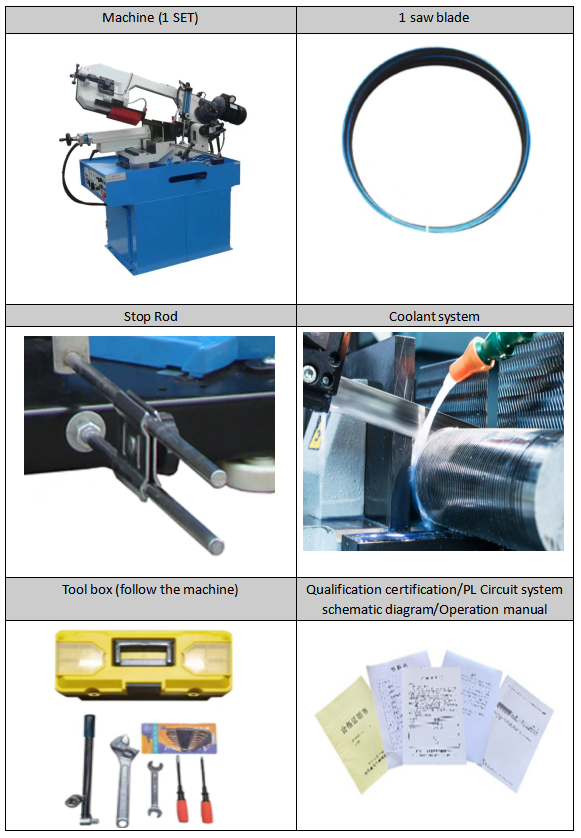

Accessories
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
