Technical Data
| Technical Specification | Machine Model: CL-215G |
| Cut Circular @90° | 150mm(6”) |
| Cut Rectangular @90° | 200x120mm (7.8”x4.7”) |
| Cut Circular @45° | 120mm(4.7”) |
| Cut Rectangular @45° | 130x90mm (5”x3.5”) |
| Blade speed @50Hz | 40/80 MPM |
| Blade size | 20X0.9X2060mm |
| Motor power | 0.6/0.85kW 0.8/1.1HP (3PH) |
| Drive | Gear |
| Packing size | 116x71x79 cm (body) |
| 61x39x67 cm (stand) | |
| N.W./G.W. | 212/245 kg |
Product Introduction
1. CE standard bandsaw, max cutting 6” at 90°
2. Cast iron saw frame miter max 45°
3. Quick action lock/release lever for swivel head
4. Coolant system to help clean chips on blade and lubrication the teeth
5. Electronic trigger handle lets you easily turn the saw on and off. Also for manual descent
6. Control panel mounted for easy access

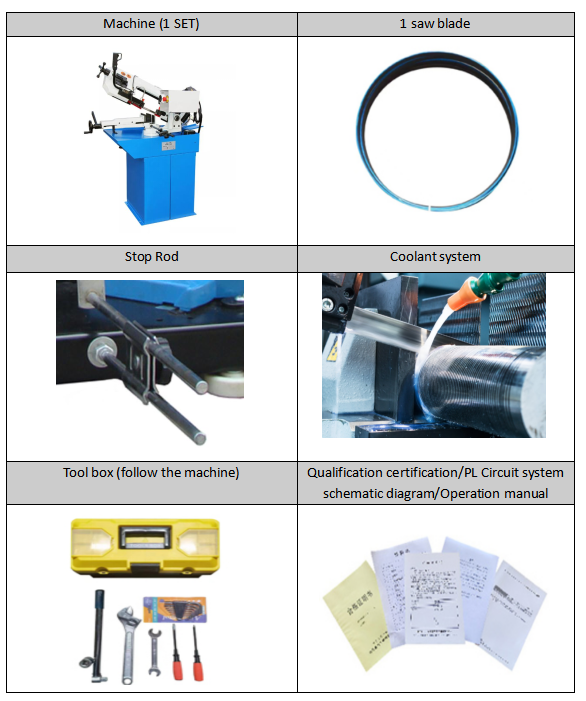

Accessories
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
