Technical Data
| Technical Specification | CL-180G |
| Cut Circular @90° | 180mm(7”) |
| Cut Rectangular @90° | 260x180mm (10”x7”) |
| Cut Circular @45° | 105mm(4”) |
| Cut Rectangular @45° | 120x105mm (4.75”x4”) |
| Blade speed @50Hz | 39, 66, 82 MPM |
| Blade speed @60Hz | 34, 55, 66 MPM |
| Blade size | 20X0.9X2362mm |
| Motor power | 0.75/1.1kw 1/1.5HP(3PH) |
| Drive | Gear |
| Packing size | 130x56x112 cm |
| N.W./G.W. | 175/222 kg |
Product Introduction
1. CE standard metal cutting bandsaw
2. 180mm round and 260×180 rectangular cutting capacity at 90°
3. Gear drive, 3 cutting speed
4. Miter saw bow, max to 45°
5. Saw bow swivel not need to move heavy material on table.
6. Wheels on the stand make the saw easy to move different workplace

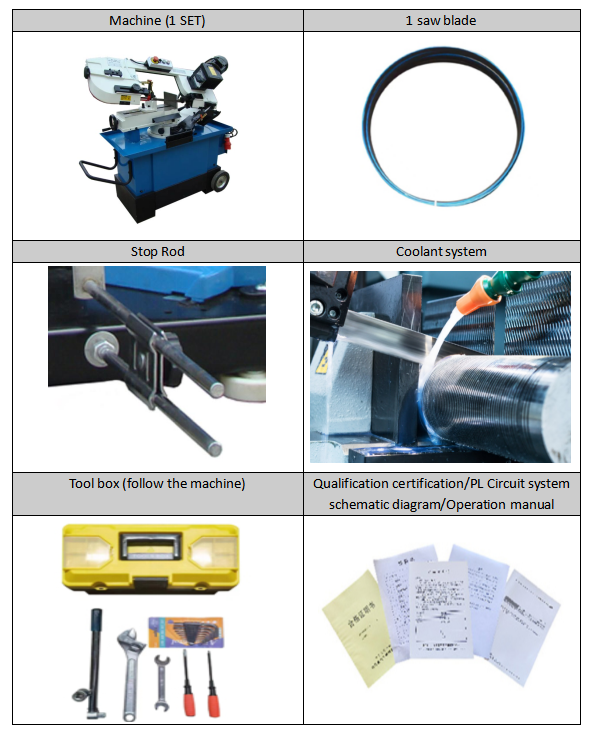

Accessories
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
