Technical Data
| Technical Specification | CL-170G |
| Cut Circular @90° | 170mm(6.7”) |
| Cut Rectangular @90° | 200x170mm (7.8”x6.7”) |
| Cut Circular @60° | 70mm(2.7”) |
| Cut Rectangular @60° | 60x60mm (2.3”x2.3”) |
| Cut Circular @45° | 120mm(4.7”) |
| Cut Rectangular @45° | 110x110mm (4.3”x4.3”) |
| Blade speed @50Hz | 2P,80MPM 262FPM |
| Blade speed @60Hz | 4P,40MPM 131FPM |
| Blade size | 20X0.9X2085mm |
| Motor power | 0.75/1.1kw 1/1.5HP(3PH) |
| Drive | Gear |
| Packing size | 122x72x100cm |
| N.W./G.W. | 173/225kg |
Product Introduction
1. 170mm round cutting capacity, 200x170mm rectangular cutting at 90°
2. Gear drive powerful cutting bandsaw
3. Casting iron saw bow miter max. 60°
4. Stop rod to help you get the repeatable cutting
5. Standard coolant system to make blade use longer time

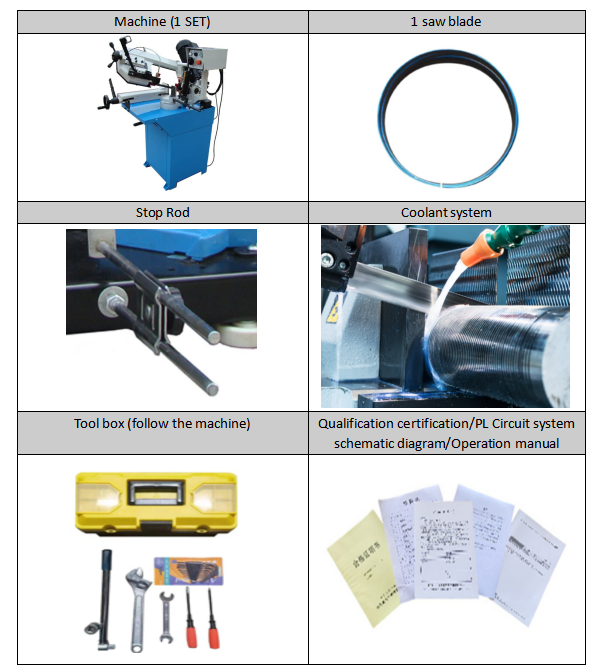

Accessories
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
