Description
Welding robot arm CLW1500 is dedicated to welding. It is a robot developed for more adverse field environment of the customers . This product has a higher floor space and stabler construction; moreover, there is a fully enclosed axis to effectively prevent welding spatters from damaging cables of the robot.
Main Applications
01
Automobile
02
Metal doors &windows
03
Engineering Machinery
01
Mining Machinery
01
Locomotives
01
Electrical Appliances
01
Furniture and Other industries
Character

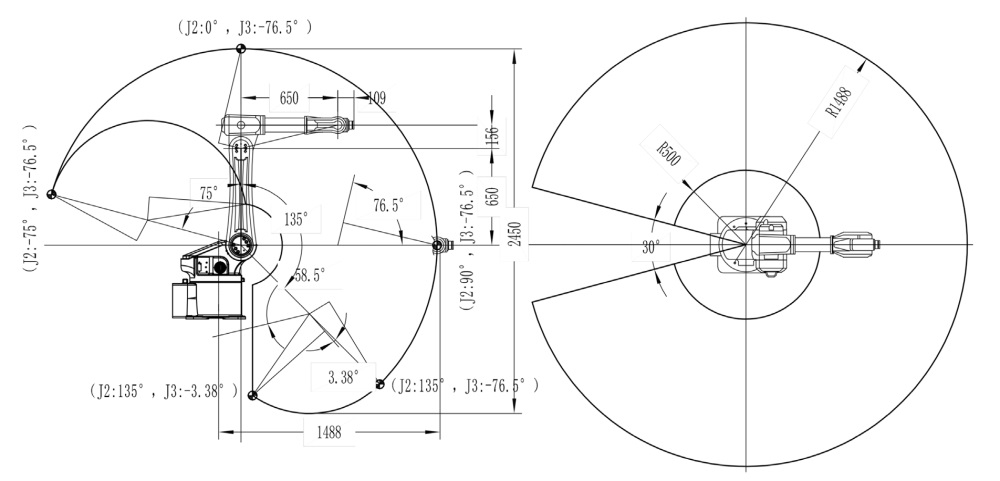

Robot Motion Range

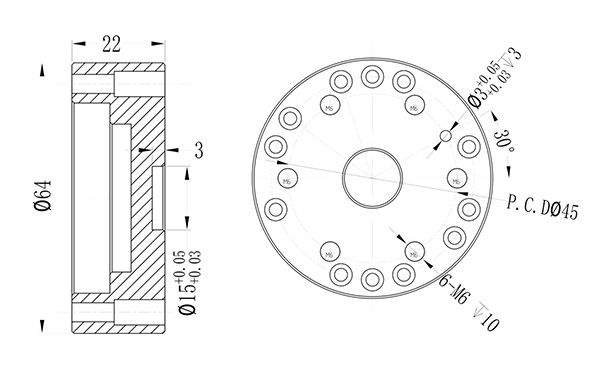

Robot Flange Connection

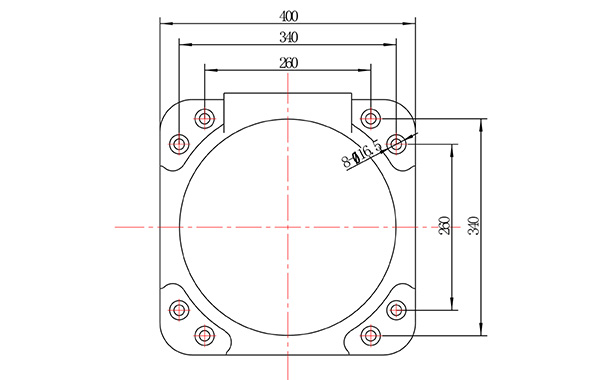

Robot Base Installation
Technical Data
| Payload | 6KG | |
| Reach | 1500mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.05mm | |
| Max. motion range | Axis 1 | ±165° |
| Axis 2 | +135°/-70° | |
| Axis 3 | +85°/-85° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 360°/sec | |
| Weight | =150kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
