Description
Scara robot arm CLS450 is a small horizontal joint robot, with flexible and fast in the horizontal direction, high rigidity in the vertical direction, small footprint, high cost performance characteristics, widely used in rapid sorting, precision assembly and other 3C industry, food industry and other fields, such as the chemical industry for material sorting and palleting
Main Applications
01
Materials handling
02
Parts transmission
03
Stacking and dispensing
Character

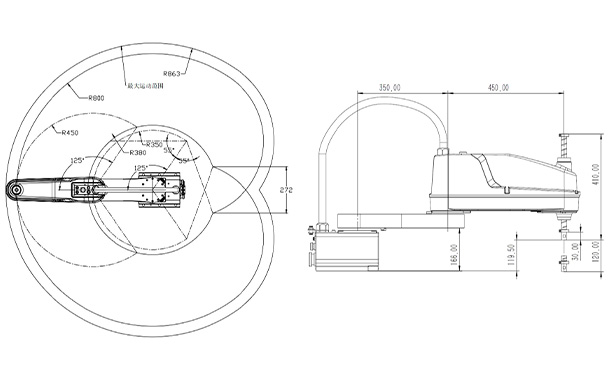

Robot Motion Range

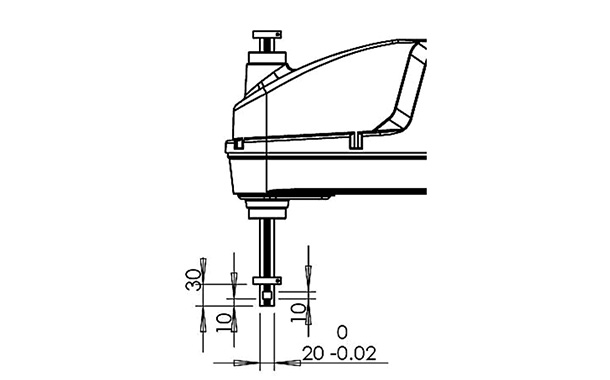

Robot Flange Connection

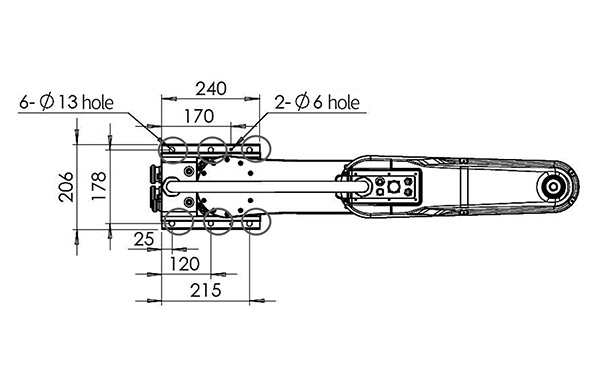

Robot Base Installation
Technical Data
| Payload | 8KG | |
| Reach | 800mm | |
| Position detection | Absolute value servo | |
| Supply voltage | 220V 50/60HZ | |
| Mounting type | Horizontal | |
| Body weight | 29KG | |
| Max.motion range | Axis 1 | ±125° |
| Axis 2 | ±145° | |
| Axis 3 | ±360° | |
| Axis 4 | +100/-80mm | |
| Max.speed(rated state) | Axis 1 | 360/s |
| Axis 2 | 360/s | |
| Axis 3 | 720°/s | |
| Axis 4 | 800mm/s | |
| Repeatability | ±0.03mm | |
| Max.input of air pipe value | Positive pressure | 8kg/cm2 |
| Negative pressure | 1kg/cm2 | |
| Ambient temperature | 5℃~45℃ | |
| Ambient humidity | Within 10%～80%(no condensation) | |
| Arm weight (excluding electric cabinet and extension cable) | ≈20KG | |
| 1/O line of arm body | 0.2*5 core | |
| Tracheal interface of arm body | 6*2 | |
