Description
Painting robot arm CLP1950 is a painting robot produced by company. Featuring dust-proof, waterproof and certain advantages in motion range, it is generally used in applications with adverse painting environment and helps improve the employment and working environment of an enterprise significantly.
Main Applications
01
Painting
Character

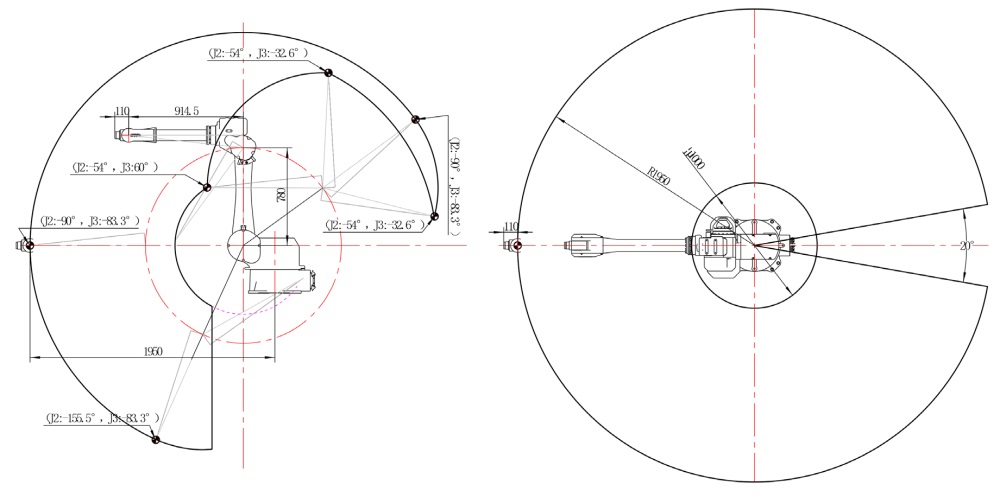

Robot Motion Range

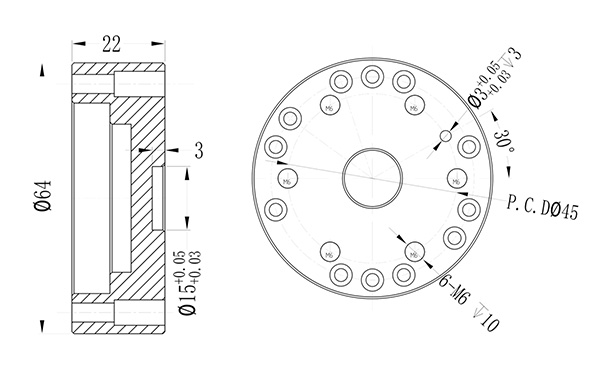

Robot Flange Connection

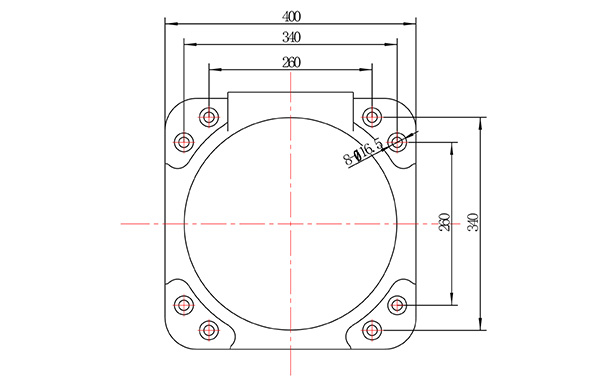

Robot Base Installation
Technical Data
| Payload | 6KG | |
| Reach | 1950mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.08mm | |
| Max. motion range | Axis 1 | ±165° |
| Axis 2 | +135°/-70° | |
| Axis 3 | +60°/-75° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 360°/sec | |
| Weight | =170kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
