Description
Painting robot arm CLP1500 is the earliest painting robot launched by the company. With a payload of 6 kg and a reach of 1500 mm, it is generally integrated with various non-standard turntables or hanging equipment to form work stations.
Main Applications
01
Painting
Character

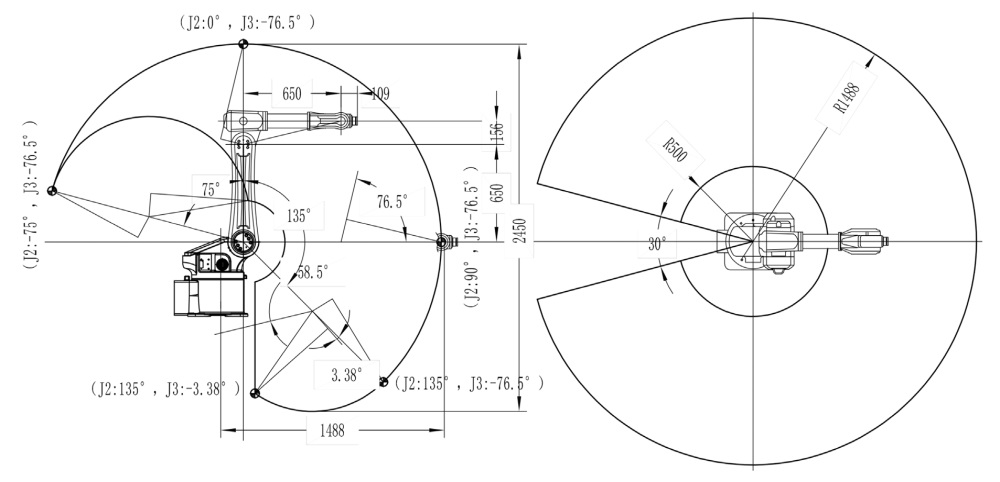

Robot Motion Range

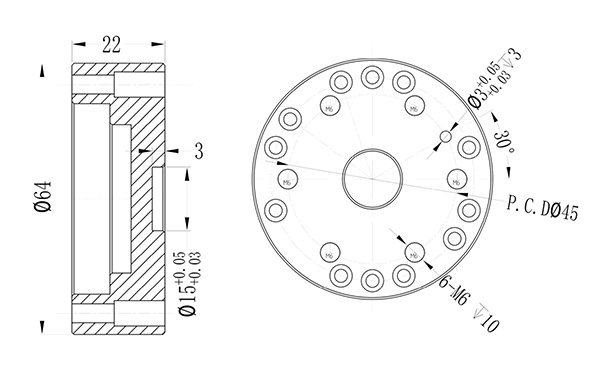

Robot Flange Connection

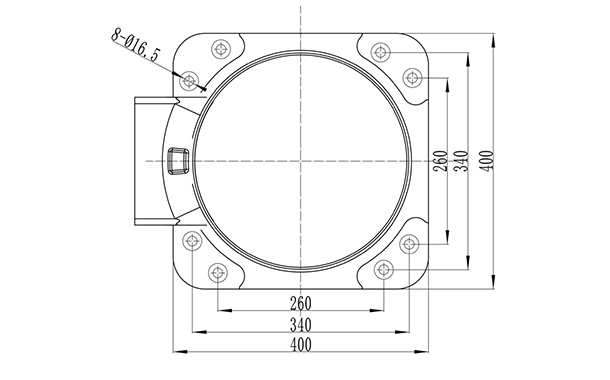

Robot Base Installation
Technical Data
| Payload | 6KG | |
| Reach | 1500mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.05mm | |
| Max. motion range | Axis 1 | ±165° |
| Axis 2 | +120°/-70° | |
| Axis 3 | +60°/-75° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 222°/sec | |
| Weight | =150kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
