Description
SMART-CLSA7 is a 30kg manipulator newly developed by our company, with a large range of motion.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Stacking
04
Deburring
05
cutting
Character

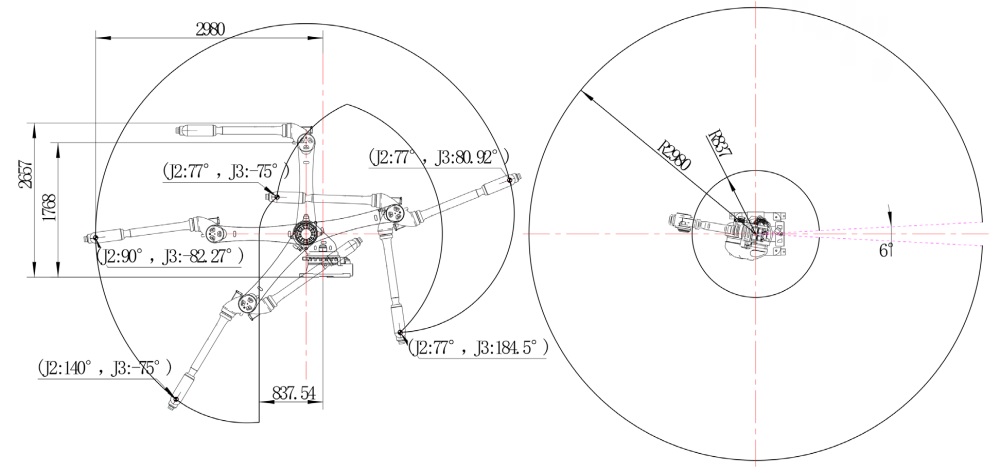

Robot Motion Range

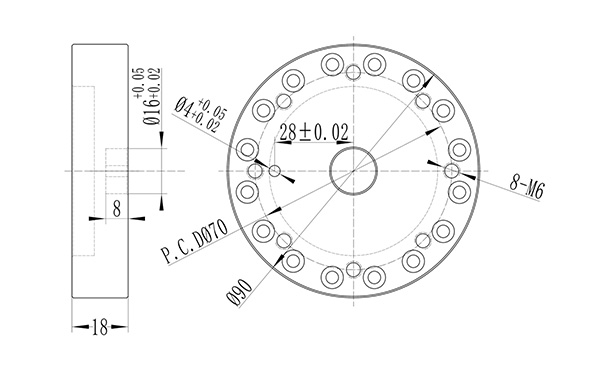

Robot Flange Connection

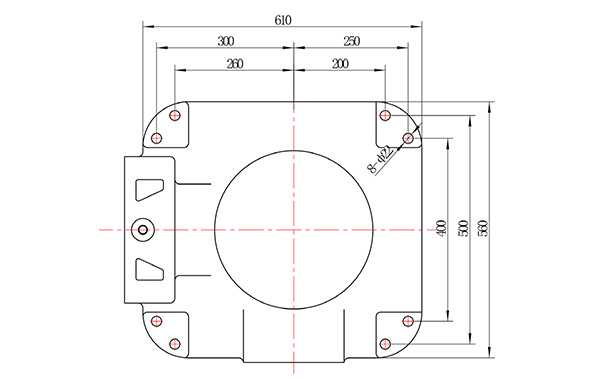

Robot Base Installation
Technical Data
| Payload | 30KG | |
| Reach | 2950mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.15mm | |
| Max. motion range | Axis 1 | ±175° |
| Axis 2 | +100°/-70° | |
| Axis 3 | +60°/-75° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 60°/sec |
| Axis 2 | 180°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 222°/sec | |
| Weight | =700kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
