Description
SMART-CLSA 6 is a 30kg manipulator newly developed by our company, with high body rigidity and certain load redundancy. The picture on the right shows the integrated polishing and perforation scheme provided by the company for a customer, which greatly considers the variety of products on the customer’s site.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Deburring
05
cutting
Character

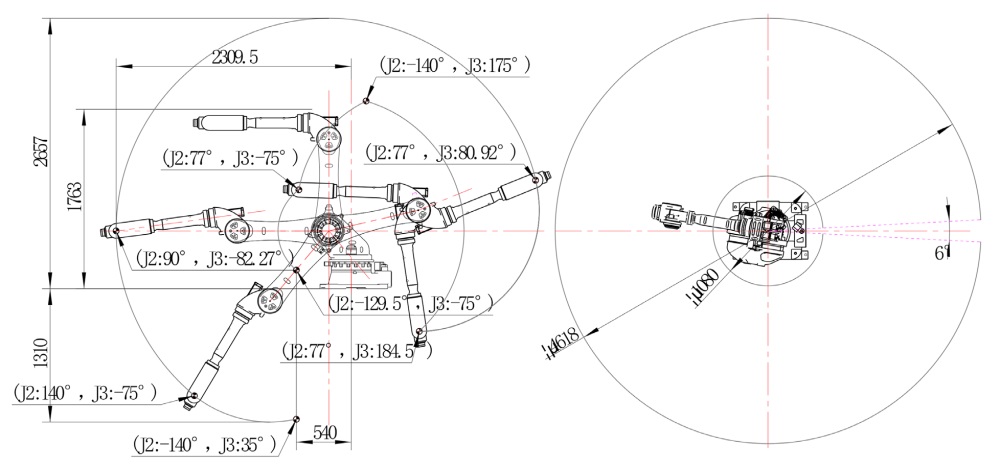

Robot Motion Range

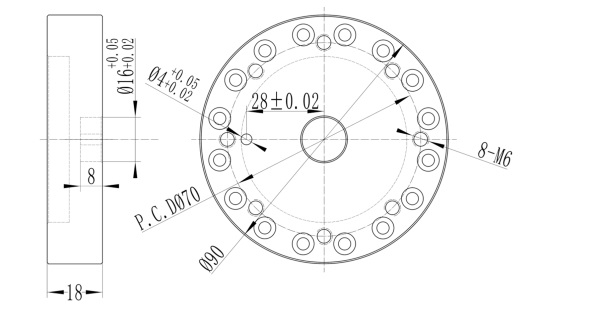

Robot Flange Connection

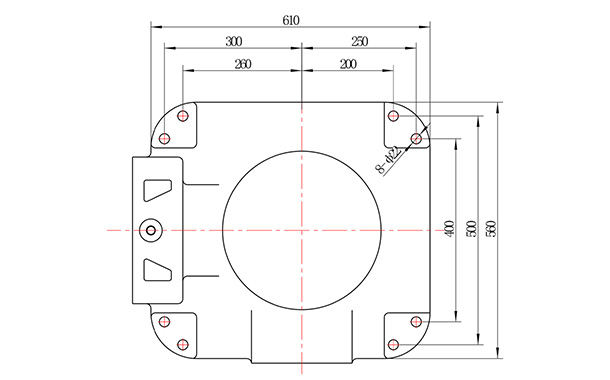

Robot Base Installation
Technical Data
| Payload | 30KG | |
| Reach | 2300mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.15mm | |
| Max. motion range | Axis 1 | ±175° |
| Axis 2 | +120°/-70° | |
| Axis 3 | +60°/-75° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 60°/sec |
| Axis 2 | 180°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 222°/sec | |
| Weight | =700kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
