Description
SMART-CLSA5 robot has a load of 50kg, which is the sixaxis joint robot with the largest load. customer using this type of robot to load and unload heavier cables.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Deburring
05
cutting
Character

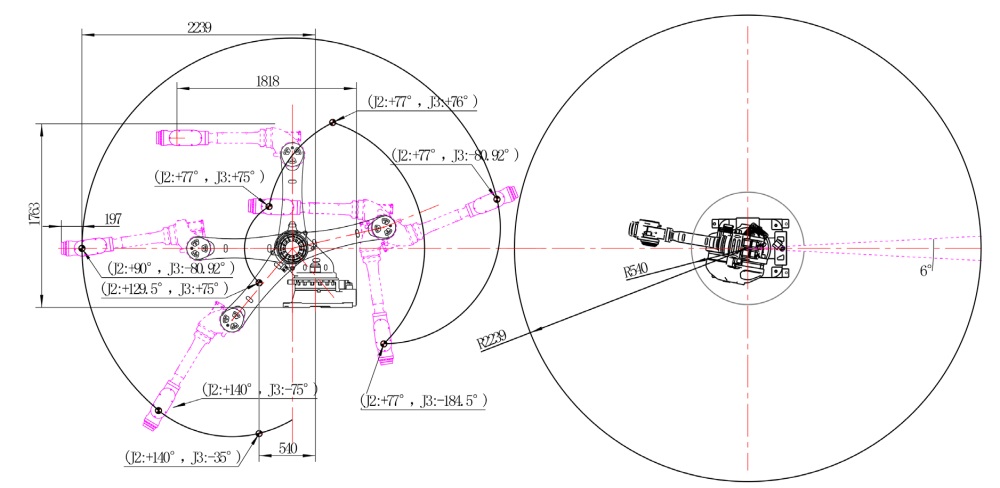

Robot Motion Range

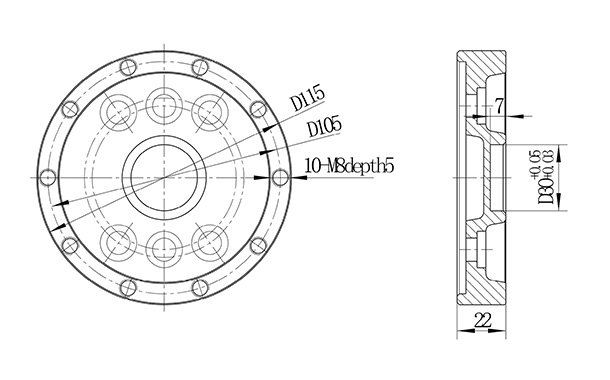

Robot Flange Connection

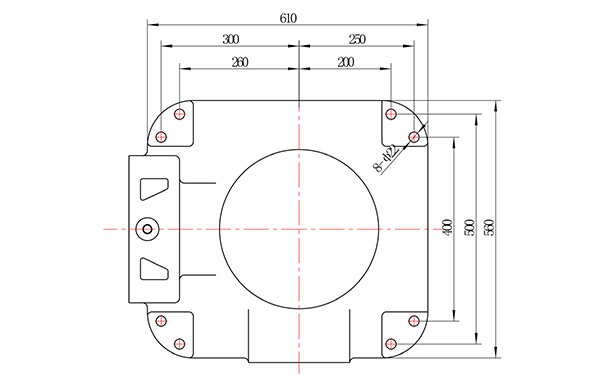

Robot Base Installation
Technical Data
| Payload | 50KG | |
| Reach | 2100mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.1mm | |
| Max. motion range | Axis 1 | ±175° |
| Axis 2 | +120°/-70° | |
| Axis 3 | +60°/-75° | |
| Axis 4 | ±150° | |
| Axis 5 | +20°/-200° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 68°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 222°/sec | |
| Weight | =750kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
