Description
SMART-CLSA4 robot has a payload of 20 kg and is widely used in handling, painting, loading and unloading for machine tools, screw tightening, surface mounting and other applications . One 6-axis robot can work independently and efficiently in cellular manufacturing processes.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Electric Welding
05
Packaging
06
Testing
07
Stacking
08
Deburring
09
Gluing
10
Assembly
11
Grinding
Character

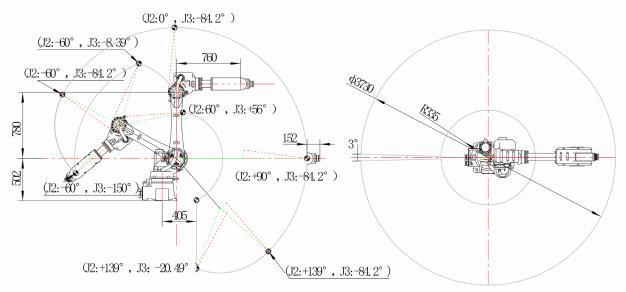

Robot Motion Range

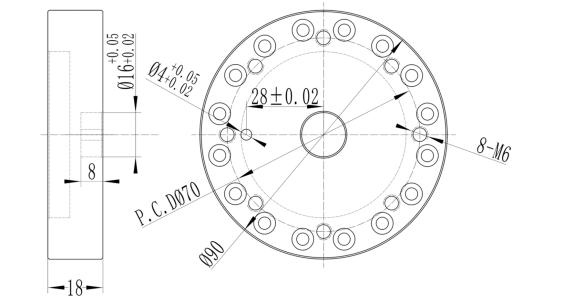

Robot Flange Connection

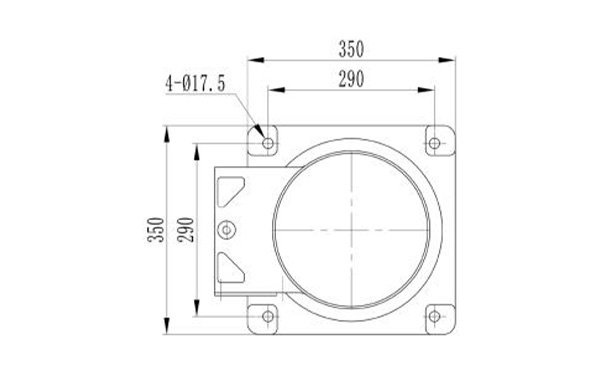

Robot Base Installation
Technical Data
| Payload | 20KG | |
| Reach | 1850mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.08mm | |
| Max. motion range | Axis 1 | ±170° |
| Axis 2 | +135°/-75° | |
| Axis 3 | +60°/-85° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 222°/sec | |
| Weight | =250kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
