Description
SMART-CLSA3 can be used in NC lathe automatic loading &unloading solution. Combined with the production line, one robot can manage two face-to-face NC machines, thereby significantly reducing labor cost and time cost and enhancing productivity of the customer.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Electric Welding
05
Packaging
06
Testing
07
Stacking
08
Deburring
09
Gluing
10
Assembly
11
Grinding
Character

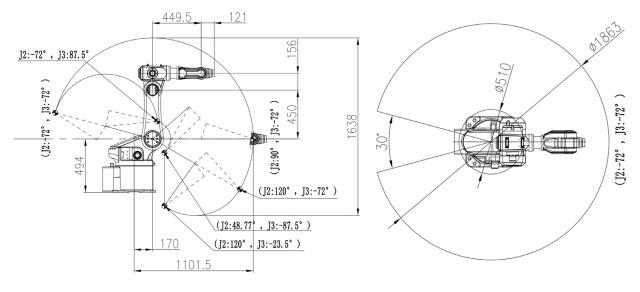

Robot Motion Range

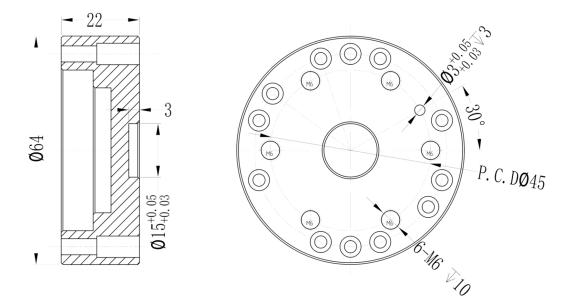

Robot Flange Connection

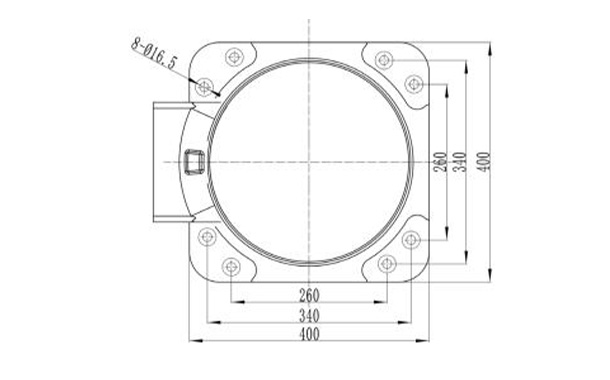

Robot Base Installation
Technical Data
| Payload | 10KG | |
| Reach | 1000mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.05mm | |
| Max. motion range | Axis 1 | ±165° |
| Axis 2 | +135°/-75° | |
| Axis 3 | +85°/-85° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-240° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 222°/sec | |
| Weight | =130kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
