Description
SMART-CLSA2 is a small robot with short working cycle, reliable operation and high cost performance . It has been tested in previous industrial applications, with outstanding performance, high added value and fast return on investment, which can help you greatly improve your production efficiency.Such as customer’s field application: used in the aging test laboratory.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Electric Welding
05
Packing
06
Testing
07
Gluing
08
Assembly
09
Grinding
Character

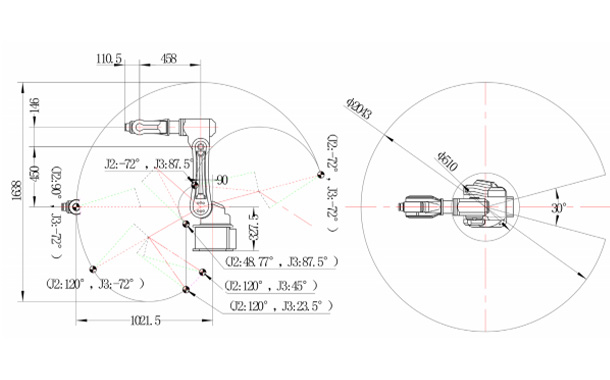

Robot Motion Range

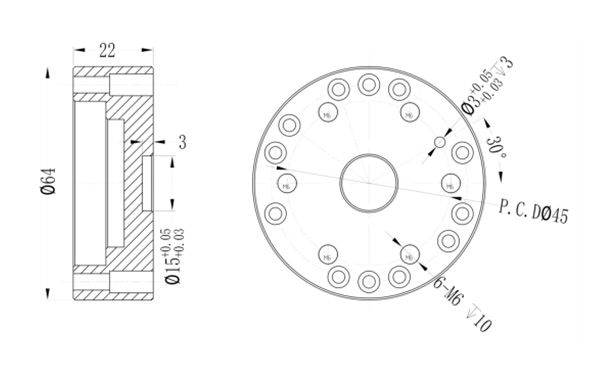

Robot Flange Connection

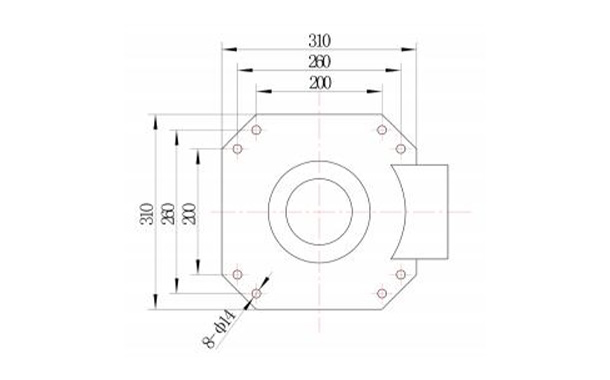

Robot Base Installation
Technical Data
| Payload | 3KG | |
| Reach | 950mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.05mm | |
| Max. motion range | Axis 1 | ±165° |
| Axis 2 | +135°/-75° | |
| Axis 3 | +85°/-85° | |
| Axis 4 | ±150° | |
| Axis 5 | +30°/-230° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 360°/sec | |
| Weight | =86kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
