Description
Handling robot arm CLH3100 with a 165 kg payload is a heavy-duty palletizing robot widely used in casting shops, production line palletizing and various other applications.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Stacking
05
Cutting
06
Deburring
Character

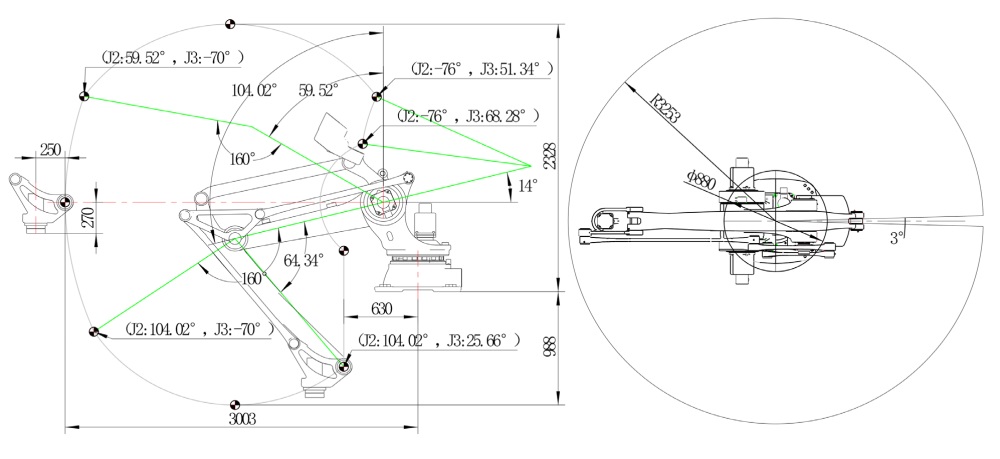

Robot Motion Range

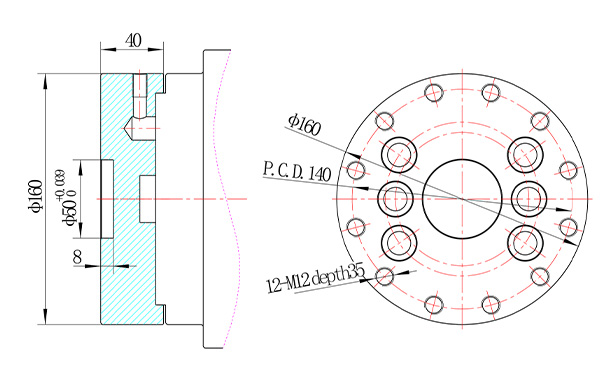

Robot Flange Connection

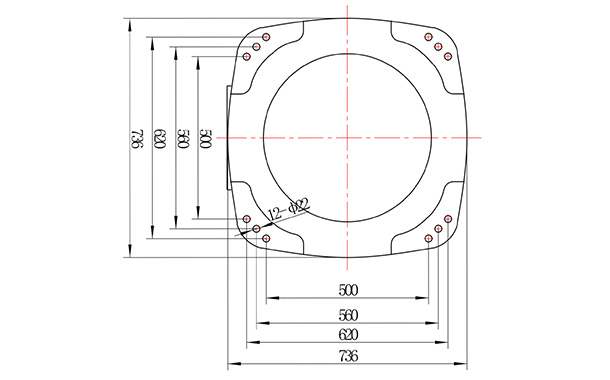

Robot Base Installation
Technical Data
| Payload | 165KG | |
| Reach | 3100mm | |
| Structure | Articulated | |
| Number of axes | 4 | |
| Repeatability | ±0.2mm | |
| Max. motion range | Axis 1 | ±175° |
| Axis 2 | +80°/-25° | |
| Axis 3 | +80°/-25° | |
| Axis 4 | ±360° | |
| Axis 5 | – | |
| Axis 6 | – | |
| Max. speed | Axis 1 | 60°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 148°/sec | |
| Axis 5 | – | |
| Axis 6 | – | |
| Weight | =1600kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
