Description
Handling robot arm CLH2100 has a load of 100kg. It is a heavy-duty palletizing robot, which is widely used in various chemical loading and unloading, assembly line palletizing and other occasions
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Stacking
05
Cutting
06
Deburring
Character

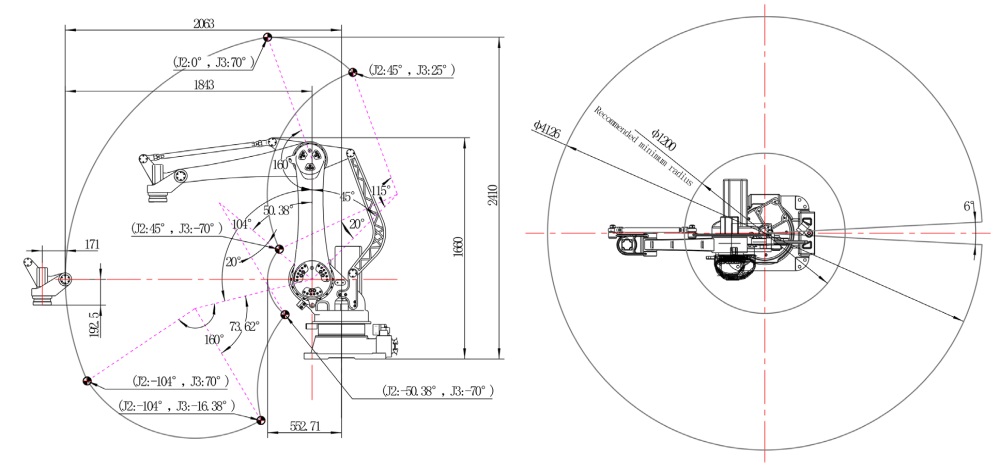

Robot Motion Range

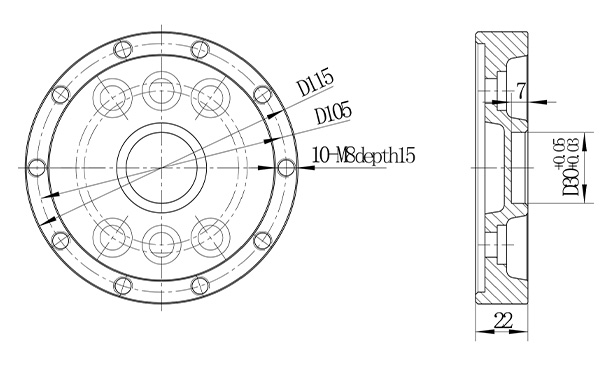

Robot Flange Connection

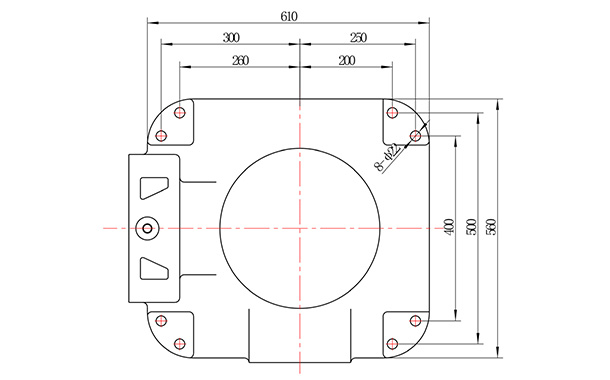

Robot Base Installation
Technical Data
| Payload | 100KG | |
| Reach | 2100mm | |
| Structure | Articulated | |
| Number of axes | 4 | |
| Repeatability | ±0.2mm | |
| Max. motion range | Axis 1 | ±175° |
| Axis 2 | +80°/-25° | |
| Axis 3 | +80°/-25° | |
| Axis 4 | ±360° | |
| Axis 5 | – | |
| Axis 6 | – | |
| Max. speed | Axis 1 | 60°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 148°/sec | |
| Axis 5 | – | |
| Axis 6 | – | |
| Weight | =650kg | |
| Mounting type | Horizontal | |
| Ambienttemperature | 5°C~45℃ | |
