Description
Handling robot arm CLH1850 has a load of 30kg, which can be used for loading and unloading of a single press, or for loading and unloading of multiple presses to realize the assembly line stamping operation.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Stacking
05
Cutting
06
Deburring
Character

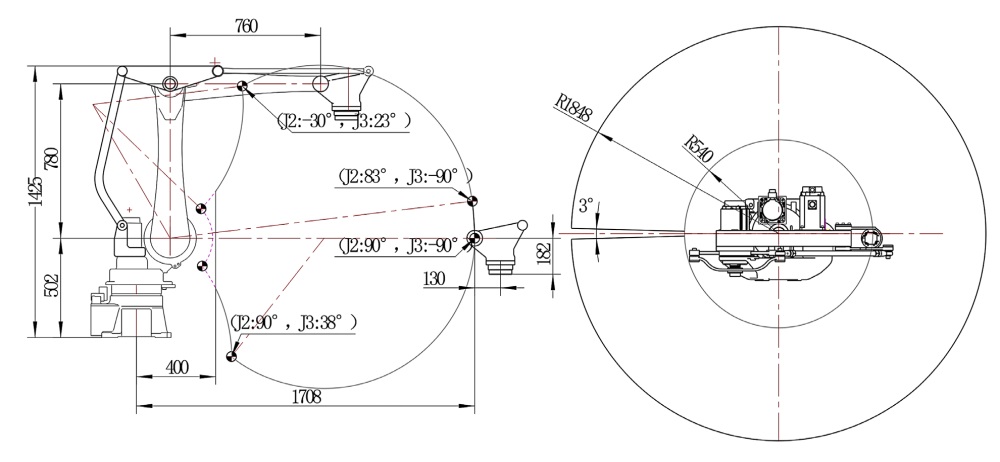

Robot Motion Range

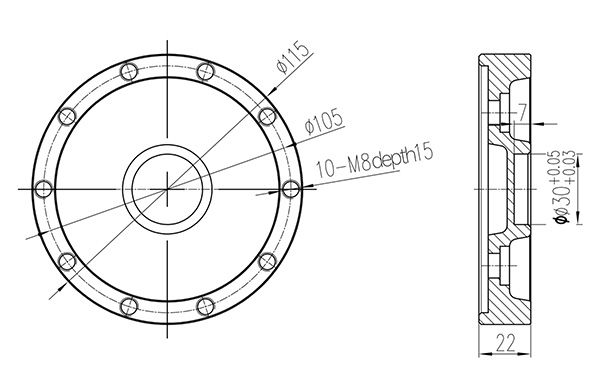

Robot Flange Connection

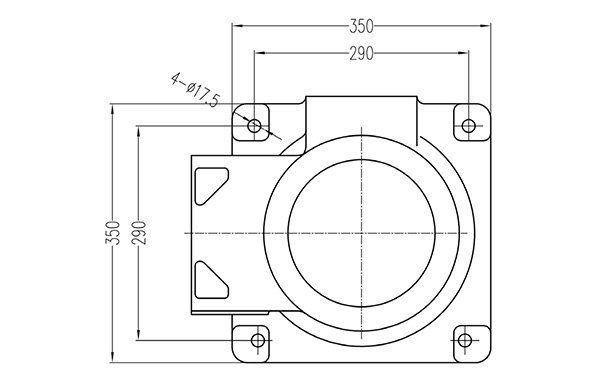

Robot Base Installation
Technical Data
| Payload | 30KG | |
| Reach | 1850mm | |
| Structure | Articulated | |
| Number of axes | 4 | |
| Repeatability | ±0.2mm | |
| Max. motion range | Axis 1 | ±170° |
| Axis 2 | +80°/-25° | |
| Axis 3 | +80°/-25° | |
| Axis 4 | ±360° | |
| Axis 5 | – | |
| Axis 6 | – | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | – | |
| Axis 6 | – | |
| Weight | =230kg | |
| Mounting type | Horizontal | |
| Ambienttemperature | 5°C~45℃ | |
