Description
Handling robot arm CLH 1000 is a 6kg light manipulator newly developed by our company, with a large range of motion.
Main Applications
01
Materials Handling
02
Parts Transfer
03
Machine Management
04
Stacking
05
Packaging
Character

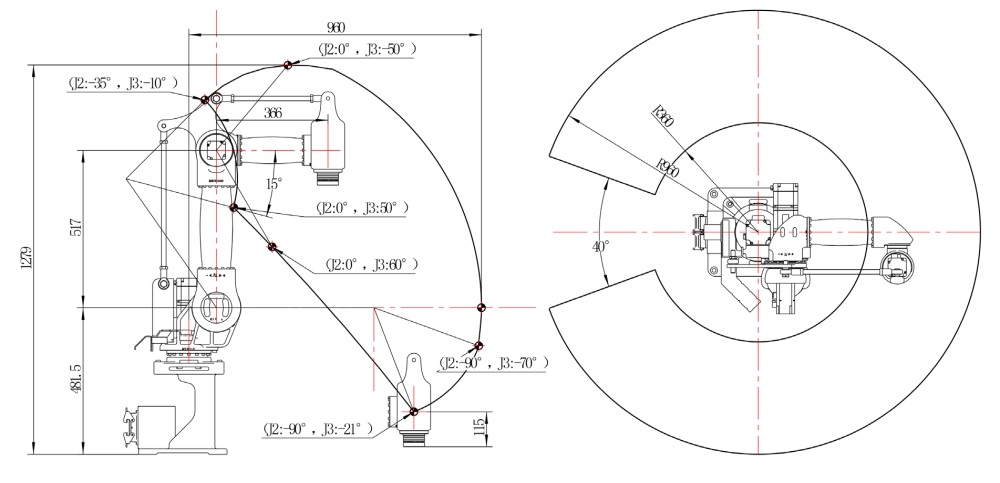

Robot Motion Range

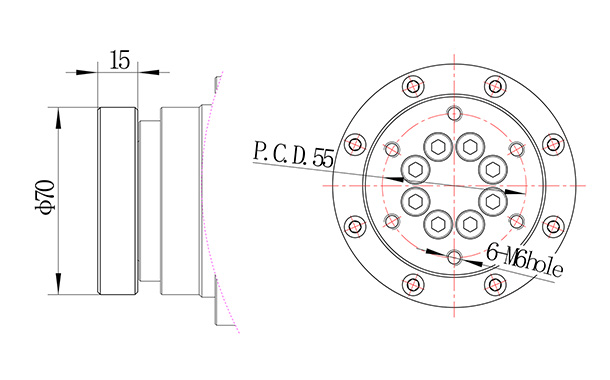

Robot Flange Connection

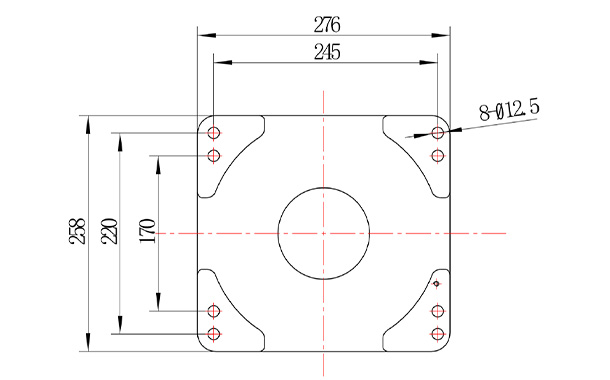

Robot Base Installation
Technical Data
| Payload | 6KG | |
| Reach | 1000mm | |
| Structure | Articulated | |
| Number of axes | 4 | |
| Repeatability | ±0.2mm | |
| Max. motion range | Axis 1 | ±165° |
| Axis 2 | +80°/-35° | |
| Axis 3 | +80°/-35° | |
| Axis 4 | ±360° | |
| Axis 5 | – | |
| Axis 6 | – | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 222°/sec | |
| Axis 4 | 360°/sec | |
| Axis 5 | – | |
| Axis 6 | – | |
| Weight | =60kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
