Description
Grinding robot arm CLG1400 is a 30kg manipulator newly developed by our company, with a large range of motion.
Main Applications
01
Grinding
02
Deburring
03
Polishing
Character

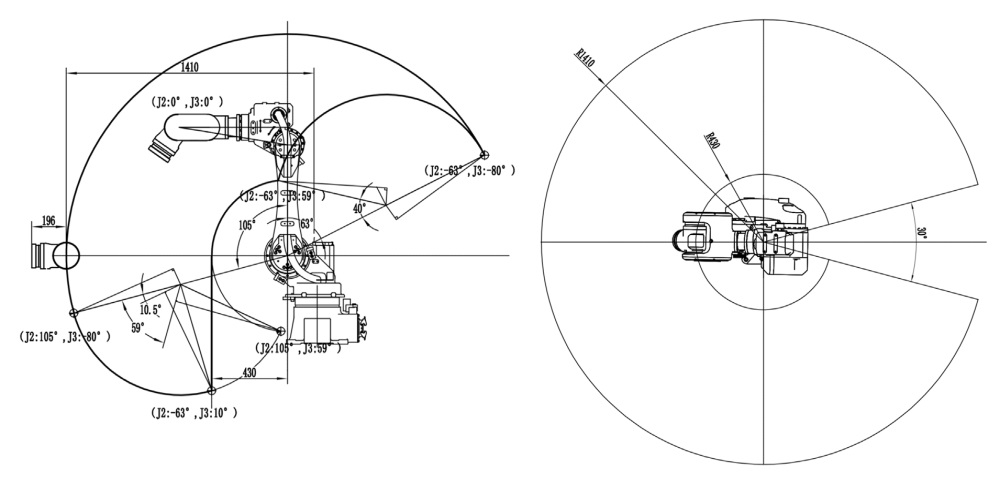

Robot Motion Range

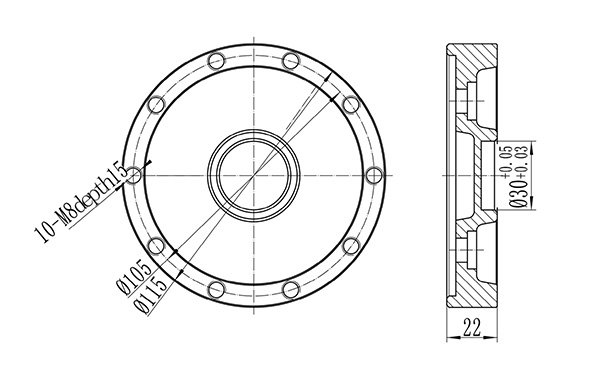

Robot Flange Connection
Robot Base Installation
Technical Data
| Payload | 30KG | |
| Reach | 1400mm | |
| Structure | Articulated | |
| Number of axes | 6 | |
| Repeatability | ±0.08mm | |
| Max. motion range | Axis 1 | ±170° |
| Axis 2 | +120°/-70° | |
| Axis 3 | +60°/-75° | |
| Axis 4 | ±150° | |
| Axis 5 | +80°/-220° | |
| Axis 6 | ±360° | |
| Max. speed | Axis 1 | 148°/sec |
| Axis 2 | 148°/sec | |
| Axis 3 | 148°/sec | |
| Axis 4 | 222°/sec | |
| Axis 5 | 222°/sec | |
| Axis 6 | 148°/sec | |
| Weight | =185kg | |
| Mounting type | Ground,bracket,ceiling | |
| Ambienttemperature | 5°C~45℃ | |
