Description
FOUR-AXIS COOPERATIVE ROBOTS ARM CLF600 is a one-piece four-axis robot with a 600mm arm span and a 3.5kg load. It is an automatic cup splitting equipment can be used by our clients to realize automatic nucleic acid detection, which can realize the functions of scanning, opening, pipetting, closing and coding plates of petri dishes. At the same time, it has the whole monitoring function. When the gun head is not plugged in and other abnormal conditions, it will stop the action and alarm.
Main Applications
01
Materials handling
02
Laser engraving
03
Sorting
04
3D printing
05
Labeling
06
Dispensing
Character

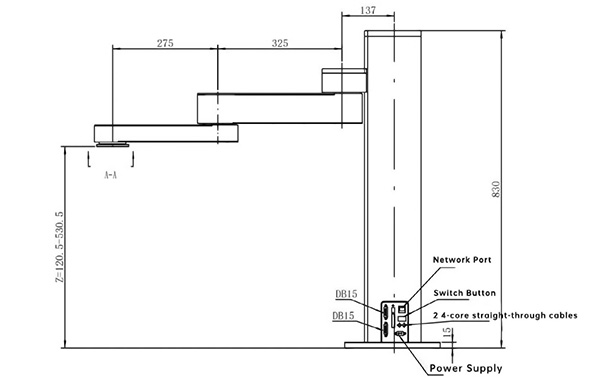

Robot Overall Dimensions

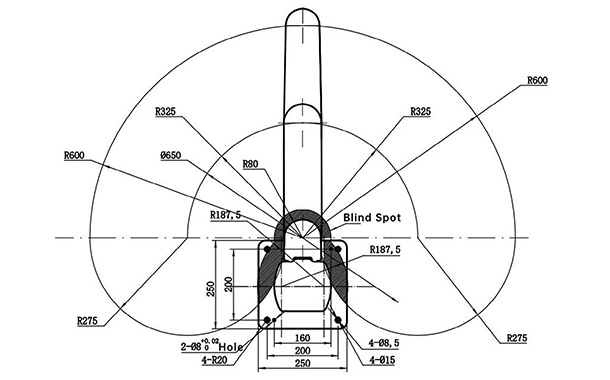

Robot Motion Range

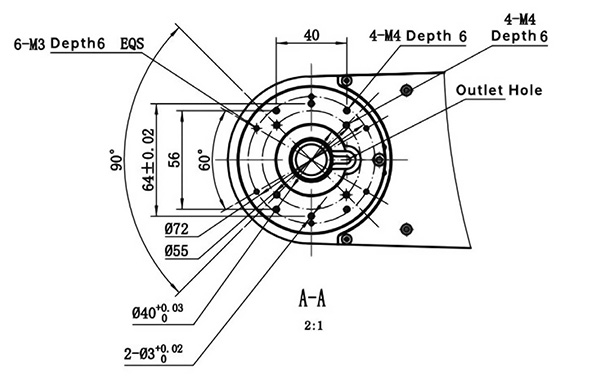

Robot End Flange
Technical Data
| Axes | 4 | |
| Standard Load | 3kg | |
| Max Load | 3.5kg | |
| Weight | 28kg | |
| Overall height | 830mm | |
| Repeatability(mm) | ±0.05 | |
| 1 axis | Arm length | 325mm |
| Rotation angle | ±90° | |
| 2 axis | Arm length | 275mm |
| Rotation angle | ±164° | |
| Z axis | Travel | 410mm(Highly customizable) |
| R axis | Rotation range | ±1080°(With mechanical limit)/±170°(without mechanical limit) |
| Line speed(mm/s) | 1500 | |
| Power supply | 220V/110V | |
| Peak Power(W) | 960 | |
| Communication | Ethernet | |
| Z axis can be customizedheight(mm) | 100-1000 | |
| Dimensions of thebase(mm) | 200*250*15 | |
| Base fixing hole spacing | 200mm*200mm with four M8*20 screws | |
| Collision Detection | Yes | |
| Drag to teach | Yes | |
| Ambient temperature | 0~55℃ | |
| Operating Humidity | RH85(no frosting) | |
