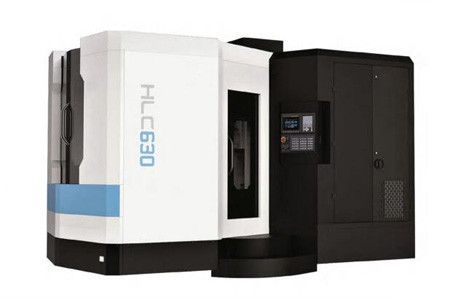

HLC Series Horizontal Machining Center

Technical Data

Items	Machine Model: HLC500	HLC500S	HLC630	HLC630S
Table Size (mm)	500x6C0	500×600	630×630	630×700
Max Loading Weight (kg)	500	600	1500	950
Table dividing (°)	1°x360/0. .001°continuous	1°x360/0. .001°continuous	1°x360/0. .001°continuous	1°x360/0. .001°continuous
Number-width x distance (mm)	6x14x80	6x14x80	5x18x125	5x18x125
XY/Z Travel (mm)	800/600/600	800/6201600	1000/800/900	1050/750/900
Rapid speed(X /Y /Z) m/min	20/15/20	20/15/20	20/15/20	20/15/20
X Y Z cutting speed (mm/min)	1-8000	1-8000	1-8000	1-8000
Spindle center line to table surface (mm)	50-650	40-640	0-800	120-870
Spindle nose to table center  (mm)	150-750	185~785(BT40)158-758(BT50)	200~1100	130~1030
Spindle speed  ( rpm )	6000	6000/8000	6000	6000
Spindle power ( kw)	11/15	11/15	15/18.5	15/18.5
Tool holder type	BT50	BT50	BT50	BT5O
Pull stud	BT50~45°	BT40-45°BT50~45°	BT50-45°	BT50-45°
ATC capacity hold	24;32/40	24;32/40	24;32/40	24;32/40
Tool change time ( s )	3.5	3.5	3.5	3.5
Max tool weight (kg)	25	25	25	25
Max diameter of tool (mm)	Φ110/Φ220	Φ110/Φ220	Φ110/Φ220	Φ110/Φ220
Air pressure (MPa)	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Machine weight (kg)	10800	121500	13000	13500
Machine overall size ( L x W x H ) mm	3800x 3000x 3020	3800x 2800x 2900	4300x 3150x 3800	4300x 3150x 3600

HLC800	HLC1000	HLC1000S	HLC1250	HLC1500
800×800	1000×1000	1000×1000	1250×1250	1500×1500
2000/3000	5000	1500	7000/5000	8000
1°x360/0. .001°continuous	1°x360/0. .001°continuous	1°x360/0. .001°continuous	1°x360/0. .001°continuous	1°x360/0. .001°continuous
5x22x160	7x22x130	7x22x130	7x22x150	5x28x275
1200/900/900	1800/1400/1400	1600/1000/1000	1800/1400/1400	2500/1500/2000
20/15/20	16/12/16	16/12/16	16/12/16	9/9/9
1-8000	1-~5000	1-5000	1-5000	1-5000
0-900	0~1400	120~1120	0~1400	50~1550
200~1100	250~1650	200~1200	250~1650	610~2610
6000	6000	6000	6000	6000
15/18.5	18.5/22	18.5/22	18.5/22	18.5/22
BT50	BT50	BT50	BT50	BT50
BT50~45°	BT50~45°	BT50~45°	BT50~45°	BT50~45°
24;32/40	30;3240	30;3240	30;3240	30;3240
3.5	7.5	7.5	7.5	7.5
25	25	25	25	25
Φ110/Φ220	Φ125/Φ240	Φ125/Φ240	Φ125/Φ240	Φ125/Φ240
0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
14000	26000	20000	28000	34000
4300x3150x3900	7400x 5900x 3820	6400x 5500x 3820	7400x5900x 3820	8200x6900x5000

Items	Machine Model:HLC630SAPC	HLC630APC
Table Size (mm)	630×700	630×630
Table gty	2	2
Table dividing type (°)	1°x360/0.001°	1°x360/0.001°
Max Loading Weight (kg)	950×2	800×2
Number-width x distance (mm)	5x18x125	5x18x125
Max workpiece size (mm)	Φ960×800	Φ1000×900
3 axis travel(X/Y/Z) (mm)	1050/750/900	1100/800/1100
3axis feeding speed(m/min)	20	24
Spindle center line to table surface (mm)	0~750	50~850
Spindle nose to table center (mm)	130~1030	125~1225
Spindie taper	BT50	BT50
Max. spindle speed (R/MIN)	6000	6000
Main motor power (KW)	15/18.5	15/18.5
ATC Type, Tool capacity	disc type 30T(optional: chain type 32T/40T)
3 aixs positioning accuracy/Repeated positioning accuracy (mm)	0.018/0.010	0.015/0.008
Table dividing accuracy/Repeated accuracy	15/5	10/3

Product introduction

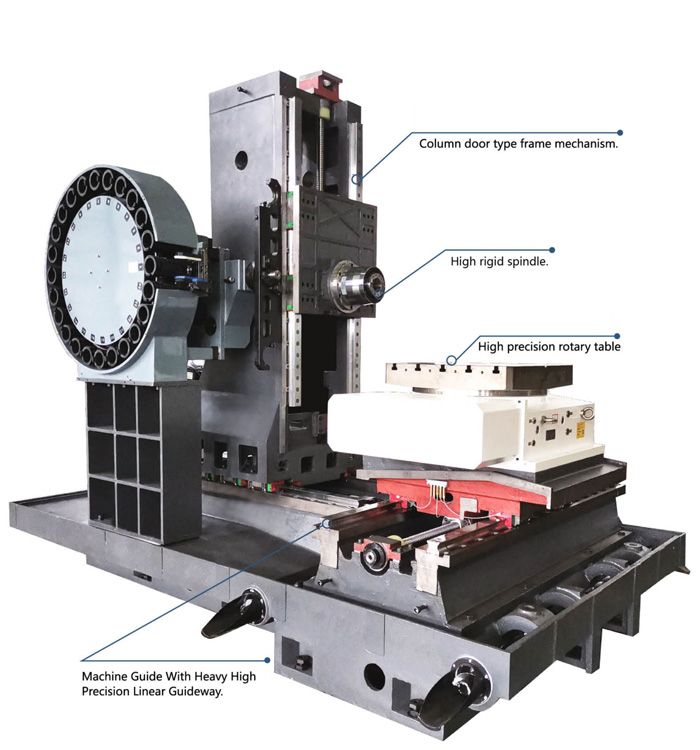

HLC series The base, column, slide, and headstock of this machine tool are made of high-quality cast iron HT300. The main foundation is designed with dense tendons for large sections, and finite element analysis is used to ensure high bending and torsional rigidity, so that it has a high natural frequency and improved vibration resistance.

The three-axis linear guide rail meets technical performance for high speeds. And high precision requirements. After secondary aging treatment, internal stress is eliminated. It has the characteristics of good overall rigidity, good vibration absorption and seismic performance.

It is widely used in the processing of box parts, shell parts, and disc-shaped parts in the military, automobile, mold, and machinery manufacturing industries. After a single clamping, the parts can be processed in multiple processes such as milling, boring, drilling, expanding, reaming, tapping, etc., with high precision, high automation, high reliability, high degree of mechanical and electrical integration, simple operation, beautiful overall appearance .

HLC series horizontal machining center as a whole continued HC500A, HC630A, HC800A hard rails lying machine tool structure, using inverted T shape structure, one-piece base, before bed one-piece structure with the base, the linear coordinate guide rail are overloaded high precision roller contour line, the high speed machine tool feed ltte vibration, low speed feed without crawling, can carry heavy load cutting, and has a high precision stability and dynamic response.

The machine can choose FANUC and Siemens system, rotary table, ATC, spindle, rail, screw are Taiwan brands.

Accessories:

Standard Equipment	Optional Equipment
24 tool ATC	32 Arm chian type ATC
Spindle air curtain dust control system	40 Arm chian type ATC
Workpiece cooling system	Central outlet of spindle (equipped with high pressure cooling device)
Equal division CNC rotary table	ZF gearbox drive
Automatic lubrication system	Spindle oil cooling device
Spiral chip removal device	Arbitrary indexing CNC rotary table
Chain-plate type chip lifter	Scraper lift chip remover
Integral shield	3 axis linear scale
The toolkit	Tool detection device
Anchor bolt and pad iron	Workpiece detection device
	Door opening protection (door protection)
	Portable chip air gun
	Machine cleaning water tank
	Simple oil and water separator
