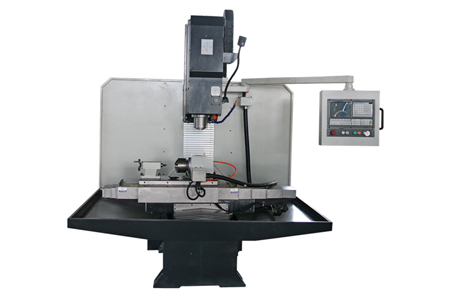

MK7126 MH7126 CNC Milling Machine

Technical Data

Items	Units	Machine Model:MK7126	Machine Model:MH7126
Table size	mm	800×260	800×260
X axis travel	mm	450	450
Y axis travel	mm	320	320
Z axis travel	mm	400	400
Max. worktable load	kg	200	200
T slot(number-width-pitch)		3-14×80	3-14×80
Max. spindle speed	rpm	6000	6000
Spindle taper	mm	BT40	BT40
Main motor power	kw	3.7	3.7
X/Y/Z rapid traverse speed	m/min	15/15/15	15/15/15
Cutting feed speed	mm/min	1-6000	1-6000
Guide rail type		Linear rail	Linear rail
Distance from spindle axis to column surface	mm	360	360
Distance between spindle nose and worktable surface	mm	90-520	90-520
Positioning accuracy	mm	±0.015	±0.015
Repeat positioning accuracy	mm	±0.0075	±0.0075
Tool magazine		–	12 Armless/(Optional: Arm 16 )
Max. tool diamete	mm	–	Ø130
Max. tool diameter	kg	–	8
Machine weight	kg	2400	2400
Overall dimension	mm	2200x1900x2200	2200x1900x2200

Product introduction

MK7126 MH7126 CNC milling machine suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.

Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.

The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.

Product Features:

• The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
• The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
• The pre tension precision ball screw drive
• The high speed, high precision, high rigidity spindle unit
• The design of oil-water separation
• The intermittent automatic lubrication
• Automatic scraping knife system
