Technical Data
| Items | Unit | Model | |
| L-46SDY | |||
| Machining range | Max. swing diameter on the bed | mm | Φ570 |
| Max. turning diameter on the saddle | mm | Φ320 | |
| Max. turning diameter | mm | Φ130 | |
| Max. turning length | mm | 130 | |
| Travel | X1, X2 axis travel | mm | 200、300 |
| Y1 axis travel | mm | ±50 | |
| Y1 effective machining travel | mm | ±45 | |
| Z1, Z2 axis travel | mm | 320、300 | |
| Main/Sub-spindle | Chuck size | inch | 6″ |
| Max. speed | rpm | 6000 | |
| Basic speed | rpm | 2000 | |
| Spindle end type | A2-5 | ||
| Spindle through hole size | mm | Φ57 | |
| Motorized spindle power | Kw | 15/17.8 | |
| Adjustable bar diameter | mm | Φ45 | |
| Milling spindle | Max. speed | rpm | 4000 |
| Drilling capacity | mm | Φ16×1.5 | |
| Tapping capacity | [mm] x | M12x1.75 | |
| [mm] | |||
| Milling spindle motor | KW | 2.7 | |
| Turret interface | BMT45 | ||
| Feed speed | X-axis rapid traverse speed | mm/min | 18000 |
| Z-axis rapid traverse speed | mm/min | 18000 | |
| Y-axis rapid traverse speed | mm/min | 10000 | |
| Motor | Spindle motor | KW | ＞11 |
| Cooling pump motor | KW | 0.75 | |
| Electricity/Air source | Power supply capacity (continuous fixed rate) | KVA/Kw | 64KVA/44.75KW |
| Air source | L/min | 0.5Mpa/100 | |
| cooling | Water tank capacity | L | 130 |
| Size/weight | Distance from spindle center to ground | mm | 1070 |
| Machine height | mm | 2060 | |
| Occupied area (L×W) | mm×mm | 2410 (without chip conveyor) × 2210 | |
| Machine weight (approx.) | Kg | 5000 | |
Description
CNC Horizontal turning(milling) compound with Y axis
Powerful technology, one machine with multiple functions, multiple varieties, small batches
Characters

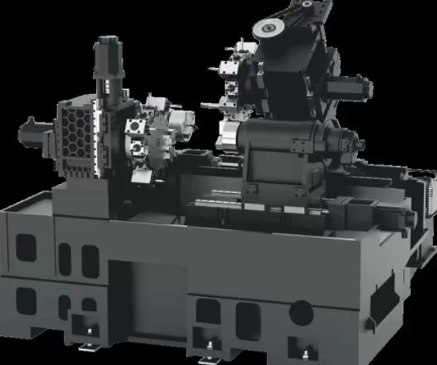

Overall
- Dual-spindle and dual-turret CNC turning and milling machine tool
- Fully enclosed protection, single left sliding door, optional automatic discharge device, independent chip collection water tank, automatic chip conveyor, good chip removal performance
Guide rail
- Adopt Japanese THK or Taiwan PMI linear rolling or roller guide rails, Japanese THK or Taiwan PMI ball screw drive. Good dynamic characteristics, high precision and strong rigidity.
- It adopts preloaded linear roller guide and ball screw, which has the characteristics of fast speed and high processing precision.

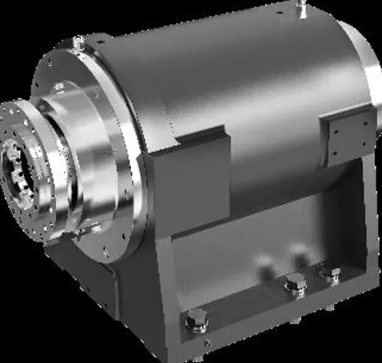

Spindle
- The permanent magnet synchronous electric spindle has good dynamic characteristics, high precision and strong rigidity.
- Synchronous servo electric spindle has high precision, fast acceleration and deceleration, and saves energy.

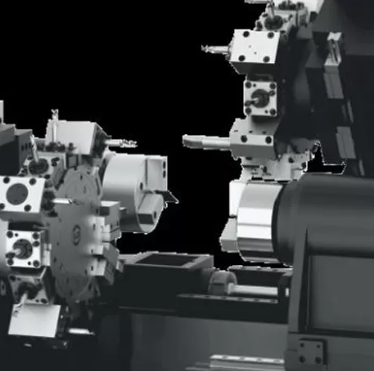

Tool
Relying on the servo lifting power turret, it has high precision and fast tool change speed, can complete complex processing requirements, and can replace machining centers and engraving machines.
