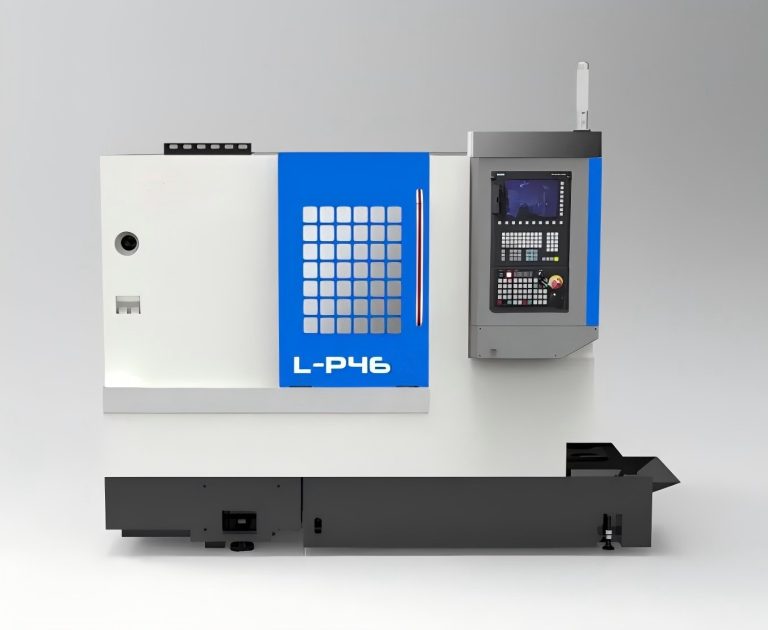

Technical Data
| Name | Unit | Model | |
| L-P46 | |||
| Machining range | Max. swing diameter on the bed slide | mm | Φ420 |
| Max. machining length | mm | 330 | |
| Machining diameter (disc type) | mm | Φ300 | |
| Machining diameter on the cutter | mm | Φ125 | |
| Travel | X-axis travel | mm | 900 |
| X-axis motor power/stall torque | kW/Nm | 1.2/7 | |
| Z-axis travel | mm | 330 | |
| Z-axis motor power/stall torque | kW/Nm | 1.2/7 | |
| Spindle | Output power (S1/S2) | kW | 5.5/7.5 |
| Spindle end type | A2-5 | ||
| Spindle speed | r/min | 0-6000 | |
| Spindle through hole diameter/bar diameter | mm | Φ56/Φ46 | |
| Fixture | Hollow collet | inch | 6 |
| Speed | Rapid traverse speed (X axis) | m/min | 30 |
| Rapid traverse speed (Z axis) | m/min | 30 | |
| Cutting feed rate | mm/min | / | |
| Tool holder | Tool holder type | full gang tool | |
| Quantity | PCS | 7 | |
| Cutter body size | mm | 20´20 | |
| Max. boring tool diameter | mm | 20 | |
| Accuracy | Positioning accuracy (X axis) | mm | 0.003 |
| Positioning accuracy (Z axis) | mm | 0.003 | |
| Repeatability ((X axis) | mm | 0.002 | |
| Repeatability ( (Z axis) | mm | 0.002 | |
| Othes | Equipment capacity | kVA | 10 |
| Coolant tank capacity | L | 100 | |
| Machine size | mm | 2100´1600´1950 | |
| Weight (approx.) | kg | 2650 | |
Description
This machine can automatically complete the turning of cylinders, cones, stepped shafts, arc surfaces, end faces, grooving, drilling and various metric and inch straight and tapered threads. The machine is equipped with a series of spring chucks, which can be widely used in instruments, meters, light industry, electronics, medical equipment, film machinery and other industries.
Characters
Overall
- The CNC lathe adopts a box-type bed structure, high-strength HT300 cast iron, dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating property. The base bed has an integral box structure, which greatly enhances the overall rigidity and stability of the machine tool, and has the function of absorbing vibration, reducing tool wear and improving workpiece quality.
Hydraulic Sleeve Tailstock
The large span hard rail structure design is of high rigidity, strong performance and strong bearing capacity. The dovetail structure makes the lower pressure plate more reliable when locked.
Spindle
- The machine adopts an integral sleeve spindle, imported precision spindle bearings, and spindle servo motor drive to achieve high precision, high rigidity, and speed stability.
- The heat sink-type spindle box design is equipped with symmetrical reinforcement ribs to effectively reduce the spindle temperature rise, increase spindle stability, and increase bearing life.
Tool
Use full gang tool.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
