Technical Data
| Items | Unit | Model | Remarks | |
| L-45YP | ||||
| Processing range | Max. rotation diameter | mm | φ600 | |
| Max. processing diameter (axis/plate) | mm | φ380/φ450 | ||
| Max. processing length | mm | 900 | 800 (optional large motor) | |
| Max. bar diameter | mm | Φ75 | ||
| Travel | X –axis travel | mm | 240 | |
| X –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Y –axis travel | mm | 100（±50） | ||
| Y –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Z –axis travel | mm | 950 | 830 (optional large motor) | |
| Z –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Spindle | Output power(S1/S6) | kW | 15/18.5 | |
| Spindle end form | A2-8 | |||
| Spindle rotary speed | r/min | 0-2500 | ||
| Hole diameter | mm | Φ87 | ||
| Chuck | Hydraulic 3-jaw chuck | inch | 10 | Hollow |
| Tailstock | Tailstock sleeve diameter/travel | mm | φ100/150 | Optional |
| Tailstock sleeve taper hole | Morse | Morse 5# | Live center | |
| Speed | X-axis rapid traverse speed | m/min | 30 | |
| Y-axis rapid traverse speed | m/min | 10 | ||
| Z-axis rapid traverse speed | m/min | 30 | ||
| Cutting Feed Rate | mm/min | 1-8000 | ||
| Tool holder | Tool capacity | T | 12 | |
| Milling head motor power/stall torque | kW | 2.7/12-46 | αi S 12/4000-B | |
| Milling tool max. speed | r/min | 4000 | ||
| Milling tool handle specification | mm | BMT55 | ||
| Turning tool holder specification | mm | 25*25 | ||
| Max. boring tool diameter | mm | φ32 | ||
| Tool holder processing capacity | Maximum milling capacity of power tool | Milling cutter diameter×milling depth×feed | 45 Steel | |
| Maximum drilling capacity of power tool | Drill diameter × feed | 45 Steel | ||
| Maximum tapping capacity of power tool | M10×1.5 | 45 Steel | ||
| Accuracy | X axis positioning accuracy | mm | 0.008 | |
| Y axis positioning accuracy | mm | 0.02 | ||
| Z axis positioning accuracy | mm | 0.012 | ||
| C axis positioning accuracy | arc sec | 51 | ||
| X axis repeatabilitys | mm | 0.004 | ||
| Y axis repeatability | mm | 0.005 | ||
| Z axis repeatability | mm | 0.006 | ||
| C axis repeatability | arc sec | 20 | ||
| Others | Power Supply Capacity | kVA | 30 | |
| Coolant volume | L | 250 | ||
| Dimension | mm | 3585×1880×2015 | ||
| Total weight | kg | 4800 | ||

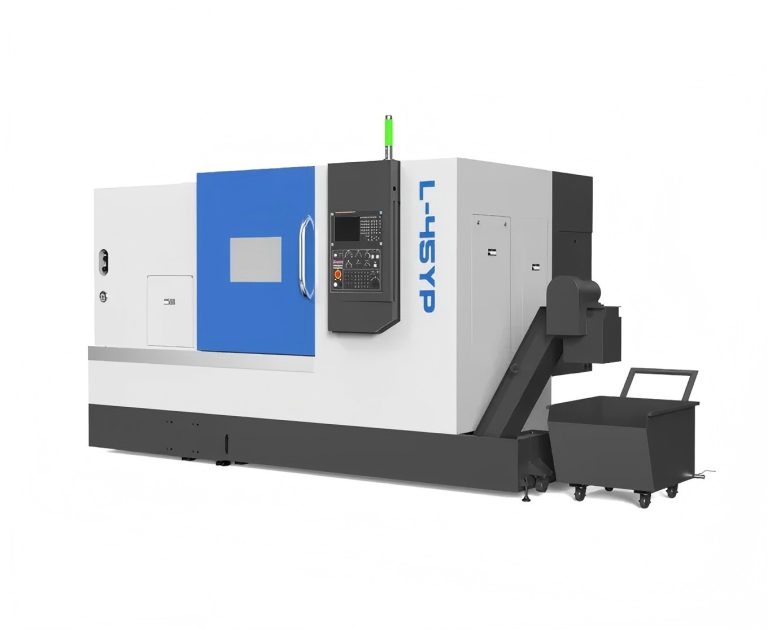

Description
This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.
Advantages of CNC Horizontal Turning(Milling) Compound with Y Axis:
- 30° overall inclined bed, linear guide rails for XZ axis and box guideway for Y axis.
- Mechanical spindle as standard, motorized spindle as optional, spindle with C-axis indexing function and hydraulic brake assist system.
- Equipped with BMT45 / BMT55 power turret (including Y axis), and hydraulic sleeve tailstock with live center structure.
