Technical Data
| Items | Unit | Model | Remarks | |

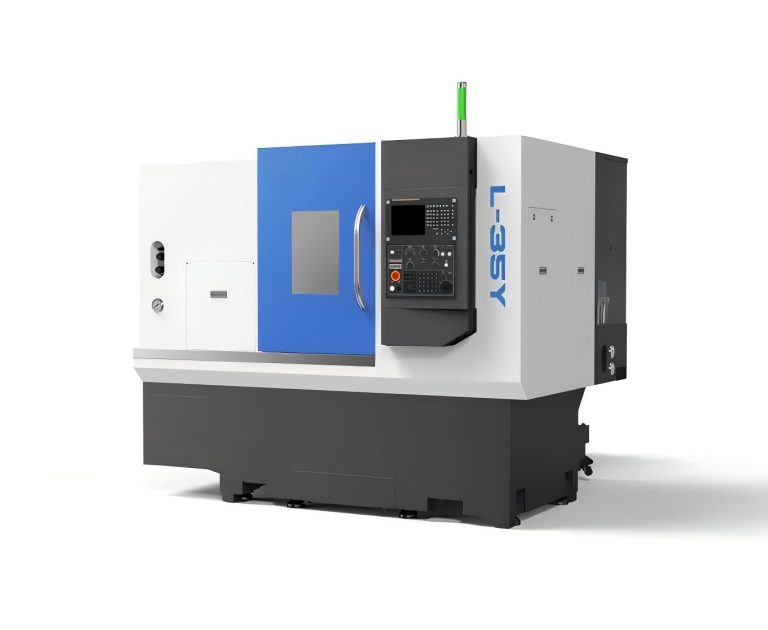

| L-35Y | ||||
| Processing range | Max. rotation diameter | mm | φ520 | |
| Max. processing diameter (axis/plate) | mm | φ300/φ350 | ||
| Max. processing length | mm | 330 | ||
| Max. bar diameter | mm | φ52 | ||
| Travel | X –axis travel | mm | 200 | |
| X –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Y –axis travel | mm | 100（±50） | ||
| Y –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Z –axis travel | mm | 400 | ||
| Z –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Spindle | Output power(S1/S6) | kW | 11/15 | |
| Spindle end form | A2-6 | |||
| Spindle rotary speed | r/min | 0-4000 | ||
| Hole diameter | mm | φ63 | ||
| Chuck | Hydraulic 3-jaw chuck | inch | 8 | Hollow |
| Tailstock | Tailstock sleeve diameter/travel | mm | φ70/100 | Optional |
| Tailstock sleeve taper hole | Morse | Morse 4# | Live center | |
| Speed | X-axis rapid traverse speed | m/min | 30 | |
| Y-axis rapid traverse speed | m/min | 10 | ||
| Z-axis rapid traverse speed | m/min | 30 | ||
| Cutting Feed Rate | mm/min | 1-8000 | ||
| Tool holder | Tool capacity | T | 12 | |
| Power head motor power/stall torque | kW | 2.7kw/12-46N | αi S 12/4000-B | |
| Maximum speed of power tool | r/min | 4000 | ||
| Tool holder specifications | mm | BMT55 | ||
| Turning tool holder specifications | mm | 25×25 | ||
| Maximum boring tool holder diameter | mm | Φ32 | ||
| Tool holder processing capacity | Maximum milling capacity of power tool | Milling cutter diameter × milling depth × feed φ 20mm × 10mm × 40 (mm/min) | 45 Steel | |
| Maximum drilling capacity of power tool | Drill diameter × feed rate φ14 (mm) × 0.15 (mm/r) | 45 Steel | ||
| Maximum tapping capacity of power tool | M10×1.5 | 45 Steel | ||
| Accuracy | X axis positioning accuracy | mm | 0.006 | |
| Y axis positioning accuracy | mm | 0.02 | ||
| Z axis positioning accuracy | mm | 0.006 | ||
| C axis positioning accuracy | arc sec | 51 | ||
| X axis repeatabilitys | mm | 0.004 | ||
| Y axis repeatability | mm | 0.005 | ||
| Z axis repeatability | mm | 0.004 | ||
| C axis repeatability | arc sec | 20 | ||
| Others | Power Supply Capacity | kVA | 30 | |
| Coolant volume | L | 250 | ||
| Dimension | mm | 2400*1770*2010 | ||
| Total weight | kg | 3800 | ||
Description
High rigidity, high stability, high load-bearing capacity
Advantages of CNC Horizontal Turning(Milling) Compound with Y Axis:
- 30° overall inclined bed, linear guide rails for XZ axis and box guideway for Y axis.
- Mechanical spindle as standard, motorized spindle as optional, spindle with C-axis indexing function and hydraulic brake assist system.
- Equipped with BMT45 / BMT55 power turret (including Y axis), and hydraulic sleeve tailstock with live center structure.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
