Technical Data
| Items | Unit | Model | Remarks | |
| L-25Y | ||||
| Processing range | Max. rotation diameter | mm | φ520 | |
| Max. processing diameter (axis/plate) | mm | φ300/φ350 | ||
| Max. processing length | mm | 330 | ||
| Max. bar diameter | mm | φ52 | ||
| Travel | X –axis travel | mm | 190 | |
| X –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Y –axis travel | mm | 100（±50） | ||
| Y –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Z –axis travel | mm | 400 | ||
| Z –axis motor power/stall torque | kW/Nm | 1.8/11 | ||
| Spindle | Output power(S1/S6) | kW | 7.5/11 | |
| Spindle end form | A2-5 | |||
| Spindle rotary speed | r/min | 0-6000 | ||
| Hole diameter | mm | φ67 | ||
| Chuck | Hydraulic 3-jaw chuck | inch | 6 | Hollow |
| Tailstock | Tailstock sleeve diameter/travel | mm | φ70/100 | Optional |
| Tailstock sleeve taper hole | Morse | Morse 4# | Live center | |
| Speed | X-axis rapid traverse speed | m/min | 30 | |
| Y-axis rapid traverse speed | m/min | 10 | ||
| Z-axis rapid traverse speed | m/min | 30 | ||
| Cutting Feed Rate | mm/min | 1-8000 | ||
| Tool holder | Tool capacity | T | 12 | |
| Power head motor power/stall torque | kW | 2.7kw/12-46N | αi S 12/4000-B | |
| Maximum speed of power tool | r/min | 4000 | ||
| Tool holder specifications | mm | BMT45 | ||
| Turning tool holder specifications | mm | 25×25 | ||
| Maximum boring tool holder diameter | mm | Φ32 | ||
| Tool holder processing capacity | Maximum milling capacity of power tool | Milling cutter diameter × milling depth × feed φ 20mm × 10mm × 40 (mm/min) | 45 Steel | |
| Maximum drilling capacity of power tool | Drill diameter × feed rate φ14 (mm) × 0.15 (mm/r) | 45 Steel | ||
| Maximum tapping capacity of power tool | M10×1.5 | 45 Steel | ||
| Accuracy | X axis positioning accuracy | mm | 0.006 | |
| Y axis positioning accuracy | mm | 0.02 | ||
| Z axis positioning accuracy | mm | 0.006 | ||
| C axis positioning accuracy | arc sec | 51 | ||
| X axis repeatabilitys | mm | 0.004 | ||
| Y axis repeatability | mm | 0.005 | ||
| Z axis repeatability | mm | 0.004 | ||
| C axis repeatability | arc sec | 20 | ||
| Others | Power Supply Capacity | kVA | 25 | |
| Coolant volume | L | 150 | ||
| Dimension | mm | 2500*3100*2100 | ||
| Total weight | kg | 3800 | ||
Description

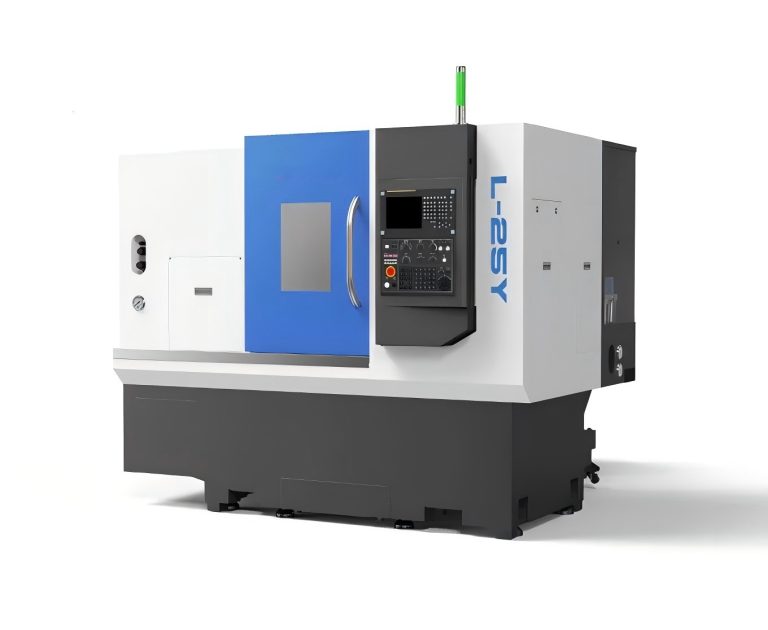

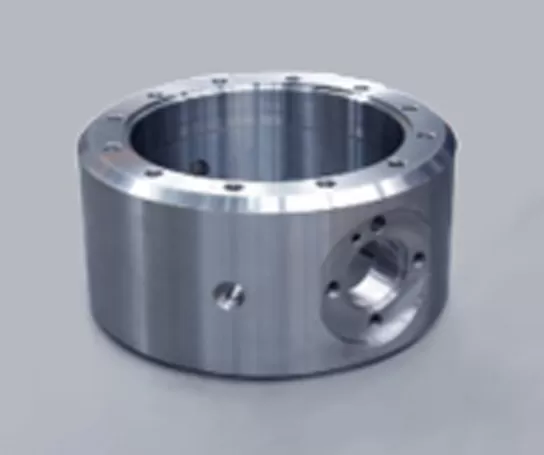

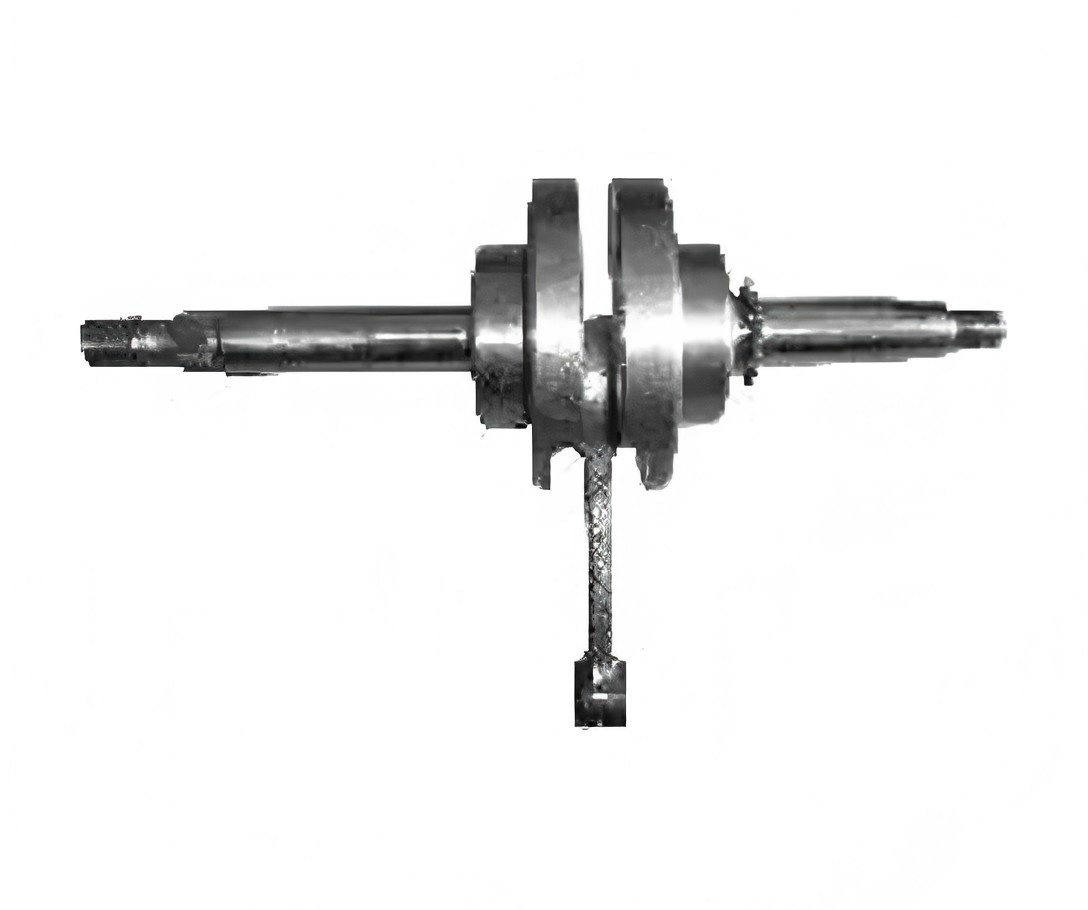

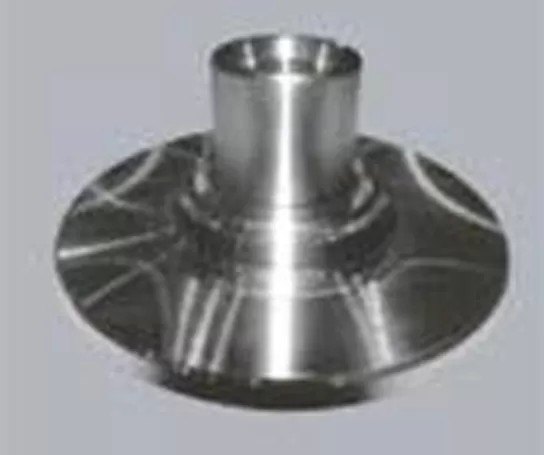

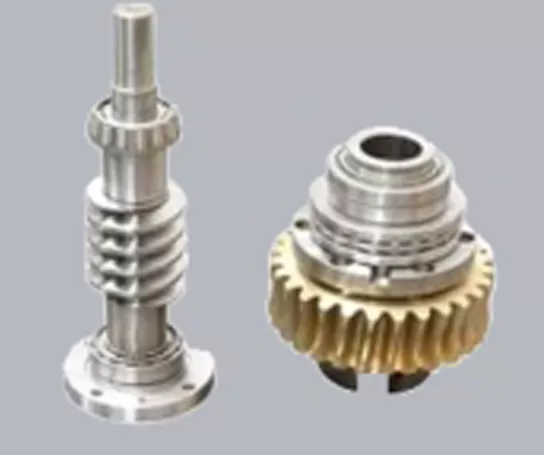

High rigidity, high stability, high load-bearing capacity
Advantages of CNC Horizontal Turning(Milling) Compound with Y Axis:
- 30° overall inclined bed, linear guide rails for XZ axis and box guideway for Y axis.
- Mechanical spindle as standard, motorized spindle as optional, spindle with C-axis indexing function and hydraulic brake assist system.
- Equipped with BMT45 / BMT55 power turret (including Y axis), and hydraulic sleeve tailstock with live center structure.
