Technical Data
| Items | Unit | Model | Remarks | |
| L-35M | ||||
| Processing range | Max. rotation diameter | mm | φ520 | |
| Max. processing diameter (axis/plate) | mm | φ300/φ350 | ||
| Max. processing length | mm | 400 | ||
| Max. bar diameter | mm | φ52 | ||
| Travel | X –axis travel | mm | 190 | |
| X –axis motor power/stall torque | kW/Nm | 1.5/7.2 | ||
| Z –axis travel | mm | 430 | ||
| Z –axis motor power/stall torque | kW/Nm | 1.5/7.2 | ||
| Spindle | Output power(S1/S6) | kW | 7.5/11 | |
| Spindle end form | A2-6 | |||
| Spindle rotary speed | r/min | 0-4000 | ||
| Hole diameter | mm | Φ63 | ||
| Chuck | Hydraulic 3-jaw chuck | inch | 8 | Hollow |
| Tailstock | Tailstock sleeve diameter/travel | mm | Φ70/100 | Optional |
| Tailstock sleeve taper hole | Morse | Morse 4# | Live center | |
| Speed | X-axis rapid traverse speed | m/min | 30 | |
| Z-axis rapid traverse speed | m/min | 30 | ||
| Cutting Feed Rate | mm/min | 1~8000 | ||
| Tool holder | Tool capacity | T | 12 | |
| Milling head motor power/stall torque | kW | 2.2/12 | ||
| Milling tool max. speed | r/min | 3000 | ||
| Milling tool handle specification | mm | BMT45 | ||
| Turning tool holder specification | mm | 25×25 | ||
| Max. boring tool diameter | mm | Φ32 | ||
| Accuracy | X axis positioning accuracy | mm | 0.006 | |
| Z axis positioning accuracy | mm | 0.006 | ||
| C axis positioning accuracy | arc sec | 51 | ||
| X axis repeatabilitys | mm | 0.004 | ||
| Z axis repeatability | mm | 0.004 | ||
| C axis repeatability | arc sec | 20” | ||
| Others | Power Supply Capacity | kVA | 25 | |
| Coolant volume | L | 150 | ||
| Dimension | mm | 2300*1880*1800 | ||
| Total weight | kg | 3600 | ||

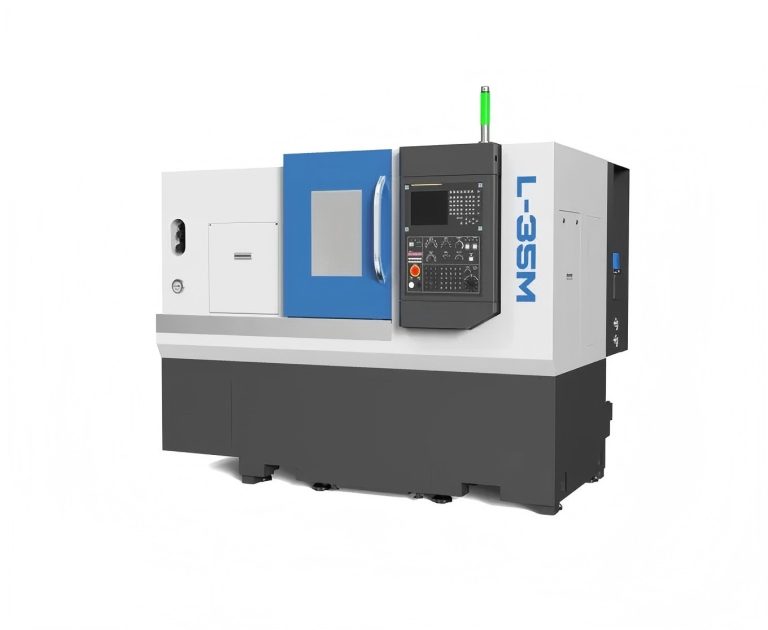

Description
This lathe meets the needs of complex parts processing and is widely used in valves, ships, engineering machinery and other fields, especially favored by automotive parts manufacturers.
Characters
Overall
The machine adopts an integrated machine, electrical, and hydraulic design with a 30°slant bed structure. It is compact, highly rigid, allows for smooth chip removal, and is easy to operate.
Guide rail
The guide rails are of the rolling type, and the drive components use high-speed, quiet ball screws, offering fast speeds, low heat generation, and high positioning accuracy.
Spindle
The spindle speed range is 0-4000 rpm. The spindle is supported by a combination of high-precision angular contact ball bearings (front and rear), meeting the axial and radial cutting force requirements.
Tool Turret
Combined with the C-axis indexing spindle and hydraulic brake assistance, this setup enables 3-axis linkage and supports functions such as milling, drilling, and tapping with high efficiency, precision, and stable performance.
Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
