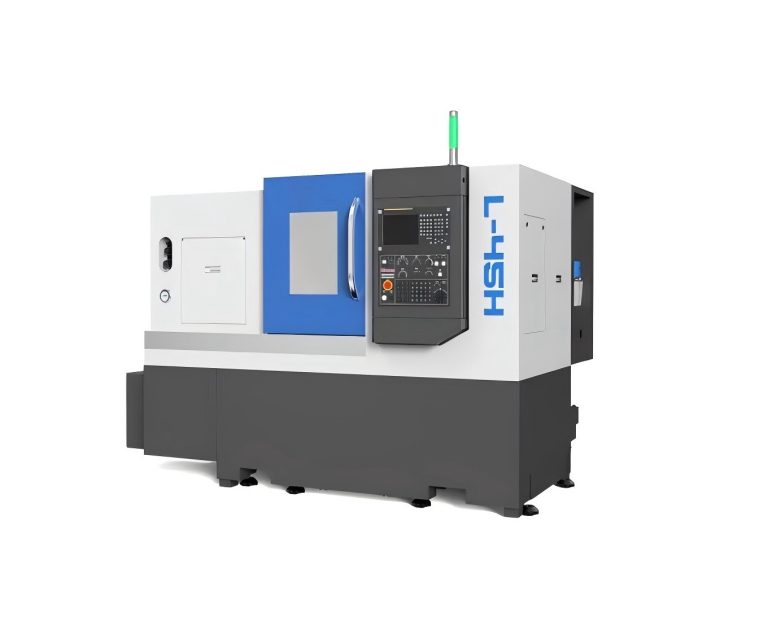

Technical Data
| Items | Unit | Model | Remarks | |
| L-45H | ||||
| Machining range | Max. swing diameter on the bed | mm | φ600 | |
| Max. machining diameter (shaft/disc) | mm | φ380/φ450 | ||
| Max. machining length | mm | 1000 | ||
| Max. bar diameter | mm | φ75 | ||
| Travel | X-axis travel | mm | 240 | |
| X-axis motor power/stall torque | kw/Nm | 1.8/11 | ||
| Z-axis travel | mm | 1030 | ||
| Z-axis motor power/stall torque | kw/Nm | 1.8/11 | ||
| Spindle | Output power (S1/S6) | kw | 15/18.5 | |
| Spindle end form | A2-8 | |||
| Spindle speed | r/min | 0-2800 | ||
| Spindle through hole diameter | mm | φ87 | ||
| Chuck | Hydraulic three-jaw chuck | inch | 10 | Hollow |
| Tailstock | Tailstock sleeve diameter/travel | mm | φ100/150 | Optional |
| Tailstock sleeve hole taper | Morse | Morse 5# | Live top | |
| Speed | Rapid traverse speed (X axis) | m/min | 30 | |
| Rapid traverse speed (Z axis) | m/min | 30 | ||
| Cutting feed speed | mm/min | 1~8000 | ||
| Tool holder | Tool capacity | T | 12 | |
| Tool indexing time | Seconds/bit | 0.5 | ||
| Tool body size | mm | 25×25 | ||
| Max. boring tool diameter | mm | 40 | ||
| Accuracy | Positioning accuracy (X axis) | mm | 0.008 | |
| Positioning accuracy (Z axis) | mm | 0.012 | ||
| Repeatability ((X axis) | mm | 0.004 | ||
| Repeatability ( (Z axis) | mm | 0.006 | ||
| Others | Equipment capacity | kVA | 16 | |
| Coolant tank capacity | L | 250 | ||
| Machine size | mm | 3770*1970*1700 | Manual chip removal coolant tank | |
| Weight (approx.) | kg | 4500 | ||
Description
Powerful technology, multiple functions one clamping can complete various processing to meet personalized market manufacturing needs.
Characters
Overall
- 30°overall inclined bed, with compact structure, high rigidity, smooth chip removal, easy operation, etc.;
- Fully enclosed protection, automatic chip removal, automatic lubrication, and automatic cooling.
Guide rail
The guide rail type is rolling guide rail, and the driving component adopts a high-speed silent ball screw, which has the advantages of high speed, low heat generation and high positioning accuracy.
Spindle
- The spindle speed range is 0-2800r/min.
- The front support of the spindle adopts a triple high-precision angular contact ball bearing, and the rear support adopts a double high-precision angular contact ball bearing, which meets the axial and radial cutting force bearing requirements and high speed requirements.
Tool
This machine tool adopts servo tool turret, which has fast tool changing speed and high reliability.

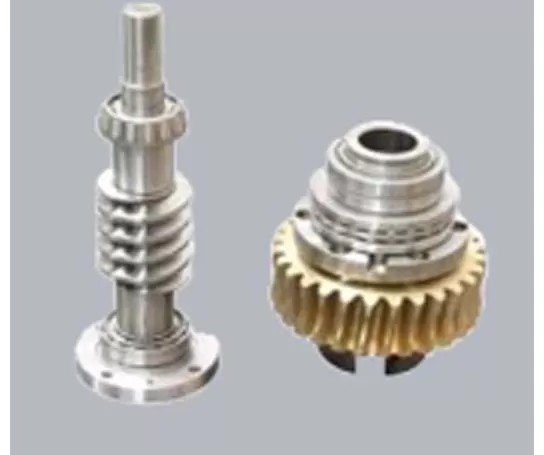

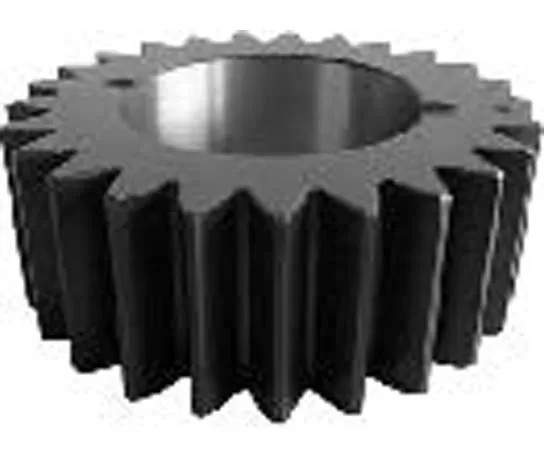

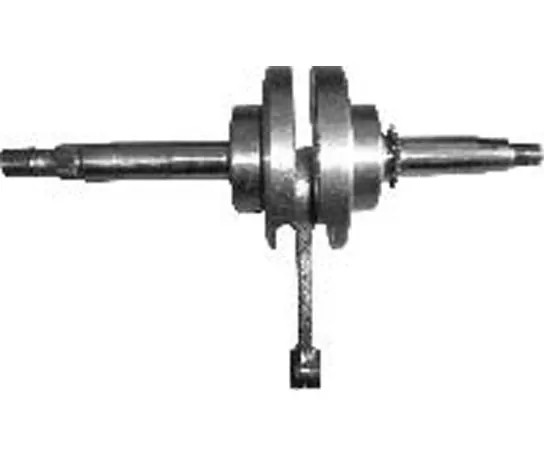

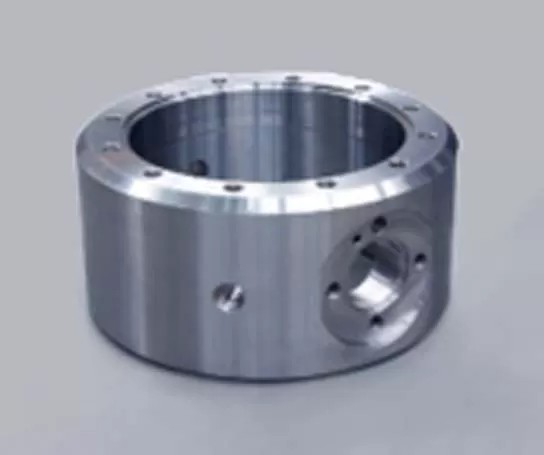

Applications
Advantages
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
