Technical Data
| Item | Unit | Machine Mode：FH32100 | |
| Processing capability | Maximum rotating diameter of worktable | Mm | 350 |
| The longest distance between two Centres | Mm | 1060 | |
| Maximum grinding diameter | Mm | 320 | |
| Maximum load between two top centers | Kg | 150(Center works) | |
| 40（Only headstock） | |||
| Grinding wheel size (diameter × width × aperture) | Mm | 510×50×203.2/610×110×203.2 | |
| Wheel speed | Rpm | 1570/1742 | |
| Maximum linear speed of grinding wheel | m/s | 45 | |
| Wheelhead | Wheel dressing | Mm | Automatic |
| X axis minimum feed | Mm | 0.001 | |
| Feed angle | Deg | 90 | |
| Feed stroke | Mm | 320 | |
| X axis feed speed | m/min | 6 | |
| Headstock | Spindle speed | Rpm | 10-500 |
| Spindle form | Synchrony or centering | ||
| Thimble specifications | MT-5 | ||
| Tailstock | Automatic telescopic distance | Mm | 40 |
| Thimble specifications | MT-5 | ||
| Way of working | Manual/hydraulic | ||
| Workbench | Z axis fast moving speed | m/min | 8 |
| Z axis minimum feed | Mm | 0.001 | |
| Maximum travel stroke | Mm | 1300 | |
| Rotation angle | Deg | 7 / -3 | |
| Motor | Wheel spindle motor | KW | 7.5/11 |
| X axis feed motor (servo) | KW | 3 | |
| Z axis feed motor (servo) | KW | 3 | |
| Headstock spindle motor | KW | 1.5 | |
| Cooling water pump motor | KW | 0.75 | |
| Lubricating oil motor | KW | (0.25)*2 | |
| Tailstock oil pump motor (special) | KW | 0.75 | |
| Others | X/Z axis guide/screw lubrication oil | MOBIL#1409 or ISO VG68 same level oil | |
| Machine net weight | Kg | 7500 | |
| Gross weight | Kg | 8500 | |
| Packing size (length * width * height) | Mm | 4800*3800*3000 | |
Product Introduction
- The grinding wheel spindle has high rigidity, high precision, high service life and low vibration,and low friction.
- The self-aligning function, the wheel spindle is not affected by the belt tension and is biased.
- The spindle has a centering and simultaneous compound function, and the user can perform rapid conversion in the core machining and the chuck clamping process.
- The Z-axis consists of an AC servo motor, a high-precision bead screw, and an automatic forced lubrication system.
- High repeatability, long track service life, high rigidity and smooth reciprocating motion.
- Configurable surface measurement, outer diameter thickness measurement, grinding wheel anti-collision device.
Optional Equipment
1. Inner hole grinding device
2. Automatic traction device

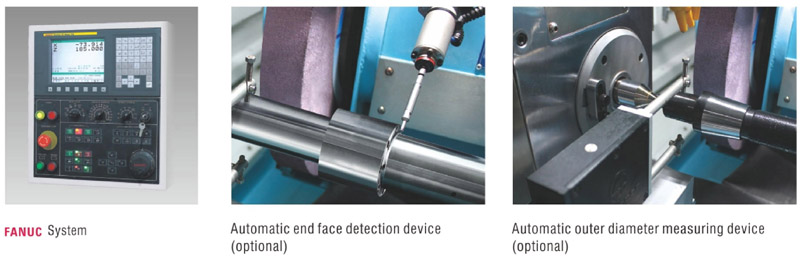

3. Automatic outer diameter measuring instrument
4. Automatic end face measuring instrument
5. Magnet + paper tape filter device
6. 6-inch three-jaw chuck and face plate
7. Spare grinding wheel flange
8. Tungsten carbide semicircular center
9. Full cover sheet metal
