Technical Data
| Items | unit | Machine Model: V2860 | V2880 | V28100 | V28100H | V28125 | V28160 | V28200 |
| Capacity of processing | ||||||||
| Maximum workpiece grinding diameter | mm | 750 | 850 | 1100 | 1100 | 1350 | 1800 | 2200 |
| Maximum workpiece height | mm | 400 | 400 | 500 | 1000 | 500 | 550 | 550 |
| Minimum grinding inner hole | mm | 60 | 60 | 100 | 250 | 100 | 350 | 350 |
| Maximum bearing capacity of workbench | kg | 600 | 800 | 2000 | 2000 | 2500 | 3000 | 5000 |
| Worktable | ||||||||
| Diameter of working table | mm | 600 | 800 | 1000 | 1000 | 1250 | 1600 | 2000 |
| Speed of work table | rpm | 200 | 200 | 60 | 60 | 60 | 50 | 40 |
| Precision of rotating | mm | 0.0015 | 0.0015 | 0.002 | 0.002 | 0.002 | 0.003 | 0.003 |
| Spindle | ||||||||
| Maximum spindle speed of vertical grinding wheel | rpm | 10000 | 10000 | 7000 | 6000 | 7000 | 3000 | 3000 |
| Vertical grinding wheel spindle power | kw | 11 | 11 | 15 | 15 | 15 | 18.5 | 22 |
| Maximum spindle speed of horizontal grinding wheel | rpm | – | – | 2500 | – | 2500 | 2000 | 2000 |
| Horizontal grinding wheel spindle power | kw | 11 | 11 | 15 | 15 | |||

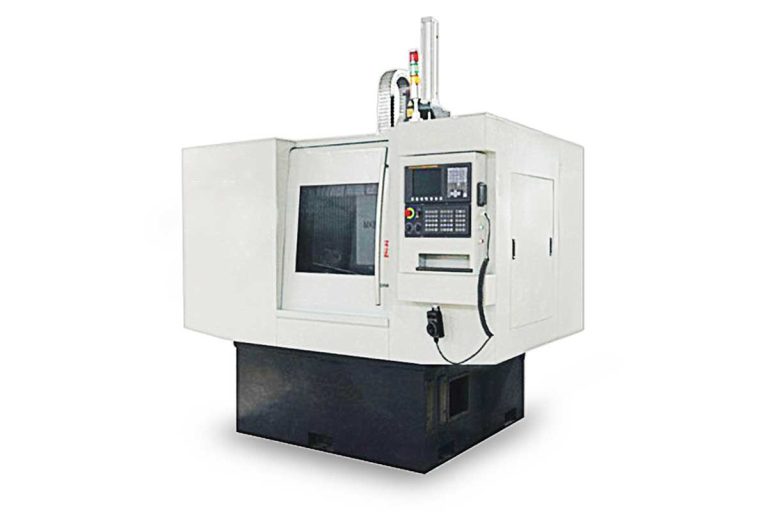

Product Introduction
1. Adopt high precision fully closed static pressure rotary table, large torque permanent magnet motor direct drive, large bearing capacity, smooth operation; Table rotation accuracy (axial/radial) ≤2μm machine tool spindle industry
2. High-strength stair wall beam and reinforced base adopt full contact structure to ensure high rigidity and good accuracy of the machine tool;
3. Adopt NSK precision bearing spindle (axial/radial ≤2μm), vertical and horizontal double spindle to meet different processing requirements; High precision dynamic and static spindles (axial/radial ≤1μm) can be selected to meet the needs of higher precision machining;
4. Adopt imported SCHNEEBERGER large-size high-precision roller guide rail, X-axis standard FAGOR grating ruler;
5. The oil supply system, torque motor, grinding wheel spindle, cooling system and control system are equipped with temperature control devices to ensure stable operation of key components of the whole machine;
6. The workbench is equipped with a standard plate, which can be selected with an electric permanent magnet chuck to meet the needs of different workpiece clamping;
7. The fully closed cover can be configured with high-power oil mist collector to optimize the working environment.
