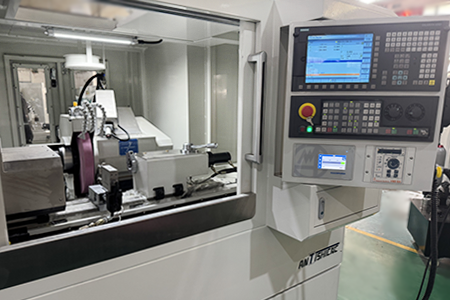

Technical Data
| Items | Machine Models:TH -2760P -R | |
| Robot lifting capacity | 10 kg | |
| Robot grip maximum diameter | ∅60mm | |
| Workpiece scope | Part type | Universal shaft parts |
| Max.size:diameter | ∅60mm | |
| Max.size:length | 250mm | |
| Max.workpiece mass | 5kg | |
| Beam(X-axis)material | Steel beam | |
| Beam(X-axis)guide | Roller guide | |
| Beam(X-axis)transmission | Timing belt | |
| Beam(Y axis)material | Steel beam | |
| Beam(Y axis)guide | Roller guide | |
| BeamY-axis transmission | Timing belt | |
| X axis moving speed | 120m/min | |
| X-axis acceleration | 0.8g | |
| Y axis moving speed | 80m/min | |
| Y-axis acceleration | 0.8g | |
| Repeat positioning accuracy (ISO) | 0.2 mm | |
| Drive mode | Serv0+reducer | |
| Control Method | CNC | |
| Maximum stacking height | 400 mm | |
| Automatic rotary storage bin | Station standard 10 stations(expandable to 20 stations ) | |
| Station selection | Motor chain rotation | |
| Tray feed | Screw drive | |
| Targeting | Similar with switch form | |
| Sheet metal shield Complete whole machine protection | ||

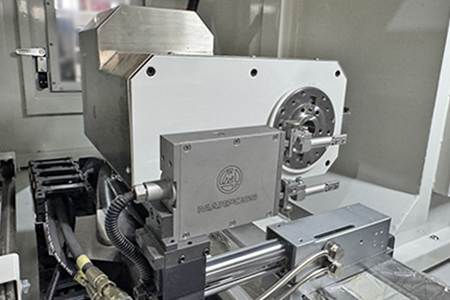

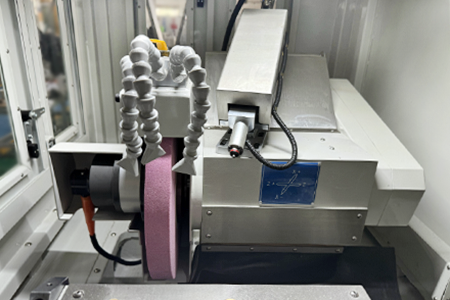

Product Introduction
1. Workbench maximum length: 600mm
2. Maximum grinding diameter: 270mm
3. Grinding wheel speed: 1650 rpm
4. Grinding wheel size (diameter × width × aperture): Φ510 × 50 × Φ127mm
5.Robot lifting capacity:10 kg
6.Max workpiece mass:5 kg
7.Beam (X-axis) material:Steel beam
8.Beam (X-axis) guide:Roller guide
9.Beam (X-axis) transmission:Timing belt
10.Beam (Y axis) material:Steel beam
11.Beam (Y axis) guide:Roller guide
12.Beam Y-axis transmission:Timing belt
13.X axis moving speed:120m/min
14.X-axis acceleration：0.8g
15.Y axis moving speed：80m/min
Optional Equipment
1. Inner hole grinding device
2. Outer diameter online automatic measuring instrument
3. End face online automatic measuring instrument
4. Magnet + paper belt filter
5. Full cover sheet metal
6. Roller sand repairing device
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
