5-axis HN560 HN580 CNC tool grinding machine

Technical Data

Items	Machine Model: HN560	Machine Model: HN580
CNC system	SYNTEC 210MA-5E	SYNTEC 210MA-5E
Processing workpiece diameter	200 mm	200 mm
Max. processing workpiece length	170mm	200mm
Max. processing workpiece  groove depth	20mm	20mm
Max. Workpiece weight	10Kg	20Kg
Grinding head Max. Power(electric spindle)	11KW	18 KW
Grinding wheels(CBN/diamond)	Φ50～Φ200mm	Φ50～Φ200mm
Grinding head spindle rotation speed(frequency regulation)	1000-8000rpm	1000-8000rpm
Grinding head vertical travel(Z axis)	360(-100-220)mm	350(-100-250)mm
Workable travel X axis/Y-axis/Z-axis	X：460 / Y：400/ Z: 360	X：520 / Y：540 / Z：350
Linear axis quick travel speed	15m/min	10m/min
Workpiece spindle rotation speed（A-axis）	500rpm	200rpm
Rotation range of A-axis	∞	360°
A axis spindle hole taper	ISO50	ISO50
Pneumatic clamping range	3~20mm	3~20mm
SCHUNK collects clamping range	3~32mm	3~32mm
Grinding head swing Max rotation speed(C-axis)	30rpm	75rpm
Rotation range of C-axis	325°（+230°~-95°）	320°（-225°~95°）
Workpiece spindle center height	150mm	135mm
Workpiece spindle radial runout	≤0.005mm	≤0.005mm
Grinding head spindle radial runout	≤0.005mm	≤0.005mm
Air cylinder clamping force adjusting range	500-580kg	440-480kg
Linear-axis resolving power	0.00lmm	0.001mm
Rotation axis resolving power	0.00l°	0.001°
Cooling motor power	3P	3P
Cooling motor capacity	200L	200L
Voltage	AC 380V 50HZ 3 phase	AC 380V 50HZ 3 phase
Total power	15KW	20KW
Machine size	1700×1520×2100mm	2200×1600×2400mm
Machine weight	4T	5T

 Product Introduction

5-axis HN560 , HN580 CNC tool grinding machine Product Introduction :

Product Introduction:

HN580 is a five-axis five-link CNC tool grinder newly developed Machine, has the excellent performance on tool grinding. It is suitable for the production or grinding of milling tools, drilling tools, forming tools etc.

With the beautiful outlook and friendly human-machine interface,the machine adopts the natural marble components to ensure tits stability during the working.

Product Features:

1. The machine adopts high precision power(12kw) direct-drive variable frequency electric spindle grinding head. The grinding wheel flange can be equipped with 2-4 pcs of grinding wheels at the same time, that meets the process requirements for grinding front, back and end faces of the tool.

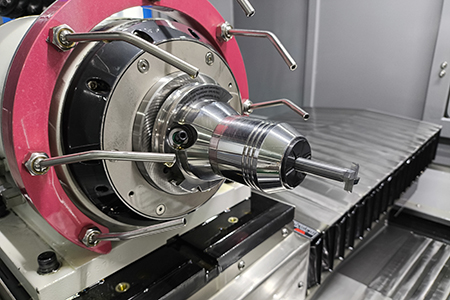

2. The workpiece spindle uses DD direct drive, and the bearing is an NSK precision spindle bearing. It is equipped with Swiss SCHAUBLIN W25 precision collects, completing with pneumatic clamping device.

3. The machine adopts SYNTEC control system and JAPAN YASKAWA servo unit, British RENISHAW LPDD precision probe, Taiwan HIWIN precision rolling linear guide, ball screw, German HEIDENHAN encoder to ensure the superior performance and working precision of the tool. Meanwhile, to further ensure its processing dimensional accuracy, the rotary axis of the machine tool is implemented with double DD direct drive full closed loop control.

4. The machine adopts totally enclosed frame (front sliding doors, left, right and back maintenance doors), hand-hold electronic hand wheel, special start and stop button, foot switch, automatic cooling system and filter tank, automatic lubrication and mist absorbing devices, alarm buzzer, electricity board, cooling air-conditioner. Operation and maintenance are simple and convenient.

5. Work piece accuracy

Grinding work piece round runout≤0.005mm

Surface roughness of the work piece≤ Ra0.2.

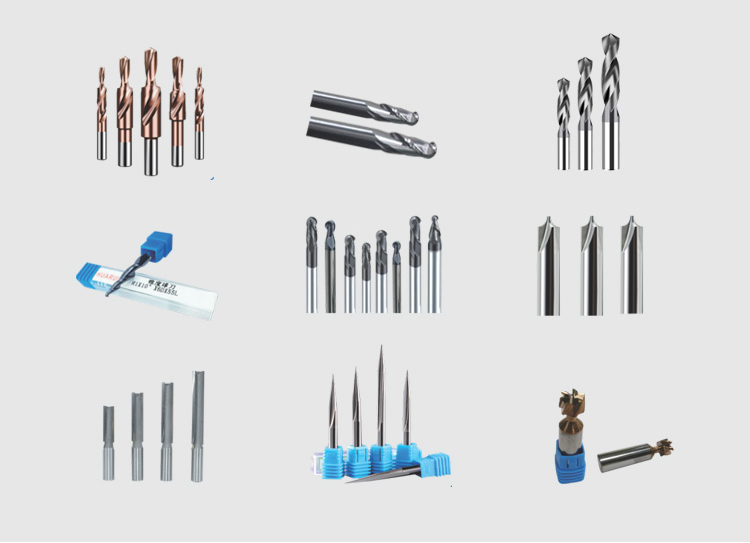

Part of grinding tool show
