Technical Data
| Items | Machine Model:GM106 |
| Grinding range | |
| Diameter range for tool production | 0.5~16mm |
| Max.diameter for tool regrinding | 50mm |
| Max.processing length | 180mm |
| Control system | |
| CNC | NUM-Flexium+68 |
| TFT liquid crystal display | 17 inch |
| Grinding software | |
| NUMROTOplus milling cutters,drills,special tools,3D simulation software | |
| Measurement system | |
| Tool measurement | 3-D Probe |
| Grinding wheel measurement | 3-D Probe |
| Grinding spindle | 0~8000rpm |
| Max.power of spindle | 13KW |
| Grinding wheels | |
| Max.wheel diameter | 125mm |
| Grinding wheels per arbour | 1-3pcs grinding wheels |
| Cooling via cooling valve(Program-controlled) | 2 valves |
| Grinding wheels interface | HSK40E |
| A-axis(Workpiece axis) | |
| A-axis | SK40 |
| Tool clamping system | Automatic |
| Drive(Direct drive) | 1000rpm max |
| Cooling | |
| Workpiece axis (A axis)/Rotation axis (C axis) | Integrated oil cooling |
| Oil mist separation device | Electrostatic |
| Oil mist interface | φ150mm |
| Axis travel | |
| Machine tool size | 1700mm*1800mm*2150mm |
| Machine tool total weight | 2000kg |
| X axis | 385mm |
| Y axis | 330mm |
| Z axis | 160mm |
| Speed X axis | 20m/min |
| Speed Y axis | 20m/min |
| Speed Z axis | 8m/min |
| Resolution A axis | 0.0001° |
| Rotation axis C axis | 310° |
| Resolution C axis | 0.0001° |
| X,Y axis | Linear Motors |
| Z axis | NUM servo motor |
| Machine dimensions | |
| Length/Width/Height | 2200mm*2200mm*2260mm |
| Weight | Appro 4200KG |
| Power supply | 3×400V-50HZ/30A |
| Power input | 19Kw |
| Air supply | ≥6bar |
| Colour | White/blue or customized |
Product Introduction
Chenglong five-axis CNC micro-tool grinder is a grinder developed for dentistry high-speed and low-speed needles, medical micro-tools, surgical instruments, medical grinding heads, industrial micro-tools and PCB micro-tools. The machine tool has the characteristics of high efficiency and high precision. It is suitable for grinding the outer circle and plane of various micro-tools, and can easily complete the grinding of various complex curves.
Applications:
Medical knives, dental needles, oral ultrasonic knives, ophthalmic scalpels, orthopedic power drills, endoscopic planers

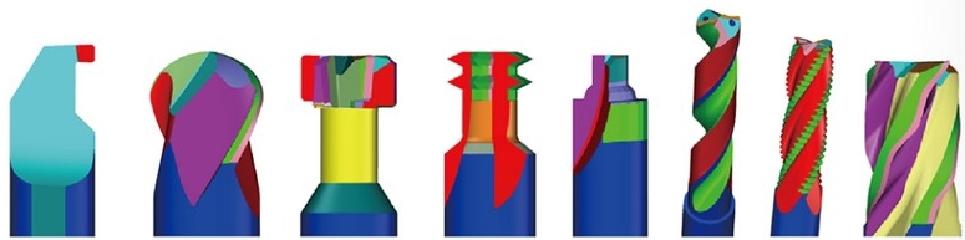

Grinding Tools Samples:
