Technical Data
| Items | Machine Model:GM100 |
| Grinding range | |
| Diameter range for tool production | 0.5~10mm |
| Max.diameter for tool regrinding | 50mm |
| Max.processing length | 110mm |
| Control system | |
| CNC | NUM-Flexium+68 |
| TFT liquid crystal display | 17 inch |
| Grinding software | |
| NUMROTOplus milling cutters,drills,special tools,3D simulation software | |
| Measurement system | |
| Tool measurement | 3-D Probe |
| Grinding wheel measurement | 3-D Probe |
| Grinding spindle | 0~8000rpm |
| Max.power of spindle | 13KW |
| Grinding wheels | |
| Max.wheel diameter | 125mm |
| Grinding wheels per arbour | 1-3pcs grinding wheels |
| Cooling via cooling valve(Program-controlled) | 2 valves |
| Grinding wheels interface | HSK40E |
| A-axis(Workpiece axis) | |
| A-axis | SK40 |
| Tool clamping system | Automatic |
| Drive(Direct drive) | 1000rpm max |
| Cooling | |
| Workpiece axis (A axis)/Rotation axis (C axis) | Integrated oil cooling |
| Oil mist separation device | Electrostatic |
| Oil mist interface | φ150mm |
| Axis travel | |
| Machine tool size | 1700mm*1800mm*2150mm |
| Machine tool total weight | 2000kg |
| X axis | 385mm |
| Y axis | 330mm |
| Z axis | 160mm |
| Speed X axis | 20m/min |
| Speed Y axis | 20m/min |
| Speed Z axis | 8m/min |
| Resolution A axis | 0.0001° |
| Rotation axis C axis | 310° |
| Resolution C axis | 0.0001° |
| X,Y axis | Linear Motors |
| Z axis | NUM servo motor |
| Machine dimensions | |
| Length/Width/Height | 1820mm*1786mm*2260mm |
| Weight | Appro 3800KG |
| Power supply | 3×400V-50HZ/30A |
| Power input | 19Kw |
| Air supply | ≥6bar |
| Colour | White/blue or customized |
Product Introduction
Chenglong five-axis CNC micro-tool grinder is a grinder developed for dentistry high-speed and low-speed needles, medical micro-tools, surgical instruments, medical grinding heads, industrial micro-tools and PCB micro-tools. The machine tool has the characteristics of high efficiency and high precision. It is suitable for grinding the outer circle and plane of various micro-tools, and can easily complete the grinding of various complex curves.
Applications:
Medical knives, dental needles, oral ultrasonic knives, ophthalmic scalpels, orthopedic power drills, endoscopic planers
Grinding Tools Samples:

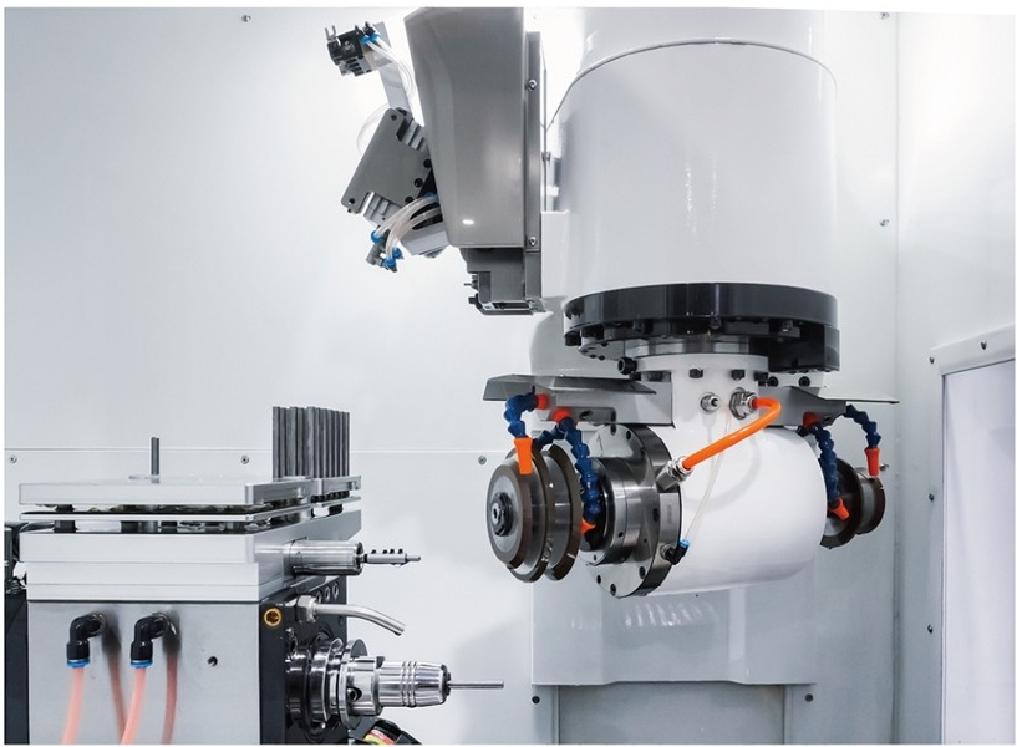

Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
