Character
Independent Servo Follow-up Support
Both loading and unloading positions are equipped with highly sensitive and independent servo follow-up support to ensure stable tube cutting and enhance cutting precision.

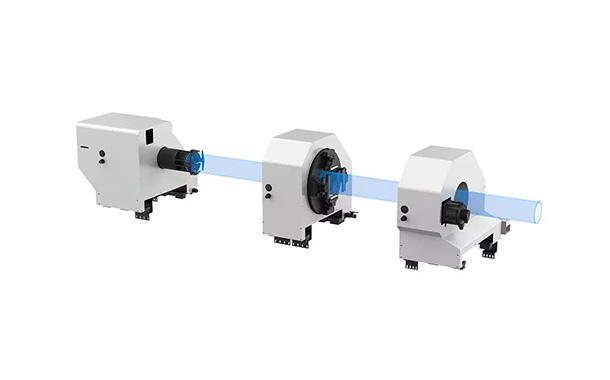

Fully Portable Three Chucks
- Fully portable three chucks structure for easy short-tailing cutting.
- The chucks are designed as two chucks are front and one chuck is rear to achieve more load.
- C3 chuck is the hollow chuck leading to blanking of complete tube.
- Standard equipped with 240mm rectangular-circle chucks and the clamping ability of rectangular tube is improved.

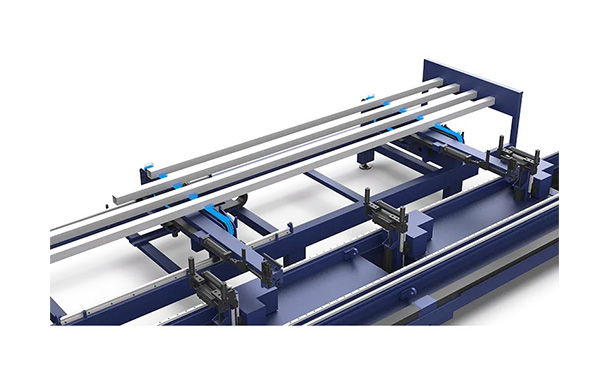

Automatic Loading(Optional)
Optional multi-functional loading support construction, which can satisfy automatic loading of round tubes, rectangular tubes, section steel and other tubes, improve loading speed and achieve efficient loading.
Technical Data
| Model | CLC3 |
| Power | 3000W6000W |
| X/Y-axis Positioning Accuracy | ±0.03mm/m |
| Cutting Capacity of Round Tube | Φ20-Φ240mm |
| Cutting Capacity of Square Tube | □20*20-□240*240mm |
| Weight of Single Tube | 300kg |
| Material type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc |
