Character

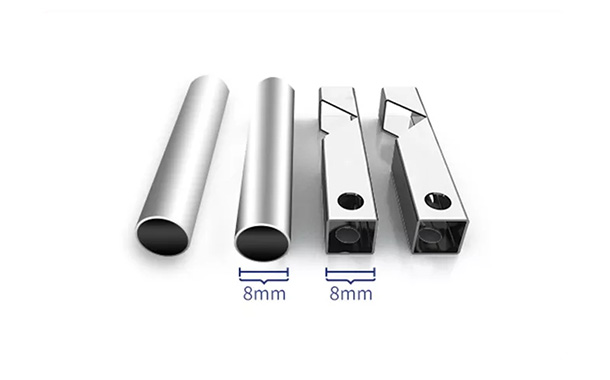

Fast and high-quality cutting of tiny tubes
Minimum diameter for round pipes:8mm
Minimum edge length of square pipes: 8mm

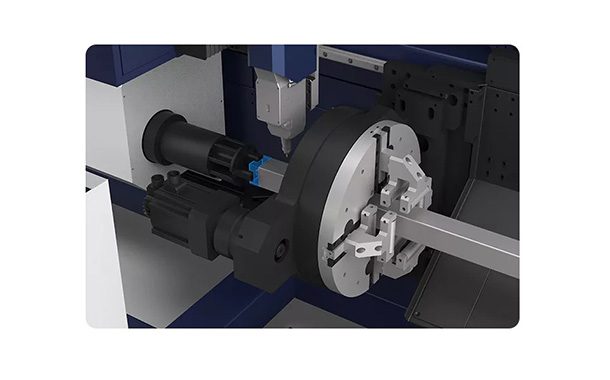

High dynamic performance
- Speed of chuck:150m/min
- Rotation speed of chuck: 150r/min
- Acceleration of chuck:1.5G
- Increasing the production efficiency and productivity , significantly reduce your lead times.

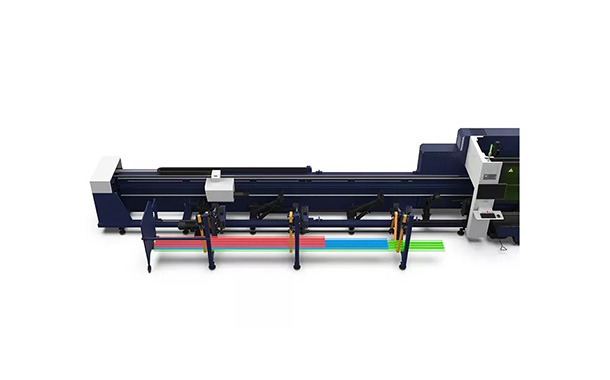

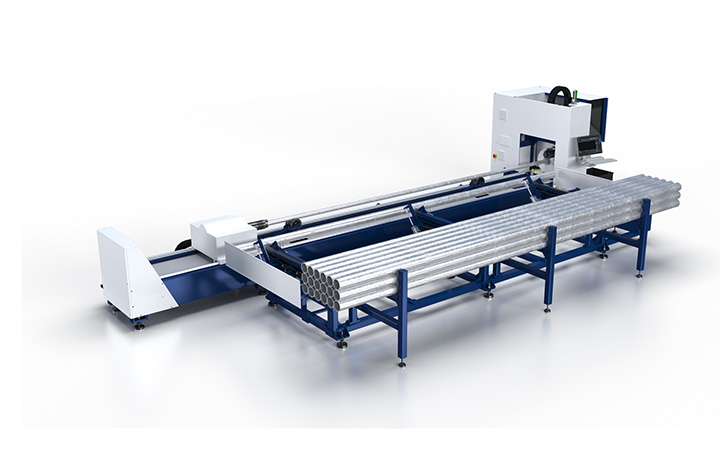

Efficient Multi-mode Loading
- CLSA1 Series matches with automatic material racks to achieve loading material in 20s.
- Automatic material racks can support the tubes with 20mm-120mm diameter and 4m-6.5m length.
- Automatic material rack is compatible with semi-automatic loading mode for loading one by one.

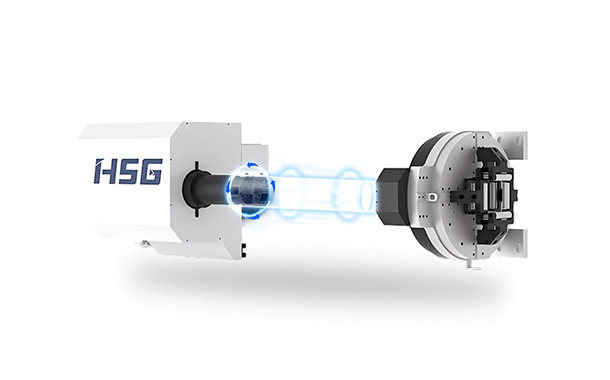

Chuck Jumping for Short Tailings
- Standard equipped with chuck jumping of the cylinder and CLSA1 Series can shorten the large amplitude of tailing length through chuck jumping.
- Jumping type of high-precision cutting can ensure the cutting accuracy of long tubes by chuck displacement.
- Optional servo chuck jumping can finish chuck jumping action accurately and efficiently.

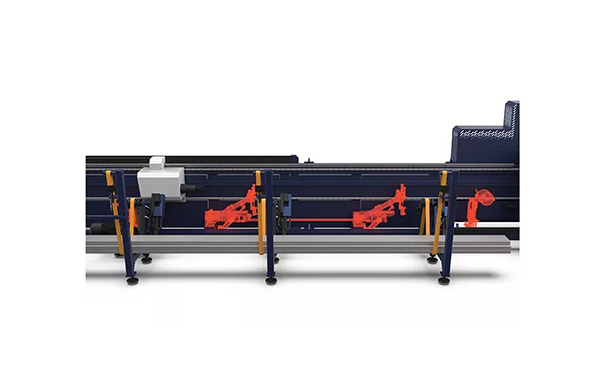

Follow-up Support for High Precision
The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.
Technical Data
| Model | CLSA1 |
| Power | 1500W-3000W |
| X/Y-axis Positioning Accuracy | ±0.05mm/m |
| Cutting Capacity of Round Tube | Φ8-Φ120mm |
| Cutting Capacity of Square Tube | □8*8-□120*120mm |
| Weight of Single Tube | 80kg |
