Character

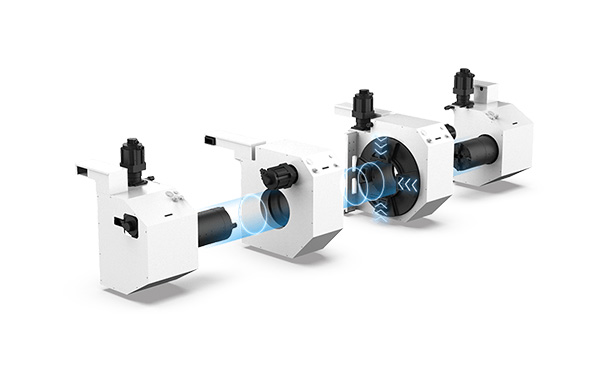

Heavy-duty pneumatic chucks for stable clamping
Maximum clamping diameter: 660mm (Round Tube)
Single tube bearing: 3000Kg

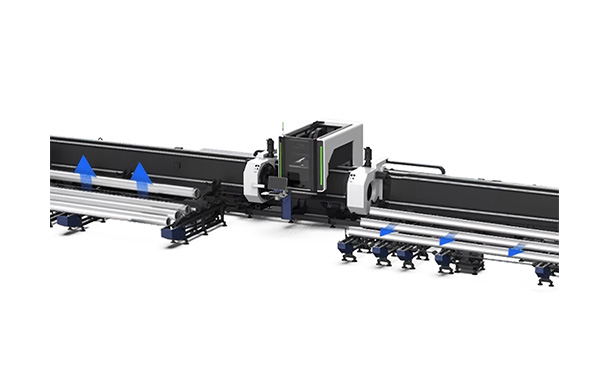

Automatic Loading and Unloading System
The system is easy for heavy-duty tube loading and unloading without shutdown waiting. The system can decrease unproductive time and avoid accident probabilities of artificial loading and unloading.

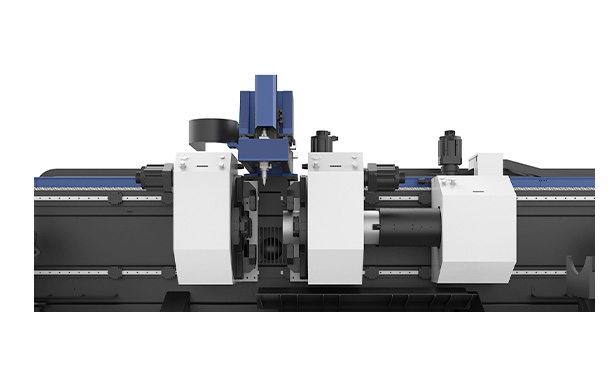

Cut with Short Tailings
Four chucks can cut tubes with short tailings and improve material utilization by reverse cutting mode.

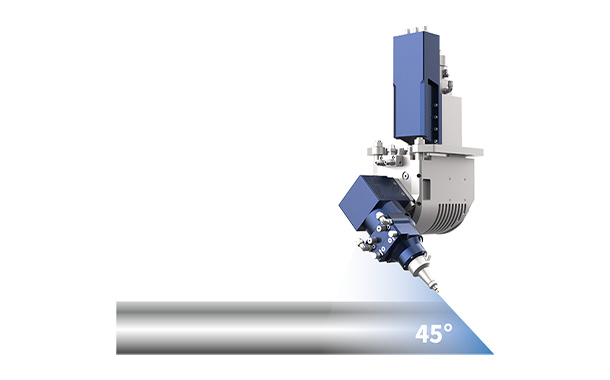

Beveling Processing
Tube material bevel cutting head (optional), which can achieve 0-45° bevel cutting.

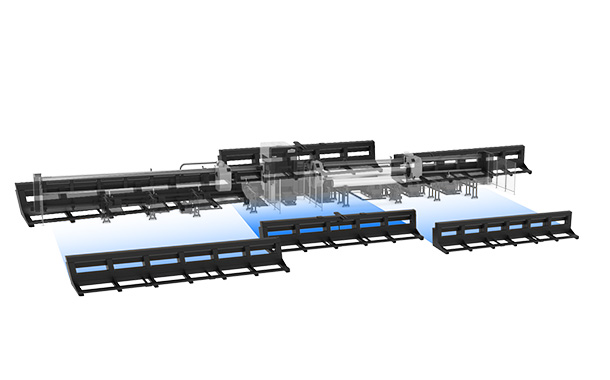

Convenient for transportation
Three-section bed body design, convenient for transportation; coaxial processing to ensure operational accuracy.
Technical Data
| Model | CL04 |
| Power | 6000W-20000W |
| X/Y-axis Positioning Accuracy | ±0.1mm/m |
| Cutting Capacity of Round Tube | Φ80-Φ660mm |
| Cutting Capacity of Square Tube | □80*80-□450*450mm |
| Weight of Single Tube | 3000kg |
| Material type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc |
