Character

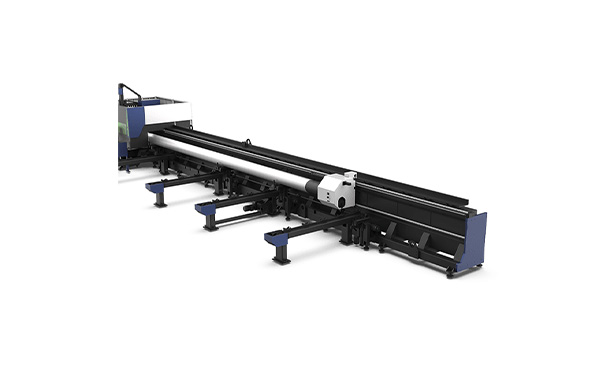

Full-stroke chucks

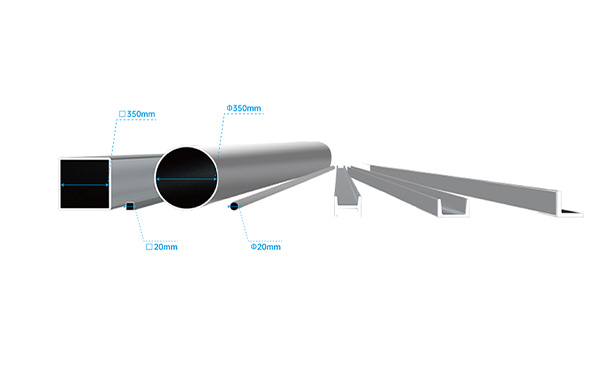

With the HSG full-stroke chucks, tubes can be manufactured across the entire clamping range from 20mm to 350mm without the need for retooling.

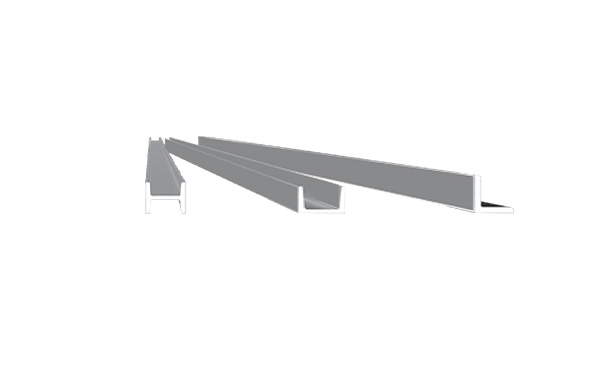

Quickly process open profiles
The machine is equipped with national-standard profile grippers as standard, which can easily cut angle steel, channel steel and H steel.
Automatic loading and unloading
Automatic loading and unloading of pipes, efficient and time-saving, shorten production preparation time.Greatly improves operational safety, saves labor and reduces production costs.

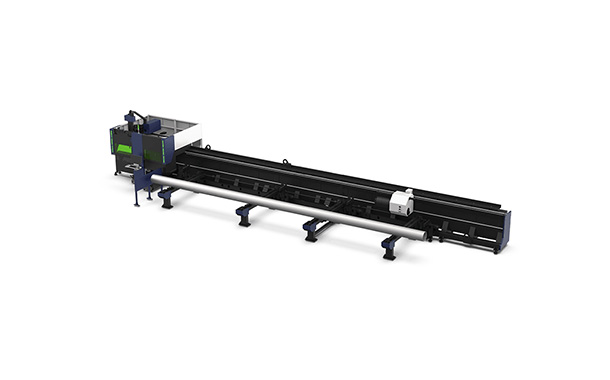

Heavy-duty tube following support system
The heavy-duty tube following support system provides all-round effective support in pipe processing and improves the accuracy of heavy pipe processing.

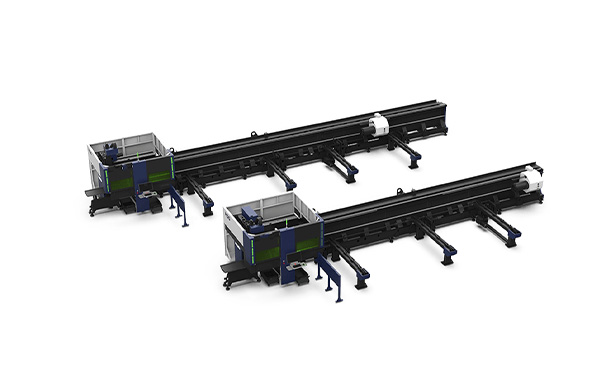

Diverse product options
It supports a variety of models to meet diverse processing needs
Optional processing pipe length: 6.5m/9m/12m
Optional single tube loading capacity: 600kg/1000kg
Technical Data
| Model | CLE3 |
| Power | 3000W-20000W |
| X/Y-axis Positioning Accuracy | ±0.03mm/m |
| Cutting Capacity of Round Tube | Φ20-Φ350mm |
| Cutting Capacity of Square Tube | □20*20-□350*350mm |
| Weight of Single Tube | 600kg |
| Material type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc |
