Character

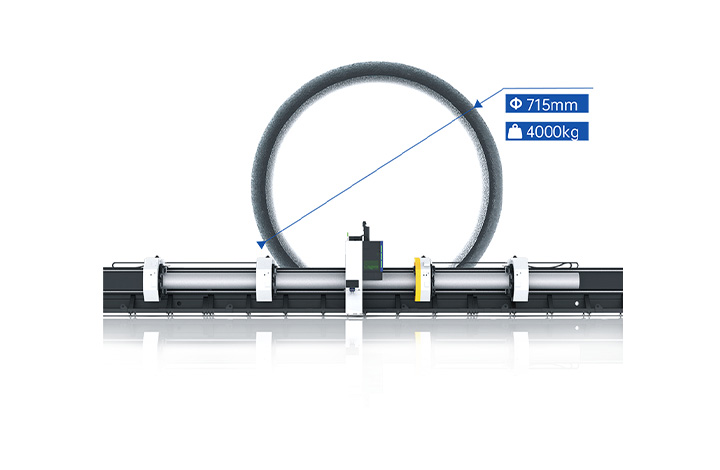

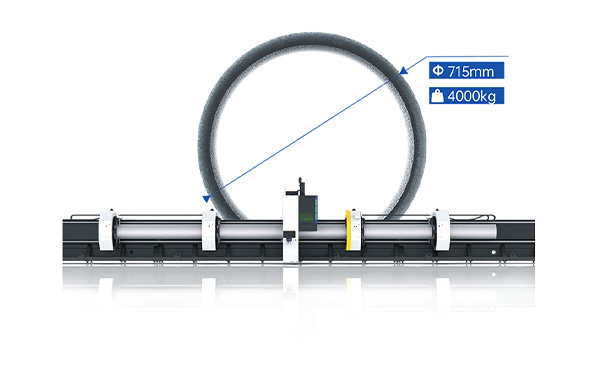

Max Heavy-duty Tube Processing Ability
The machine can process tube diameters in 715mm.
Tube Length：16m
Weight per Tube: 4000kg

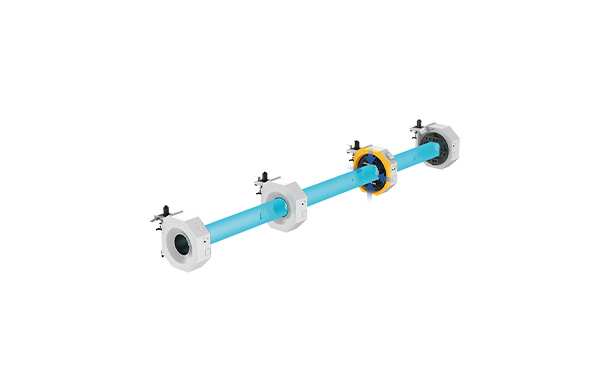

Innovate 4+1 Chucks Structure
- C3 chuck and C4 chuck are combined to achieve double support;
- There are 4 points clamping at loading section and the load bearing improved significantly
- Clamping near the cutting area at 2 points which the accuracy is effectively guaranteed.
Intelligent digital chuck
- The chuck and the control system can communicate with each other to achieve full closed-loop control.
- The machine has functions in jaw state detection, tube size measurement and adaptive adjustment of clamping force.

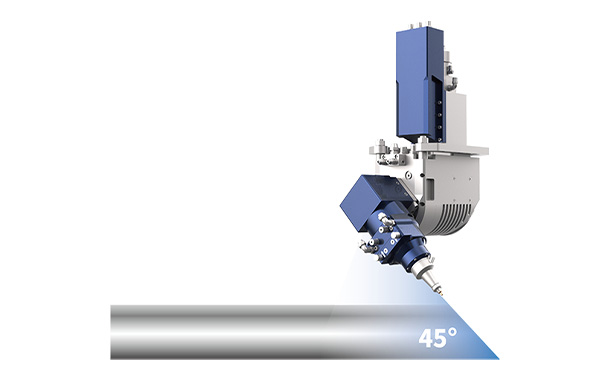

Beveling Processing
Beveling tube cutting head to achieve 0-45°beveling cutting.

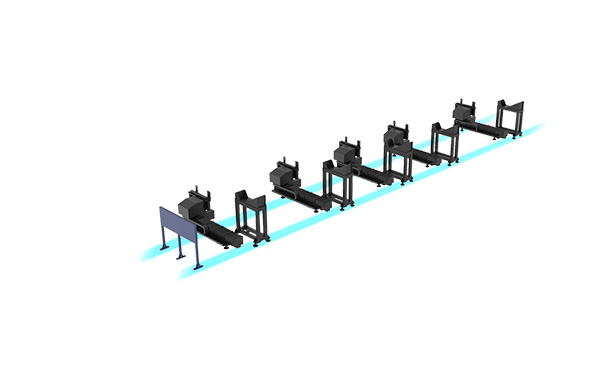

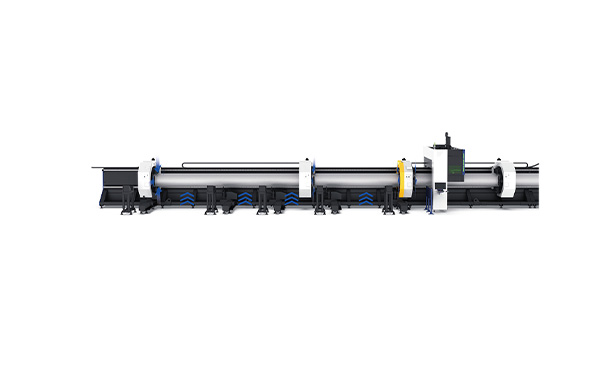

Standard automatic loading and unloading mechanism for heavy tubes
Realize automatic loading and unloading of heavy tubes, saving labor and reducing the risk of
accidents that may occur with manual loading.
Materials are loaded simultaneously while
unloading, eliminating waiting time and improv- ing production efficienc
Technical Data
| ·Model | ·CLMAX01 |
| ·Power | ·12000W-20000W |
| ·X/Y-axis Positioning Accuracy | ·±0.1mm/m |
| ·Cutting Capacity of Round Tube | ·Φ120-Φ715mm |
| ·Cutting Capacity of Square Tube | ·□120*120-□500*500mm |
| ·Weight of Single Tube | ·4000kg |
| Material type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc |
