Character

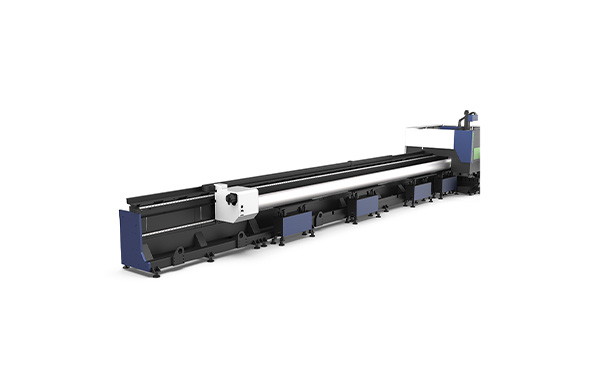

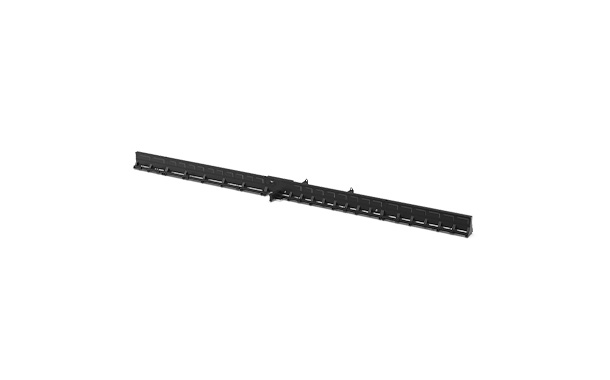

L-shaped heavy-duty lathe bed
Engineered for large and heavy tubes from the ground up,
Heavy-duty side-mounted design, the machine weighs nearly 20 tons,robust and reliable.

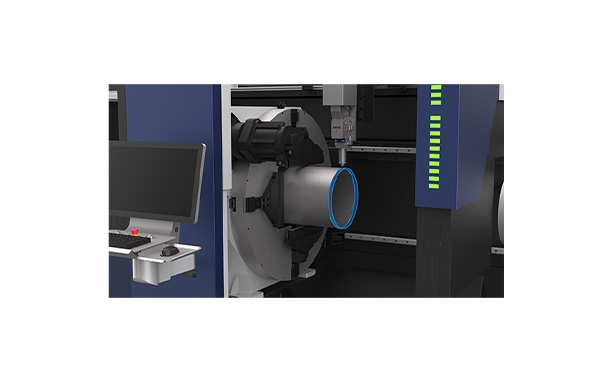

The chuck has good sealing

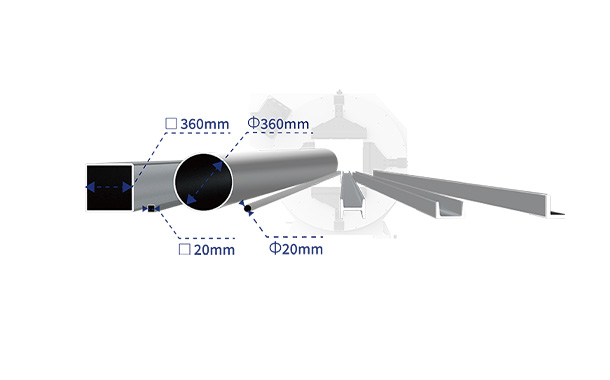

With unique intelligent chucks, tubes can be manufactured across the entire clamping range from 20mm to 360mm without the need for retooling.
The chuck has good sealing, avoids cutting smoke and slag pollution, and ensures the stability of the equipment and the long service life.

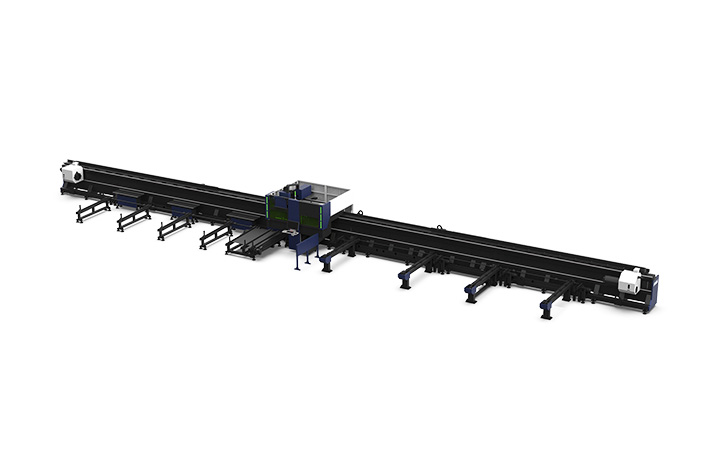

Automatic loading and unloading
Automatic loading and unloading of heavy pipes, efficient and time-saving, shorten production preparation time.Greatly improves operational safety, saves labor and reduces production costs.
Heavy-duty tube following support system
The heavy-duty tube following support system provides all-round effective support in pipe processing and improves the accuracy of heavy pipe processing.

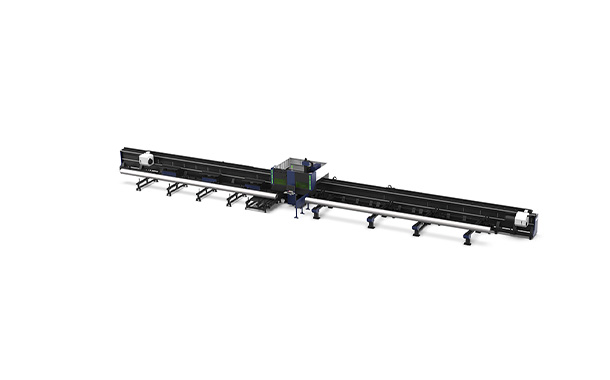

Zero tailing cutting
Multi-chuck reversing movement realizes zero tailing for heavy pipe cutting and saves material costs.

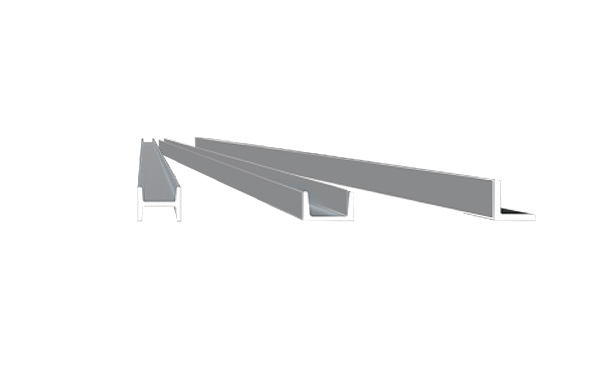

Quickly process open profiles
The machine is equipped with national-standard profile grippers as standard, which can easily cut angle steel, channel steel and H steel.

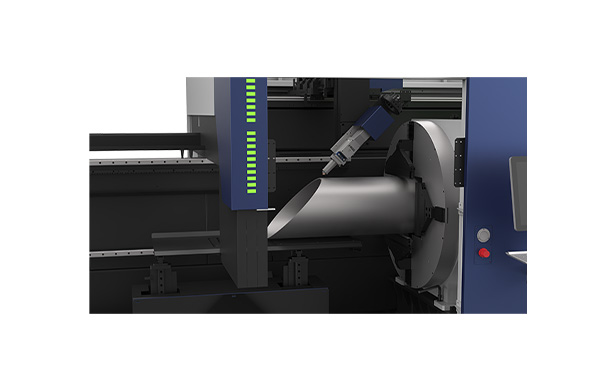

Expand your part spectrum
Expand your part spectrum and achieve better tube splicing with high-quality bevel cuts up to 45°.
Technical Data
| Model | CLA3 |
| Power | 6000W-20000W |
| X/Y-axis Positioning Accuracy | ±0.05mm/m |
| Cutting Capacity of Round Tube | Φ20-Φ360mm |
| Cutting Capacity of Square Tube | □20*20-□360*360mm |
| Weight of Single Tube | 1200kg |
| Material type | Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc |
