Description

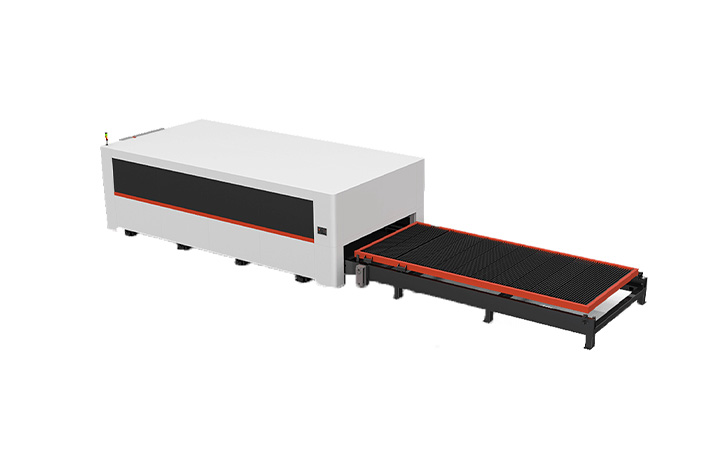

NEO series High Laser Power fiber Laser Cutting Machine products are the preferred models of metal material process- ing industry,with powerful cutting ability,”flying”cutting speed,high stability,high quality processing,low operation cost and high adaptability.
Meet 100% metal material processing needs
Reduce procurement costs and reduce maintenance costs
One of the mainstream purchase models for market renewal
UHP / 12000-60000W
Acceleration: 3.0G / Max. Positioning Linkage Speed (m / min) 168m/min
Continuous Production / Stable Quality
Remote Diagnosis / Intelligent Anti-Collision
Safe and Environmental Friendly / The entire system comes standard with an MES data interface, supporting the expansion of an automated.
Technical Data
| MODEL | NEO3115 | NEO4122 | NEO6125 | NEO4122 | NEO1025 | NEO1225 | |
| Processing area (mm) | X | 3100 | 4100 | 6100 | 8100 | 10080 | 12100 |
| Y | 1 530 | 2225 | 2570 | 2570 | 2570 | 2570 | |
| Z | 350 | 350 | 365 | 365 | 365 | 365 | |
| Max. positioning llinkage speed (m/min) | 169 | 169 | 169 | 169 | 169 | 169 | |
| Acceleration | 3.0G | 3.0G | 3.0G | 3.0G | 3.0G | 3.0G | |
| Positioning accuracy Pa*(mm) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
| Repeated positioning accuracy Ps*(mm) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | |
| Laser power | 12000W—60000W | ||||||
Character
High Speed Cutting, 600 Holes/Min
Continuous Production
Stable Quality

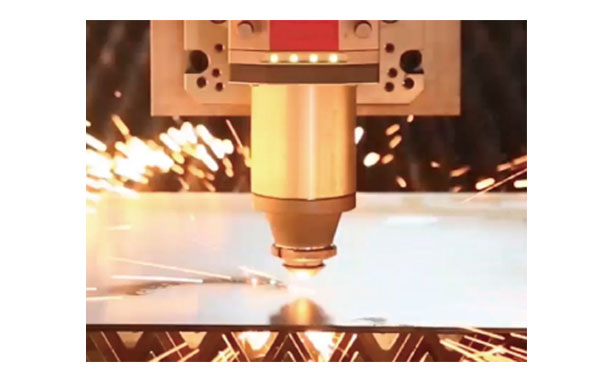

Ultra High Power
Laser Power Ranges From 12kw -60kw

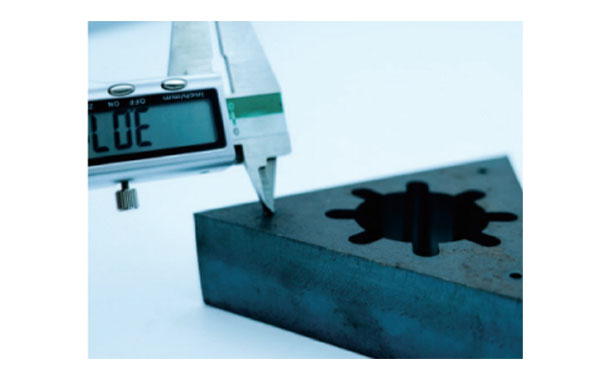

For Thick Plates

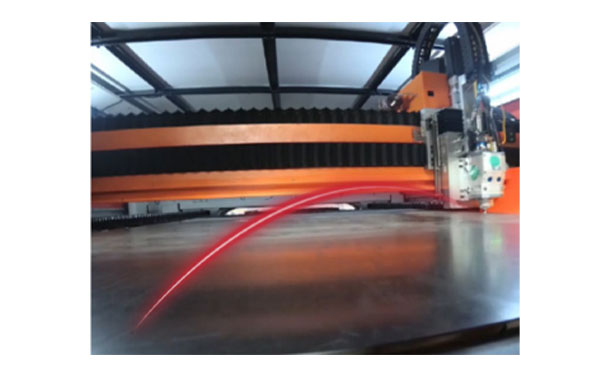

Full area high speed positioning
Repeated positioning accuracy is
0.025 Ps*(mm)
0-45°bevel cutting, including V bevels, X bevels, Y bevels etc.
Samples
