Description
Exchanging Workbench fully enclosed bevel laser cutting machine is mainly a processing equipment used for bevel cutting needs of thin special steel and stainless steel in automobile manufacturing,medical machinery and other industries.lt adopts a fully enclosed exchanging table structure, which has the characteristics of high speed.high precision and safety.
01
High Efficiency
With high dynamic performance, high running speed,loading and unloading through exchanging table ,high processing speed;
02
High Precision
Bevel cutting angle error ± 1°, accuracy error ±1 mm;
03
Safety
Fully enclosed structure, preventing high-speed transmission parts and laser radiation from harming the human body.
- Integral welded structure bed : the beam is processed by multiple ageing treatments, and has high dynamic response. It is equipped with high-precision and high-efficiency structure system in transmission part, which has good rigidity and high precision, ensuring long-term high-precision operation of the equipment.

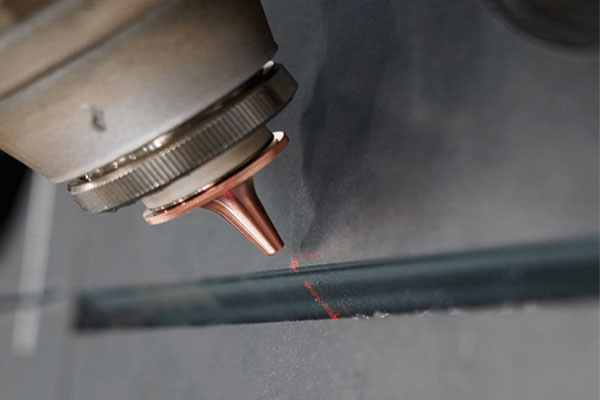

- Independent R&D Fiber laser machine : Strong cutting and high efficiency, special laser cutting control system cooperatively developed with CNC system, which is a high-end high-tech fiber laser bevel cutting machine integrating laser cutting, precision machinery, CNC technology and other advanced technologies.
Technical Data
| Project Main Parametrs | |
| Laser Power 6000-30000W | |
| Basic Specification | Focal Length F200~F300mm automatic focus |
| Operating System Windows 10(Chinese and English) | |
| Display System 23.6-inch touch display (mouse operation supported) | |
| Machining Range Vertical Cutting Metal material arbitary shape workpiece cutting,marking,etc. | |
| Machining Range Bevel Cutting Carbon steel/stainless steel/aluminum sheet V/Y/X/K bevel cutting ±45° | |
| Carbon Steel Plate Cutting Thickness(O2) Vertically cut MAX50mm Bevel cut MAX 25mm | |
| Processing Capability | Stainless Steel Plate Cutting Thickness(N2) Vertically cut MAX 50mm Bevel cut MAX 16mm |
| Aluminum Steel Plate Cutting Thickness(N2) Vertically cut MAX100mm Bevel cut MAX 20mm | |
| Processing Stroke | XAxis Stroke MAX 28m(cutomizable) |
| YAxis Stroke MAX 4m(cutomizable) | |
| ZAxis Stroke 300mm | |
| XAxis Positioning Accuracy 0.1mm/10m(≤10m),0.2mm/full length | |
Processing Accuracy | YX Axis Positioning Accuracy 0.05mm |
| XAxis Repeated Positioning Accuracy 0.05mm/10m(≤10m),0.1mm/full length | |
| YAxis Repeated Positioning Accuracy 0.03mm | |
| Processing Speed | Maximum Acceleration 1.0G |
| XY Axis Maximum Positioning Speed 80m/min | |
| XY Axis Maximum Linkage Positioning Speed 110m/min | |
Power | Number of Phases 3 |
| Rated Voltage 380V | |
| Frequency 50Hz | |
| Total Power Supply Protection Level IP54 | |

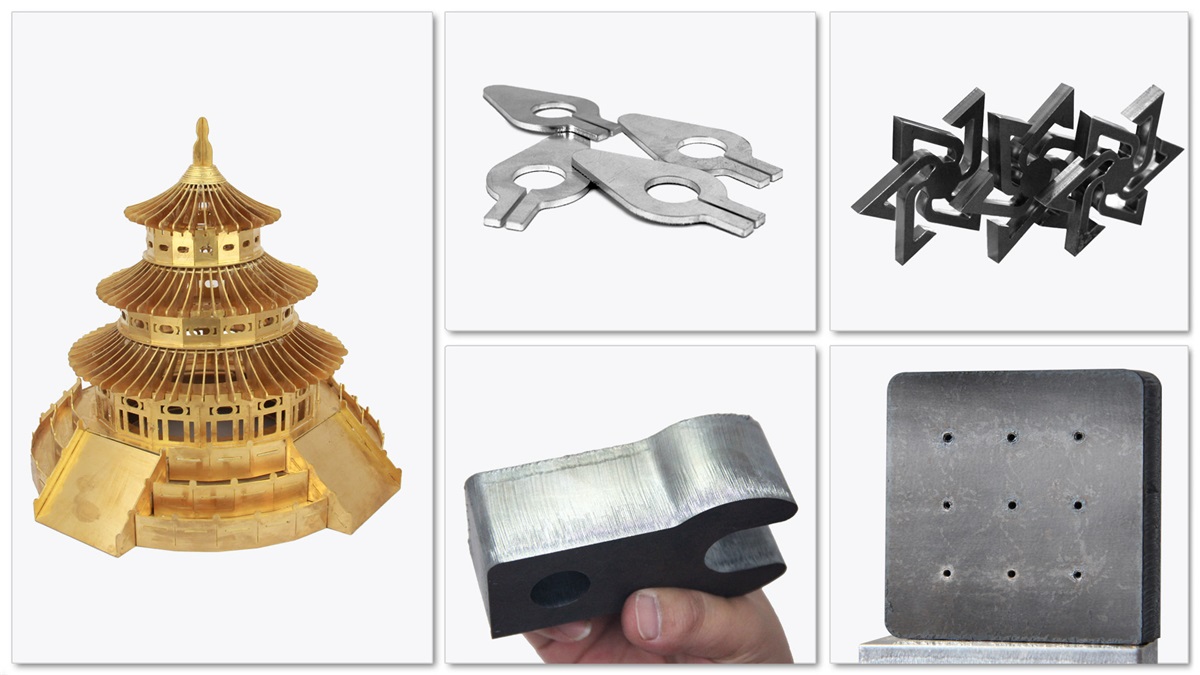

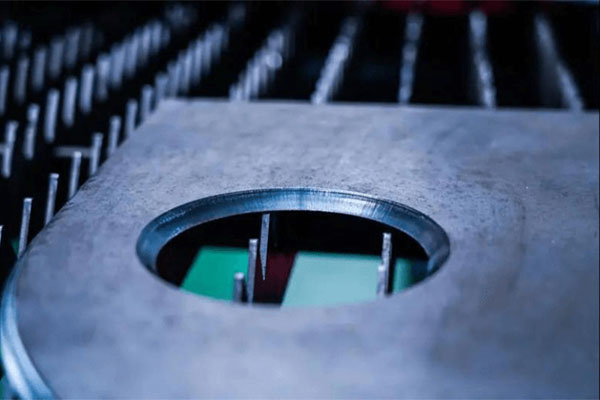

Cut samples
