Description

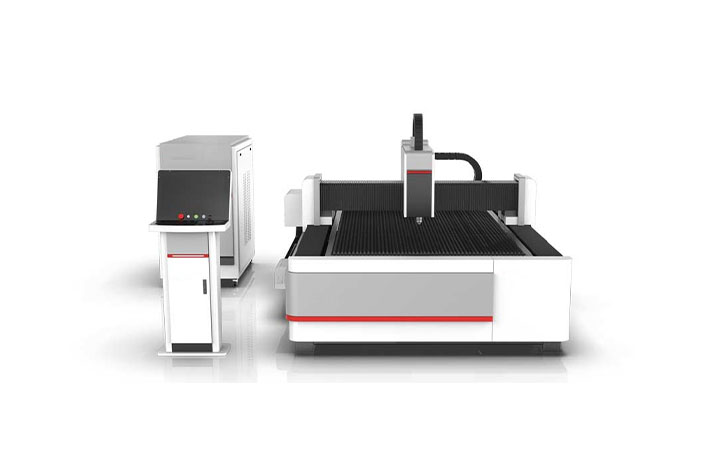

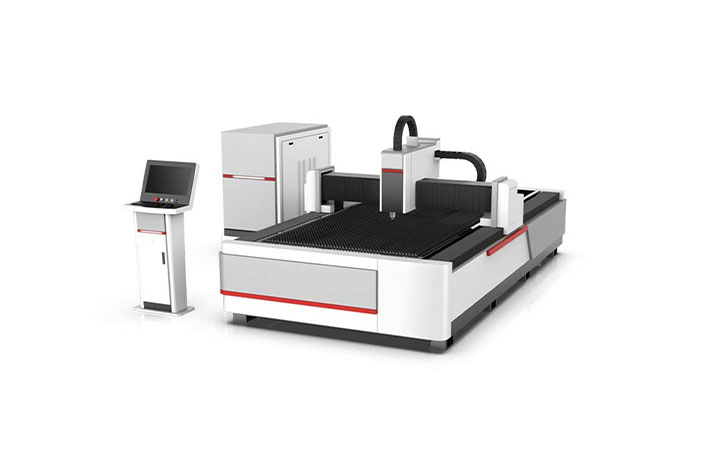

Orion series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w) for cutting steel, aluminum, titanium, alloys, brass, copper, iron and etc. Now this budget laser cutting machine offers low price with the best service and support.
It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals.

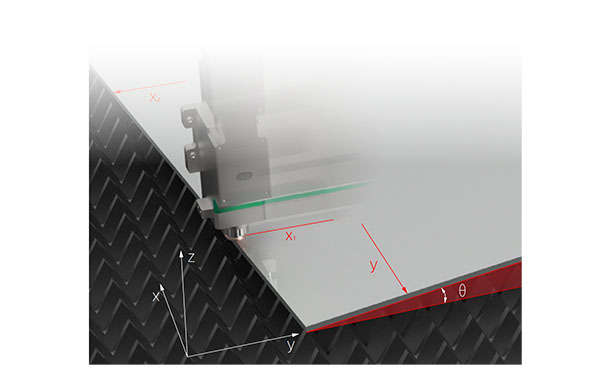

Three point edge finding
The inclination angle and origin of sheet metal are sensed through automatic edge-finding to avoid waste and save time

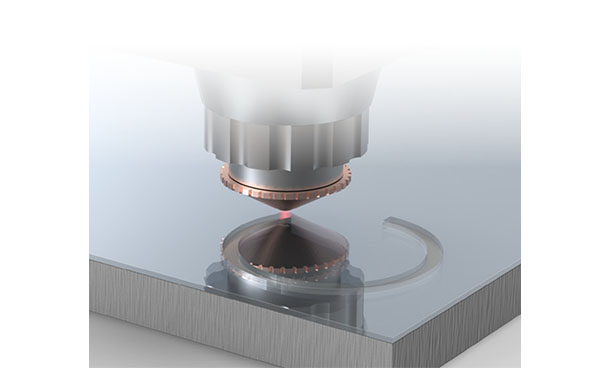

Membrane removal process
The sequence of film removal and pre perforation can be set flexibly and make workpiece cutting more perfect

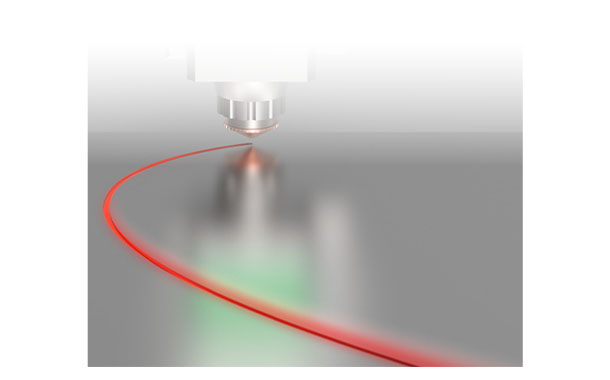

Vibration suppression
One key quick setting can easily solve the vibration problem of thick plate processing
Small Size, Bulk Transport
Open-type structure with a single platform, loading from the front, left and right sides, only takes one day to get started.

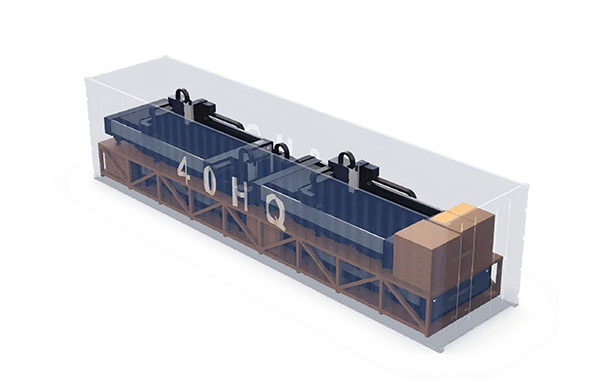

Ship four ORION3015 in one 40HQ standard container, as a result, it can save overseas freight and fit for customers who prefer to bulk orders.
Technical Data
| MODEL | ORION3015 | ORION4015 | ORION6015 | ORION8015 |
| Cutting Area(L*W) | 3000mm*1500mm | 4000mm*1500mm | 6000mm*1500mm | 8000mm*1500mm |
| Laser Source | Fiber &1000W-60000W | |||
| CNC System | FSCUT | |||
| Max Moving Speed | 120 m/min,Acceleration is 1.0 G | |||
| Position Accuracy (X and Yaxis) | 0.02mm | |||
| Reposition Accuracy | 0.03mm | |||
| Power Supply Requirement | 380V50/60 Hz | |||

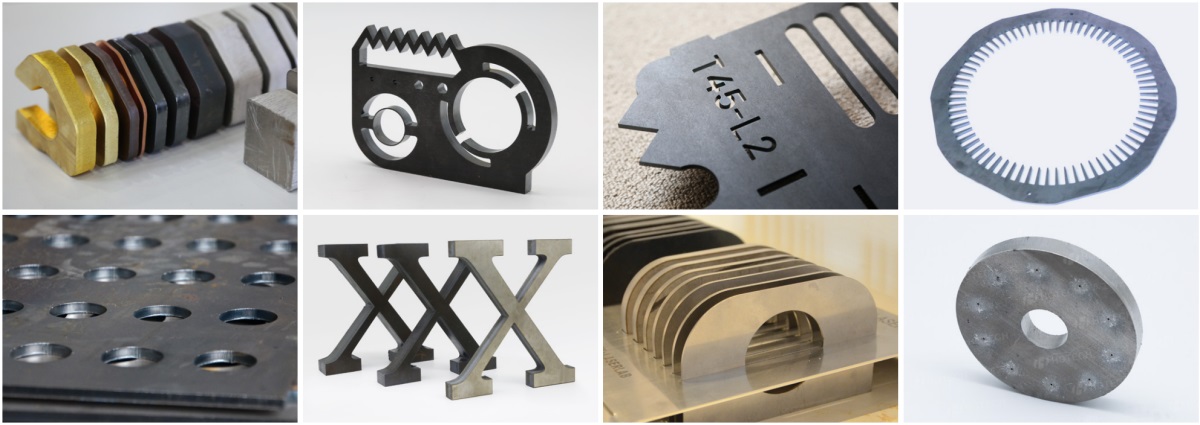

Samples
