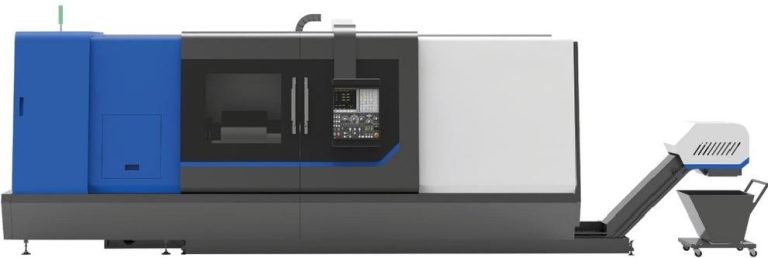

Slant Bed CNC Pipe Threading Lathe

Introduction:

This series of slant bed CNC lathes represents high-precision,high-efficiency automated machine tools.Equipped with advanced features such as multi-station servo or live tooling turrets,they are capable of machining straight cylinders,tapered cylinders,arcs,various threads,and complex workpieces like
worms.Known for their simple programming,reliable structure,user-friendly operation,and high level of automation,these machines are widely used as efficient CNC processing equipment in the field of pipe fittings,including oil pipes etc.

Technical Data:

主要技术参数		SPECIFICATION	UNIT	SCL1319	SCL1322	SCL1325	SCL1327	QKY1330J	QKY1335J
加工范围 Capacity	床身上最大回转直径	Swing over bed	mm	630	630	800	800	800	800
	最大加工直径	Max.turning diameter	mm	500	500	690	690	640	640
	横滑板上最大回转直径	Swing over cross slide	mm	540	540	630	630	720	720
	最大工件长度	Distance between centers	mm	600	600	600	600	600	600
	床身倾斜角度	Slant bed layout angle	。	45	45	45	45	45	45
主轴Spindle	主轴孔径范围	Spindle bore	mm	206	225	255	280	305	355
	主轴鼻端型号	Spindle nose type	一	短圆柱/Short cylinder	短圆柱/Short cylinder	r短圆柱/Short cylinder	短圆柱/Short cylinder	A2-20	A2-20
	棒料通过直径	Bar material through	一	190	220	250	275	295	350
	主轴最高转速	Spindle speed range	rpm	550	550	450	450	350	350
刀架Turret	刀架类型	Turret/tool post	–	4工位电动刀架/NC turret 4 position
	刀具尺寸	Tool shank size	mm	40×40	40×40	40×40	40×40	40×40	40×40
进给 Feed	X轴行程	Xaxis travel	mm	350	350	350	350	400	400
	Z轴行程	Zaxis travel	mm	900	900	900	900	900	900
	x轴快速进给速度	Xaxis rapid traverse	mm/min	4000	4000	4000	4000	4000	4000
	Z轴快速进给速度	Z axis rapid traverse	mm/min	6000	6000	6000	6000	6000	6000
尾座Tailstock	液压尾座套筒直径	Tailstock quill diameter	mm	不配尾座Without tailstock
	液压尾座套筒锥度	Tailstock quill taper	一	一	–	–	一	一	一
	液压尾座套筒行程	Tailstock quilltravel	mm	–	–	–	–	–	–
电机Motor	主轴电机	Main spindle motor	kW	22	22	22	22	30	30
	冷却泵电机	Coolant pump motor	kW	0.37	0.37	0.37	0.37	0.37	0.37
尺寸Dimension	宽度W×高度H	Width xHeight	mm	2250X2350	2250X2350	2250X2350	2250X2350	2350×2350	2350×2350
	.长度L(含排屑器)	Length(chip conveyor included)	mm	5400	5400	5850	5850	6000	6000
重量Weight	机器净重	Net weight	T	10.3	10.5	11.3	11.5	12.5	12.5

 Features:

• Big spindle bore and double chuck to ensure process big diameter pipe
• Double pneumatic chucks ensure hold workpiece stable and efficiency
• One-piece bed adopts high strength iron to ensure rigidity and precision
• Ultrasonic frequency quenched guide-ways ensure good wear-resistance
• Carriage and guide-way contact surface use Turcite B to maintain accuracy

Accessories:

OPTIONAL CONFIGURATIONS

CNC systems from Siemens,Fanuc,Guangzhou CNC(GSK), and KND etc.;Live tooling turret;Live tools.
