Introduction:

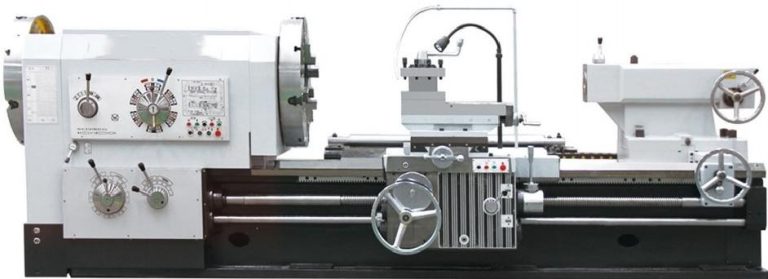

Q13 series pipe threading lathe mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore,end face of shafts and disks,this series is equipped with taper guide bar device which enables this series to process taper thread,this series is widely used in industries including petroleum exploiting,minerals mining,chemical piping and geological prospecting,for processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Technical Data:
| 主要技术参数 | SPECIFICATION | UNIT | Q1327 | Q1332 | Q1338 | Q1343 | Q1350 | |
| 加工范围 Capacity | 床身上最大回转直径 | Swing over bed | mm | 1000 | 1000 | 1000 | 1000 | 1200 |
| 横滑板上最大回转直径 | Swing over cross slide | mm | 610 | 610 | 610 | 610 | 710 | |
| 最大工件长度 | Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| 加工管螺纹直径范围 | Pipe threading range | mm | 130273 | 190-320 | 190-380 | 270-430 | 330-510 | |
| 主轴 Spindle | 床身导轨宽度 | Guideway widlh | mm | 755 | 755 | 755 | 755 | 765 |
| 床身承重范围 | Max.load capacity | T | 6 | 6 | 6 | 6 | 6 | |
| 主轴孔径范围 | Spindle bore | mm | 280 | 330 | 390 | 440 | 520 | |
| 主轴转速级数 | Spindle speed steps | – | 正转12档FWD.12 steps | 正转9档FWD.9 steps | 正转9档FWD.9 steps | 正转9档FWD.9steps | 正转9档FWD.9steps | |
| 主轴转速范围 | Spindle speed range | rpm | 16-380 | 7.5-280 | 6-205 | 4.9-180 | 6-205 | |
| 卡盘规格 | Chuck | mm | G800手动四爪U800manualfourjaw | 中780手动四M1780 mamua fourjaw | 中850手动四mL850 manual fourjan | 1000手动四TV1000manual fourjawr | ||
| 刀架Turret | 刀架类型 | Turret/tool post | – | 4工位刀架Manual 4 position | ||||
| 刀具尺寸 | Tool shank size | mm | 45×45 | 45×45 | 45×45 | 45×45 | 45×45 | |
| 进给 Feed | 区轴行程 | Xaxis travel | mm | 520 | 520 | 520 | 520 | 520 |
| Z轴行程 | Zaxis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | |
| 区轴进给级数范围 | Xaxis feed grade/range | mmr | 40/0.05-1.5 | 32/0.05-0.75 | 32/0.05-0.75 | 32/0.05-0.75 | 32/0.05-0.75 | |
| Z轴进给级数范围 | Zaxis feed grade/range | mmr | 40/0.1-3 | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | |
| 区轴快速进给速度 | ×axis rapid traverse | mm/min | 1870 | 1870 | 1870 | 1870 | 1870 | |
| Z轴快速进给速度 | Zaxis rapid traverse | mm/min | 3740 | 3740 | 3740 | 3740 | 3740 | |
| 公制螺纹种类范围 | Metric thread gradelrange | mm | 30/1-30 | 23/1-15 | 23/1-15 | 23/1-15 | 23/1-15 | |
| 英制螺纹种类范围 | Inch thread gradelrange | T.P.I | 2728-1 | 22/28-2 | 22/28-2 | 22/28-2 | 22/28-2 | |
| 尾座套筒直径 | Tailstock quill diameter | mm | 160 | 160 | 160 | 160 | 中160 | |
| 尾座Tailstock | 尾座套筒锥度 | Tailstock quil taper | – | MT6 | MT6 | MT6 | MT6 | MT6 |
| 尾座套筒行程 | Tailstock quil ravel | mm | 300 | 300 | 300 | 300 | 300 | |
| 电机Motor | 主轴电机 | Main spindle motor | kW | 22 | 22 | 22 | 22 | 22 |
| 快速进给电机 | Rapid traverse motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| 冷却泵电机 | Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |
| 尺寸Dimension | 宽度W×高度H | Width x Height | mm | 2100×1600 | 2100×1650 | 2100×1700 | 2100×1700 | 2100×1850 |
| 长度L | Length | mm | 4800/6300 | 4900/6400 | 4900/6400 | 5000/6500 | 5000/6500 | |
| 重量Weightl | 机器净重 | Net weight | T | 10.0/11.5 | 11.5/13.0 | 12.8/14.3 | 13.0/14.5 | 15.0/16.5 |
| 敬请注意：床身长度可根据客户的实际需要进行定制。Please note:machine bed length can customize according to real work demand. | ||||||||
Features:
- Big spindle bore and double chuck allows clamp and process big diameter pipes.
- Integral machine bed adopts high strength iron to realize high rigidity and precision.
- Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
- Equipped with taper guide bar device this enables the machine to process taper threads.
Advantages:
Continuous Innovation
High-tech enterprises, with a number of mature technical teams, annual research and development funds of 2 million, annual research and development of more than 12 new products, 20 national patent technology, continuous innovation.
6S Workshop Standard
36000 ㎡ workshop, 6S workshop standard, workshop through the ISO9001 quality system certification, with complete production equipment, products leave the factory after raw material inspection, process inspection, finished product inspection, products in line with GB and CE standard certification.
Self-built the Factory
Self-built the factory, through the whole industry chain, perfect casting factory, sheet metal factory, CNC machining center, cutting center, processing plant, accessories, the whole process of independent design and development, further reduce the cost, guarantee quality and improve the cost performance.
