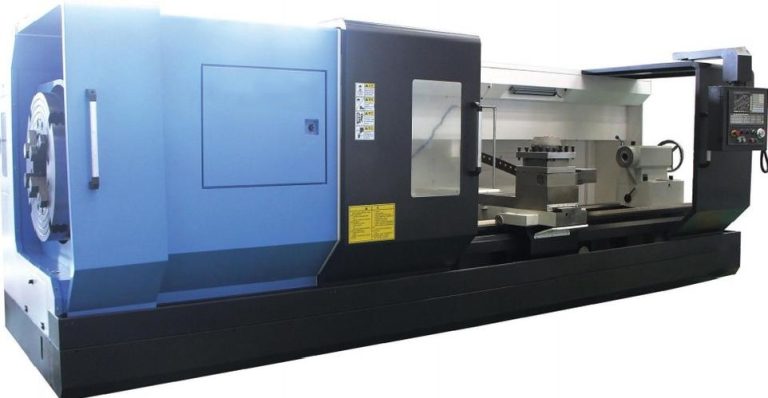

CNC Pipe Threading Lathe CLD13 series 755 guideway

Introduction:

This series of CNC pipe thread lathes is primarily designed for machining internal and  external threads on pipeline workpieces.Additionally,it incorporates the functional- ities of a standard CNC lathe,enabling the machining of outer diameters,inner holes, and end faces for shaft-type and disc-type workpieces.These machines are widely

used in the petroleum industry for processing and repairing workpieces such as drill pipes,couplings,and casings.They are also applicable in industries including geologi- cal exploration,mineral mining,chemical smelting,pipeline network construction,mechanical manufacturing,and shipbuilding.

Technical Data:

主要技术参数		SPECIFICATION	UNIT	CLD1325	CLD1330	CLD1335
加工范围 Capacity	床身上最大回转直径	Swing over bed	mm	800	900
	横滑板上最大回转直径	Swing over cross slide	mm	435	535
	最大工件长度	Distance between centers	mm	1000-3000	1000-3000
	加工管螺纹直径范围	Pipe threading range	mm	50-235	110-290	110-340
	床身导轨宽度	Guideway width	mm	755	755	755
	床身承重范围	Max.load capacity	T	5	5	5
主轴  Spindle	主轴孔径范围	Spindle bore	mm	240	305	355
	主轴转速级数	Spindle speed steps	–	无极变速/Stepless	无极变速/Stepless
	主轴转速范围	Spindle speed range	rpm	90-450	90-350	90-350
	卡盘规格	Chuck	mm	φ630电动复合四爪卡盘/φ6304-jaw electric	φ780电动复合四爪卡盘/φ7804-jaw electric
刀架Turret	刀架类型	Turet/tool post	–	4工位电动刀架NC turet 4 position	4工位电动刀架NCturet 4 position
	刀具尺寸	Tool shank size	mm	32×32	40×40	40×40
进给 Feed	X轴行程	Xaxis travel	mm	480	480	480
	Z轴行程(无尾座)	Z axis travel(without tailstock)	mm	1000-3000	1000-3000	1000-3000
	X轴快速进给速度	Xaxis rapid traverse	mm/min	4000	4000	4000
	Z轴快速进给速度	Z axi rapid traverse	mm/min	6000	6000	6000
电机Motor	伺服主轴电动机	Main spindle motor	kW	22	22	22
	冷却泵电机	Coolant pump motor	KW	0.25	0.25	0.25
尺寸Dimension	宽度W×高度H	Widthx Height	mm	2050×2050	2050×2050	2050×2050
	长度L	Length	mm	3952/5950	3952/5950	3952/5950
重量Weight	机器净重	Net weight	T	8.1-10	8.9	10.9

 Features:

• High-quality,high-strength cast iron integrated bed ensures excellent rigidity and high precision.
• Guide rails urfaces undergo super-frequency quenching treatment,providing high hardness and extended service life.
• The carriage adopts plastic-coated guide rail surfaces,offering superior wear resistance and high precision.
• Large spindle bore diameter for enhanced throughput,and dual chucks ensure stable workpiece clamping.

Accessories:

STANDARD CONFIGURATION

4-station electric turret; 3-jaw chuck;Manual tailstock;

Automatic centralized lubrication; Cooling system; Semi-enclosed protective cover.

OPTIONAL CONFIGURATIONS

CNC systems from Siemens,Fanuc,Guangzhou CNC(GSK),and KND etc.;

Quick-change tool post or horizontal turret;

Pneumatic chuck;

Hydraulic tailstock;

Fully enclosed protective cover
