Technical Data
| Items | Unit | Machine Models | |||||||||
| L-VMC855 | L-VMC1055 | L-VMC1165 | L-VMC1270 | L-VMC1375 | L-VMC1475 | L-VMC1585 | L-VMC1685 | ||||
| Travel | Table travel (X axis) | mm | 800 | 1000 | 1100 | 1200 | 1350 | 1400 | 1550 | 1650 | |
| Saddle travel (Y axis) | mm | 550 | 550 | 650 | 700 | 750 | 750 | 850 | 850 | ||
| Headstock travel (Z axis) | mm | 600 | 600 | 600 | 700 | 750 | 750 | 850 | 850 | ||
| Distance from spindle nose to table surface | mm | 125～725 | 100～700 | 125～725 | 100～800 | 120～870 | 120～870 | 120～970 | 120～970 | ||
| Distance from spindle center to column guide surface | mm | 590 | 590 | 707 | 757 | 826 | 826 | 921 | 921 | ||
| Worktable | Table size | mm | 1000*500 | 1100*500 | 1200*600 | 1300*650 | 1500*750 | 1500*750 | 1700*850 | 1700*850 | |
| Max. load (even load-bearing) | kg | 500 | 500 | 800 | 800 | 1300 | 1400 | 1500 | 1600 | ||
| T-slot (number of slots – slot width * spacing) | mm | 5-18*100 | 5-18*100 | 5-18*100 | 5-18*125 | 5-18*150 | 5-18*150 | 5-18*125+2-18*100 | 5-18*125+2-18*100 | ||
| Spindle | Motor power (rated/short time) | kW | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11 | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | |
| Motor torque (rated/short time) | N.m | 35.8/95.5 | 35.8/95.5 | 35.8/95.5 | 35.8/95.5 | 143/191 | 143/191 | 143/191 | 143/191 | ||
| Speed range | r/min | 50~12000 (Directly coupled) | 50~12000 (Directly coupled) | 50~12000 (Directly coupled) | 50~12000 (Directly coupled) | 50~6000 (belt) | 50~6000 (belt) | 50~6000 (belt) | 50~6000 (belt) | ||
| Spindle diameter | mm | φ150 | φ150 | φ150 | φ150 | φ190 | φ190 | φ190 | φ190 | ||
| Spindle taper | / | BT40 | BT40 | BT40 | BT40 | BT50 | BT50 | BT50 | BT50 | ||
| Rivet specifications | / | P40T-I (MAS403) | P40T-I (MAS403) | P40T-I (MAS403) | P40T-I (MAS403) | P50T-I (MAS403) | P50T-I (MAS403) | P50T-I (MAS403) | P50T-I (MAS403) | ||
| Speed | Cutting feed speed range | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | |
| X/Y/Z axis rapid traverse speed | m/min | 48/48/48 | 48/48/48 | 36/36/36 | 36/36/30 | 24/24/20 | 24/24/20 | 24/24/20 | 24/24/20 | ||
| Accuracy | Positioning accuracy (X/Y/Z) GB/T18400.4（Full travel） | mm | 0.008 | 0.008 | 0.01 | 0.01 | 0.015 | 0.015 | 0.015 | 0.015 | |
| Repeatability (X/Y/Z) GB/T18400.4（Full travel） | mm | 0.005 | 0.005 | 0.007 | 0.007 | 0.008 | 0.008 | 0.008 | 0.008 | ||
| Tool magazine | Tool capacity | pcs | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| Max. tool weight | kg | 7 | 7 | 7 | 7 | 15 | 15 | 15 | 15 | ||
| Max. tool length | mm | 250 | 250 | 250 | 250 | 300 | 300 | 300 | 300 | ||
| Max. tool diameter (full /adjacent empty) | mm | Φ75/Φ150 | Φ75/Φ150 | Φ75/Φ150 | Φ75/Φ150 | Φ105/Φ210 | Φ105/Φ210 | Φ105/Φ210 | Φ105/Φ210 | ||
| Others | CNC system | / | Mitsubishi M80VB | Mitsubishi M80VB | Mitsubishi M80VB | Mitsubishi M80VB | FANUC 0i-MF Plus(5) | FANUC 0i-MF Plus(5) | FANUC 0i-MF Plus(5) | FANUC 0i-MF Plus(5) | |
| Air source | Flow | L/min | ≥280(ANR) | ≥280(ANR) | ≥280(ANR) | ≥280(ANR) | ≥280(ANR) | ≥280(ANR) | ≥280(ANR) | ≥280(ANR) | |
| Air pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | ||
| Equipment capacity | KVA | 25 | 25 | 25 | 25 | 35 | 35 | 35 | 35 | ||
| Coolant tank capacity | L | 300 | 300 | 300 | 300 | 400 | 400 | 400 | 400 | ||
| Machine size | mm | 2240*3121*3026 (Corresponding to X*Y*Z axis) | 2500*3150*3032 (Corresponding to X*Y*Z axis) | 2700*3494*2970 (Corresponding to X*Y*Z axis) | 3000*3500*3100 (Corresponding to X*Y*Z axis) | 5050*3680*3440 (with chip conveyor pedal) | 5050*3680*3440 (with chip conveyor pedal) | 5240*4054*3662 (with chip conveyor pedal) | 5240*4054*3662 (with chip conveyor pedal) | ||
| Weight (approx.) | Kg | 4600 | 4700 | 6100 | 6250 | 10500 | 10700 | 11700 | 11900 | ||
Description
Machine Structure

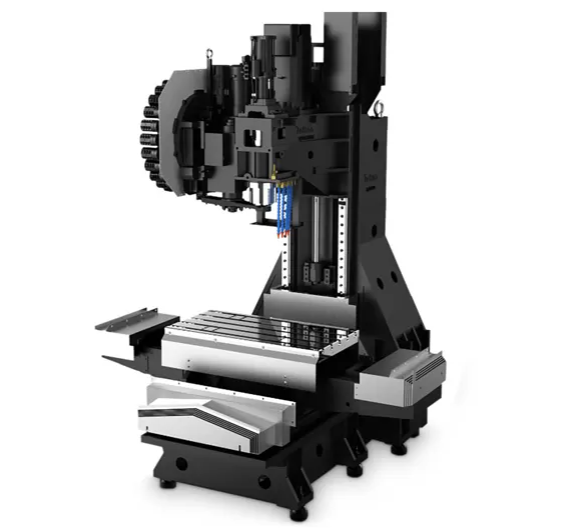

- Fixed column, cross-type sliding table: This design provides solid support and is suitable for high-speed cutting.
- Large, stable base, high-rigidity, wide-span A-shaped column: Reduces vibration and deformation, ensuring high rigidity.
- High-quality resin sand molding, high-strength cast iron: Ensures the machine’s rigidity and stability, reduces deformation, and maintains long-term precision.
Guideways and Ball Screws

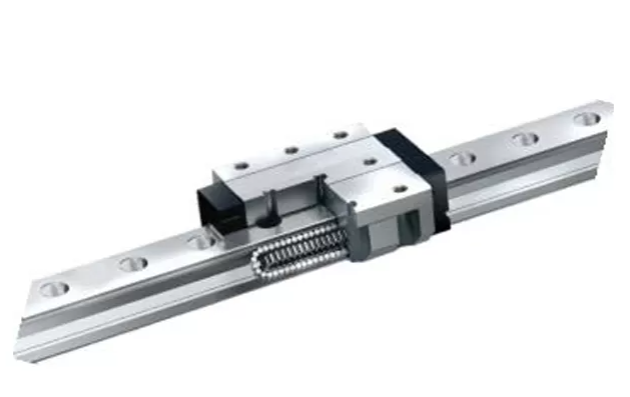

Roller linear guides: High rigidity, low friction, and low noise.
C3-class ball screws, pre-tension structure: Reduces thermal expansion effects, provides more stable precision, and the self-lubricating bearings extend the service life.
Spindle

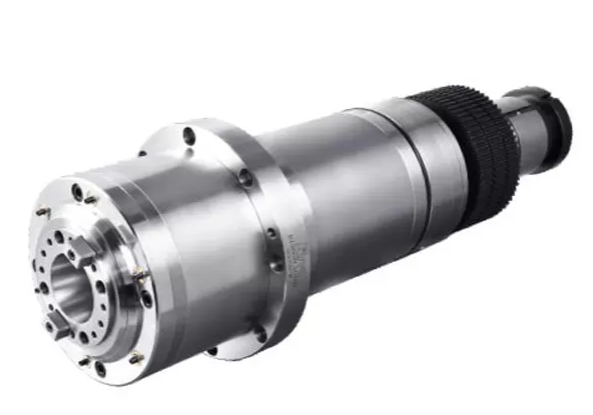

High-speed spindle (BT40-12000r/min): Equipped with a direct connection head, the spindle front features a labyrinth design with an air curtain protection to prevent coolant from entering the spindle bearings.
Tool Magazine

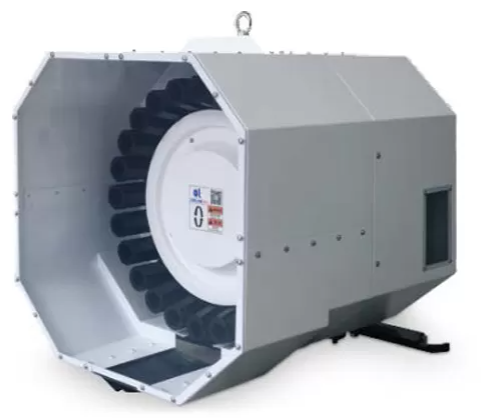

24-pocket arm-type tool magazine: Good stability, reliable tool changes, and ensures continuous.
Applications
Suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.
